Model NO.
DZA4000
Power
Electric
Processing Thickness(mm)
2-30
Warranty
2 Year
Voltage
380V
Heating Plate Power
6 Kw
Power of Rolling Motor
4kw
Dimension(mm)
6000X1850X1100
Processing Length(mm)
2000
Certificate
ISO Ce
Aplicable Material
PE PP PVC PPS Ppn Plastic Sheet
Current
Alternating Current
Model
Dh4000
Type
Automatic Plastic Sheet Welding Rolling Bending
Transport Package
Wooden Box
Specification
ISO CE
Trademark
SUDA
Origin
China(Mainland)
HS Code
85152900
Production Capacity
100/Sets/Months
Application:
Reservoirs, Tanks and Containers, Plastic
Cooling Way:
Air Cooling
Control:
Automatic
Frequency Range:
Low Frequency
Electric Current:
DC
Style:
Vertical
Hot Air Box Plastic Sheet Fusion Top Welding
===Advantage
1. Certificate:We provide CE and ISO certification and official test reports for each machine.
2. Guarrantee Period: 16-24 months free warranty,life Time Guarrantee.
3. Voltage: 220v or 380v is normal voltage, can customized 110v, 240v, 415v, 440v or according requirements.
4. Mode of transportation: Mostly by ship, less than 100kg, recommended by air or express.We can also cooperate with the shipping companies that they can help finish the custom clearance, even if you do not have import rights, you can buy.
5. Delivery time: 1~5sets: 2~3workdays; 6~10sets: 5~7workdays; Above10sets: 8~10workdays, by the way, we have stocks for many products, these products can usually be delivered within 24~48 hours.
6. Free Spare Parts: 1pc metal tool box, 1pc temperature sensor, 1pc screw driver, 1pc spanner, 2pcs blades, 2pcs fasten screws.
7. Electronic accessory:Electronic accessory of well-known brands will ensure the reliability of the machine. More importantly, if you need urgent repairs, you can buy these accessories faster in the local.
===Product Description
1. PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2. Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3.Sectional heating for models of meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4.Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5.Components imported from Japan for control system, with stable properties, lasting and endurable.
===Specification(All the models)
| Model | DH1500 | DH2000 | DH3000 | DH4000 | DH5000 | DH6000 |
| Processing Thickness(mm) | 2-30 | 2-30 | 2-30 | 2-30 | 2-30 | 2-30 |
Processing Length(mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Range of Rolling Diameter(mm) | 250/350 | ≥350 | ||||
Pressure of Air Supply | 6-8kg.f/cm2 | |||||
Rated Voltage | 380V | |||||
Heating Power | 3KW | 3KW | 5KW | 6KW | 9KW | 9KW |
Power of Rolling Motor | 2.5kw | 4KW | 4-5.5KW | 5-5.5KW | ||
Dimensions | 255*185*110 | 305*185*110 | 405*185*110 | 600*185*110 | 700*185*110 | 800*185*110 |
| Process Applicable Materialsing Length(mm) | Plastic Sheet/ board made from PE, PP, PVC, PPS, PPN, PVDF, PPH... | |||||

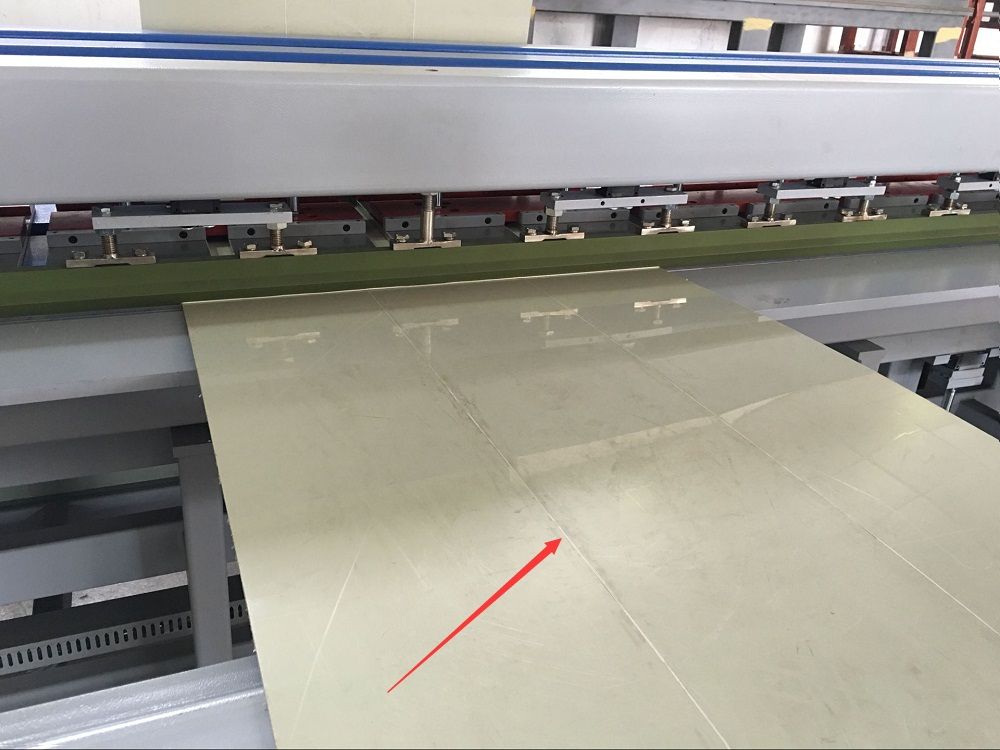

====Machine Photos
===Products can be processing
===Certificate
===Exhibition
===Packaging and delivery
===Company introduction
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.
