Model NO.
Mercedes Benz/Sprinter
Chip
CMOS
Waterproof Grade
IP68
Image Sensor Available
PC7070/PC3089/PC1099/Sony CCD
Camera Degree
170 Degree
Waterproof Level
IP68
TV System
PAL/NTSC
Minimum Illumination
0.1lux
Pixels
720(H) X 480(V)
Resolution
480/600/700TV Lines Optional
Night Vision Distance
35FT
IR Lights
10PCS
Transport Package
Neutral Gift Box, Then Into Carton
Specification
600TV lines CMOS in default
Trademark
CE
Origin
China, Shenzhen
HS Code
8525801390
Production Capacity
30000PCS/Month
Applicable Model:
RV, Van
Shell Material:
ABS Plastic
Display Type:
Reverse Image
Interface:
Aviation
Function:
Night Vision, Waterproof, Shockproof
Definition:
60TV Lines

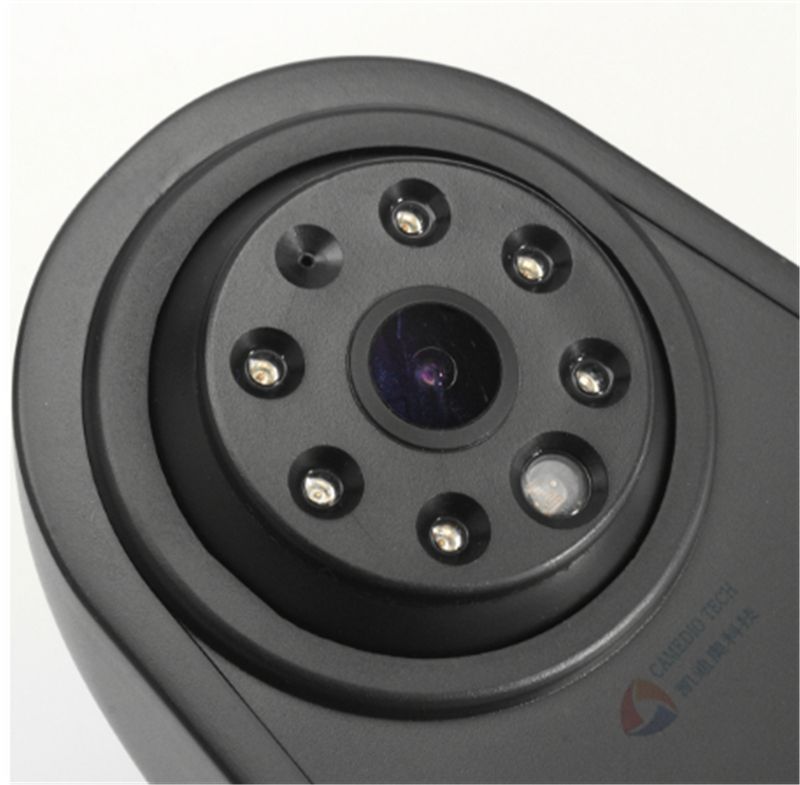

Car Reversing Rear Camera LED Brake Light Camera for Mercedes benz/Sprinter Night Vision function
Features:
a) Waterproof IP67, Wide view angle about 120 degree
b) High definition and IR/LED night vision
c) Dustproof, Compact designed and Easy to be installed in your car
Specification:
| Image sensor | 1/3" Sony Color CCD/ 1/4 color CMOS optional |
| Signal system | NTSC/PAL system optional |
| Horizontal resolution | 480/600/700 TV lines optional |
| Effective pixels | 752x494 |
| Lens viewing angle | 170 degree |
| Minimum illumination | <0.1LUX |
| IP Rate | IP68 |
| Video output | RCA, 1.0Vp - p,75ohm |
| Image pipeline features | Auto exposure,AWB,AGC,Auto flicker detection and cancellation |
| Image Reverse | Left-Right mirror |
| White Balance | Automatically |
| AGC&BLC | Automatically |
| S/N ratio | Better than 48 dB(AGC OFF) |
| Shutter speed | 1 / 60 - 1 / 15,000sec |
| Installation | hung external |
| Power supply | DC 12V |
| Current consumption | 130mA |
| Material | ABS plastic |
| Remarks | Color/Warterproof/Shockproof |
| Operating temperature | -20 to 70 degree Celsius,RH95% |
| Storage Temperature | -30 to 60 degree Celsius,RH95% |
