Model NO.
DF-8275TXN-766RX4 #2
Interface
RCA
Function
Night Vision, Waterproof, Dustproof, Shockproof
Definition
700tvl
Chip
CCD
Waterproof Grade
IP69K
Transport Package
Cartoon Box
Specification
106(W) x 75(H) x 70.4(D) mm (without mounting)
Trademark
Veise
Origin
Guangzhou, China
HS Code
8544491900
Production Capacity
50000/Month
After-sales Service:
1year
Warranty:
1year
Applicable Model:
Car, Truck, Agricultural Vehicles, Engineering Vehicles, RV, Harvester, Corn Machine
Shell Material:
ABS Plastic
Probe Number:
1
Display Type:
Reverse Image

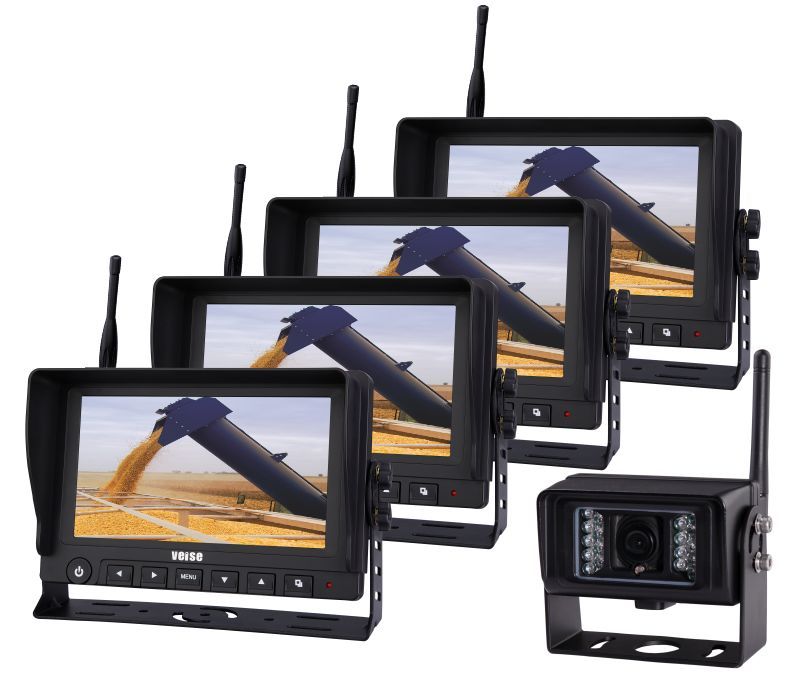

IP69K Multi-Monitor Wireless Camera System for Agriculture Machinery
Model:DF-8275TXN-766RX4
Multi-Monitors Wireless Camera
Support 1~4 wireless monitors display
Nitrogen-filled, anti-fog, waterproof IP69K
wireless transmission distance 100 meters
Automotive industrial grade DSP
Heat-dissipating aluminum alloy shell
Built-in IR-CUT filter
DC8~32V operating voltage
7-inch wireless monitor (1~4 optional)
Support 1T1R 1T2R 1T3R 1T4R
Multi-frequency automatic code matching
NORMAL, MIRROR, FLIP and MIR-FLIP viewing
Automotive industrial grade DSP
U-shaped + bilateral fastening support
reverse polarity, LED constant current,load dump pulse voltage suppression protection
DC8~32V operating voltage
Support 1~4 wireless monitors display
Nitrogen-filled, anti-fog, waterproof IP69K
wireless transmission distance 100 meters
Automotive industrial grade DSP
Heat-dissipating aluminum alloy shell
Built-in IR-CUT filter
DC8~32V operating voltage
7-inch wireless monitor (1~4 optional)
Support 1T1R 1T2R 1T3R 1T4R
Multi-frequency automatic code matching
NORMAL, MIRROR, FLIP and MIR-FLIP viewing
Automotive industrial grade DSP
U-shaped + bilateral fastening support
reverse polarity, LED constant current,load dump pulse voltage suppression protection
DC8~32V operating voltage
Features
2.4GHz Digital Wireless Camera System with 1 wireless camera and 1~4 wireless monitors. a new digital wireless system where a single wireless camera can connect to up to 4 wireless monitors displayed at the same time. a single wireless camera can be matched with 4 wireless monitors, suitable for agricultural tractors, cotton pickers and mining carts ets.
Multi-Monitors Wireless Camera
Support 1~4 wireless monitors display at the same time
Nitrogen filling anti-fogging, waterproof IP69K (patented waterproof testing equipment)
Automotive industry grade DSP
Heat-dissipating aluminum alloy case
Built-in IR-CUT filter corrects the color cast during the day and improves the brightness at night
DC8~32V operating voltage
7-inch digital screen wireless monitor
Built-in 2.4GHz digital wireless video signal receiver
Support 1T1R 1T2R 1T3R 1T4R
Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 100 meters
Automotive industrial grade -40°~85° DSP
Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
The keys adopt high-precision laser engraving and white characters are beautiful and clear and easy to see
The bracket is made of anti-rust metal material, U-shaped + bilateral fastening anti-seismic design
800RGBX480 resolution and 400cd/m2 high brightness image is clear
Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design
DC8~32V operating voltage
Multi-Monitors Wireless Camera
Support 1~4 wireless monitors display at the same time
Nitrogen filling anti-fogging, waterproof IP69K (patented waterproof testing equipment)
Automotive industry grade DSP
Heat-dissipating aluminum alloy case
Built-in IR-CUT filter corrects the color cast during the day and improves the brightness at night
DC8~32V operating voltage
7-inch digital screen wireless monitor
Built-in 2.4GHz digital wireless video signal receiver
Support 1T1R 1T2R 1T3R 1T4R
Multi-frequency hopping frequency automatic code matching, good anti-channeling interference, open transmission distance 100 meters
Automotive industrial grade -40°~85° DSP
Independent design appearance patent, the shell is made of ABS+PC material, which has the characteristics of high temperature resistance
The keys adopt high-precision laser engraving and white characters are beautiful and clear and easy to see
The bracket is made of anti-rust metal material, U-shaped + bilateral fastening anti-seismic design
800RGBX480 resolution and 400cd/m2 high brightness image is clear
Load dump pulse voltage DC24V+174V (350ms) designed to protect the vehicle from transient pulse damage
Built-in external power supply reverse polarity protection, LED thermal response, constant current and constant voltage protection, service life circuit design
DC8~32V operating voltage
Parameter
| System model | DF-8275TXP-766RX4 |
| Wireless LCD Monitor (SP-766RX) | |
| Color LCD screen | 7-inch LCD screen |
| Wireless reception | Built-in 2.4G wireless receiver with 2 channels |
| Picture mode | Single screen switching + 2 split |
| working frequency | 2400~2483.5MHZ |
| Receiving sensitivity | ≤-86 dB |
| Receiving distance | Open ≤100m |
| Multi-frequency automatic frequency hopping channel code ion | 80 |
| Resolution | 800(H) X 480(V)dot |
| Color system | PAL/NTSC (AUTO) |
| Brightness(cd/m2) | 450 |
| Load dump | DC14+87V(Td400mS) 5pulses |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Working temperature | -20ºC to +70ºC |
| Storage temperature | -30ºC to +80ºC |
| Working voltage | DC8-32V |
| Dimensions | (L x W x T) (218 x 149 x 82mm) |
| Wireless waterproof camera(DF-8275TX-SFS) | |
| Image sensor | 1/3.7 Color DSP |
| Wireless transmission | Built-in 2.4G digital wireless transmitter |
| Transmit power | 18dBm |
| Launch distance | Open area≤100m |
| Resolution | 600 lines |
| Effective pixels | 960(H) X 480(V) |
| Viewing angle | 130° |
| Infrared distance | 15 meters |
| Shell material | Aluminum alloy |
| Waterproof rating | IP69K |
| Working voltage | DC8-32V |
| Working temperature | -20ºC to +60ºC |
| Storage temperature | -30ºC to +70ºC |
| Vibration resistance level | 5G (conforms to GB-T2423056-2006 standard) |
| Dimensions | 106(W) x 75(H) x 70.4(D) mm |
Products Show
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
