Model NO.
WMR-B15
Definition
580 TV Lines
Chip
CMOS
Waterproof Grade
IP68
Night Vision
LED/ IR Lamps as Option
Cable
BMW Pin Connector as Option
Transport Package
Wemaer, or Neutral Box
Specification
ROHS/CE/E-Mark/FCC
Trademark
WEMAER, or Neutral
Origin
China
HS Code
8525801390
Production Capacity
150000/Month
Warranty:
12 Months
Applicable Model:
Car
Shell Material:
ABS Plastic
Display Type:
Reverse Image
Interface:
RCA
Function:
Night Vision, Waterproof, Dustproof, Shockproof
Waterproof Night Vision Car Rearview Camera for Benz C Class
Model : WMR-B15
1. Features:
1) Smart size for hidden installation.
2) 1/3" CMOS

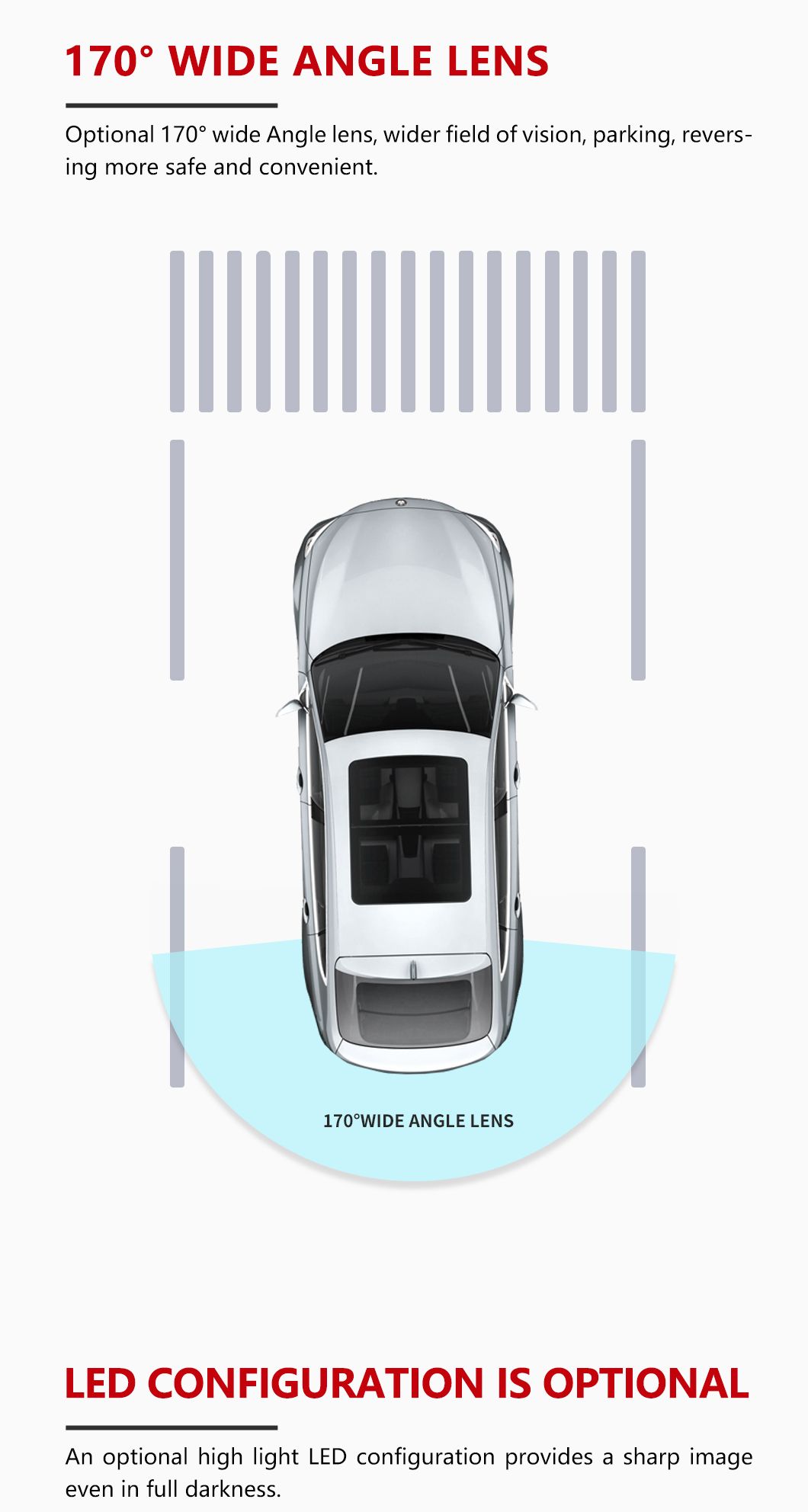

3) Lens angle 170 degrees
4) Effective pixels: 580 TV line
5) Reversing reference line as option
6) Night vision, and high definition
7) Day / Night sensor for automatic adjustment.
8) Color image day &night
9) Waterproof and dust-proof IP68
10) ROHS/CE/E-MARK/FCC available
2. Specification:
3. Accessories:
2 x Screws
1 x Car Camera
1 x Video Cable
1 x Power Cable
1 x User Manual
****************************************WEMAER Family***************************************************
Model : WMR-B15
1. Features:
1) Smart size for hidden installation.
2) 1/3" CMOS
3) Lens angle 170 degrees
4) Effective pixels: 580 TV line
5) Reversing reference line as option
6) Night vision, and high definition
7) Day / Night sensor for automatic adjustment.
8) Color image day &night
9) Waterproof and dust-proof IP68
10) ROHS/CE/E-MARK/FCC available
2. Specification:
| Item | Spec |
| Image Sensor | 1/3" CMOS |
| Lens Angle | 170 degree |
| Effective Pixels | 1280(H)*720(V) |
| Resolution | 580 TV lines |
| Sensing Area | 3.5964*2.7084mm |
| S/N Ratio | > 48dB |
| Minimum Illumination | < 1 lux |
| White Balance | Auto |
| IR LEDs | No |
| Video Color | Colorful |
| Video Output | 1.0Vp-p, 75Ω |
| Electronic Shutter | 1/60S-1/5000S |
| TV System | NTSC/PAL |
| Sync System | Internal |
| Waterproof Class | IP68 |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Warranty | 12 months |
3. Accessories:
2 x Screws
1 x Car Camera
1 x Video Cable
1 x Power Cable
1 x User Manual
