Features

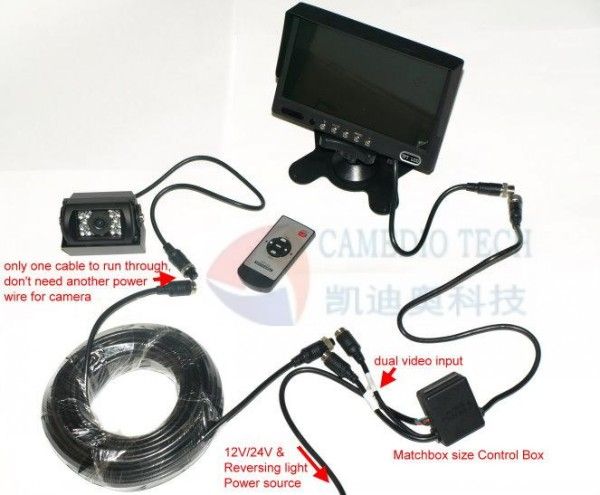

1) With reverse polarity protect, Sunshade, Separately supply DC12V power to each camera, AV2/AV3 with trigger wires.
2) Reversing image delay time 0~15s, with guide line.
3) Mirror/normal image, menu keep Normal image whatever Mirror/Normal image.
4) Audio optional,S jack/Aviation connector optional,Digital screen optional.
Specification:
| Screen size | 7 inch digital screen | |||||||
| Resolution | 800RGB(H)x480(V),PAL/NTSC/Auto | |||||||
| OSD menu function | Reversing image delay time 0~10s,mirror/normal image,multi-language,with guide line | |||||||
| Video inputs | Three video inputs(four optional) | |||||||
| Brightness/contrast | 450cd/m²/500:1 | |||||||
| Operating temperature | -20ºC~70ºC | |||||||
| Operating voltage | DC12v-36v | |||||||
| Features | Reverse polarity,protection;separately supply DC 12v power to each camera;AV2/AV3 with trigger wires,menu keep normal; sunshade | |||||||
| Optional | Audio;S jack;aviation;RCA connector;bracket optional | |||||||
| Dimension | (L)172x(W)123x(T)27mm,(L)172x(W)125x(T)20mm, (L)174x(W)114x(T)24mm,(L)172x(W)125x(T)54mm | |||||||
Feature:
Screen Size: 7 inch (16:9 and 4:3)
Viewing Angle: L/R/U/D:60/60/40/60degree
Brightness:450cd/m2
Power Supply:DC12V~32V
Resolution:800(W)XRGBX480(H)
Video:Three way video input, no signal show blue
System:PAL/NTSC
Operation Mode:Remote control + Keystroke
Operation Temperature:-20degree~+70degree
Storage Temperature:-20degree ~+80degree
OSD Language:English, Portuguese, Spanish, Deutsch, French, Italian, Russian and Chinese
Special Function:Sunshade
Dimension:(L)174X(W114X(H)25mm
