Model NO.
+86-13863731917
Landing Gear
Jost Brand
Transport Package
Nake
Specification
Can choose free
Trademark
CHYG
Origin
China
HS Code
87164000
Production Capacity
9000/Year
Certificate:
ISO9001, CCC, SGS/BV/TUV
Condition:
New
Independent Suspension Type:
Leaf Spring Suspension
Use:
Excavator Transport
Kingpin:
2" Bolt in Type
Floor:
5mm Checked Plate
Vehicle Description | |||
Overall dimensions(mm) | 13000*2500*1750 | Loading capacity (kg) | 100000 |
Tare weight(kg) | 12000 | Max Payload(kg) | 60000 |
Chassis Description | |||
Tire specification | 12.00R20 | Axle weight(kg) | 13000 |
Tire quantity | 12 | Number of axles | 3,4,5 |
Wheelbase(mm) | 7650 + 1310 + 1310 | Rear track base(mm) | 1840/1840/1840 |
Suspension | Common mechanical | King Pin | 50# (2'') or 90#(3.5'') |
Spring plate | /10/10/10,-/8/8/8 | Main Beam | Height: 500mm Top plate: 25mm Middle Plate: 12mm; Bottom Plate is 30mm; Material: Q345B Steel |
Side Beam | 25# U Steel | Cross beam | 14# channel steel |
Rim | 9.0-22.5 12PCS | Landing gear | C200T Two Speed |
Features

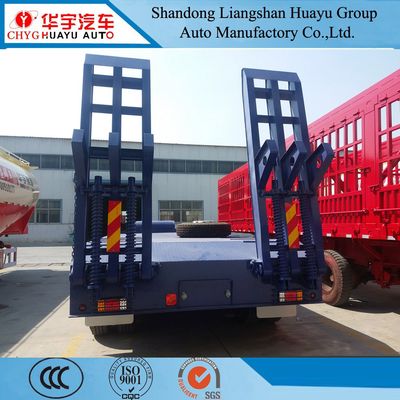

1.The low flat-panel semi-trailer has flat, concave beam and tyre exposed structure 3 types, longitudinal beam adopts flat type or gooseneck. Its chassis is a ladder type, for i-section girder section, has high rigidity, high strength, etc.
2. The principal plane of frame loading is low, to ensure the stability of transportation, suitable for carrying all kinds of engineering machineries, heavy equipments and steel products, etc.
3.Adopting three-axis balance type, biaxial or rigid suspension balance type, mass balance block between two steel plate springs together, can make their deflection changes the same and the front axle force equilibrium, etc.
4.These products are suitable for a variety of mechanical equipments, large objects, highway construction equipments, large tanks, machine of transportations of all kinds of steel plant equipments, mutifunctional , efficient and quick. The whole truck adopts the advanced computer aided design software, optimized the design flexible, according to customers requirements design frame bearing surfaces to meet all kinds of special cargos transportation.
2. The principal plane of frame loading is low, to ensure the stability of transportation, suitable for carrying all kinds of engineering machineries, heavy equipments and steel products, etc.
3.Adopting three-axis balance type, biaxial or rigid suspension balance type, mass balance block between two steel plate springs together, can make their deflection changes the same and the front axle force equilibrium, etc.
4.These products are suitable for a variety of mechanical equipments, large objects, highway construction equipments, large tanks, machine of transportations of all kinds of steel plant equipments, mutifunctional , efficient and quick. The whole truck adopts the advanced computer aided design software, optimized the design flexible, according to customers requirements design frame bearing surfaces to meet all kinds of special cargos transportation.
The shipping item :
1. the length less than 13m ,the width less than 2.5m can be shipping by 40HQ containers
2.The lenght of the lowbed semi trailer more than 13 meters must be chose bulk cargo ship or roro ship
