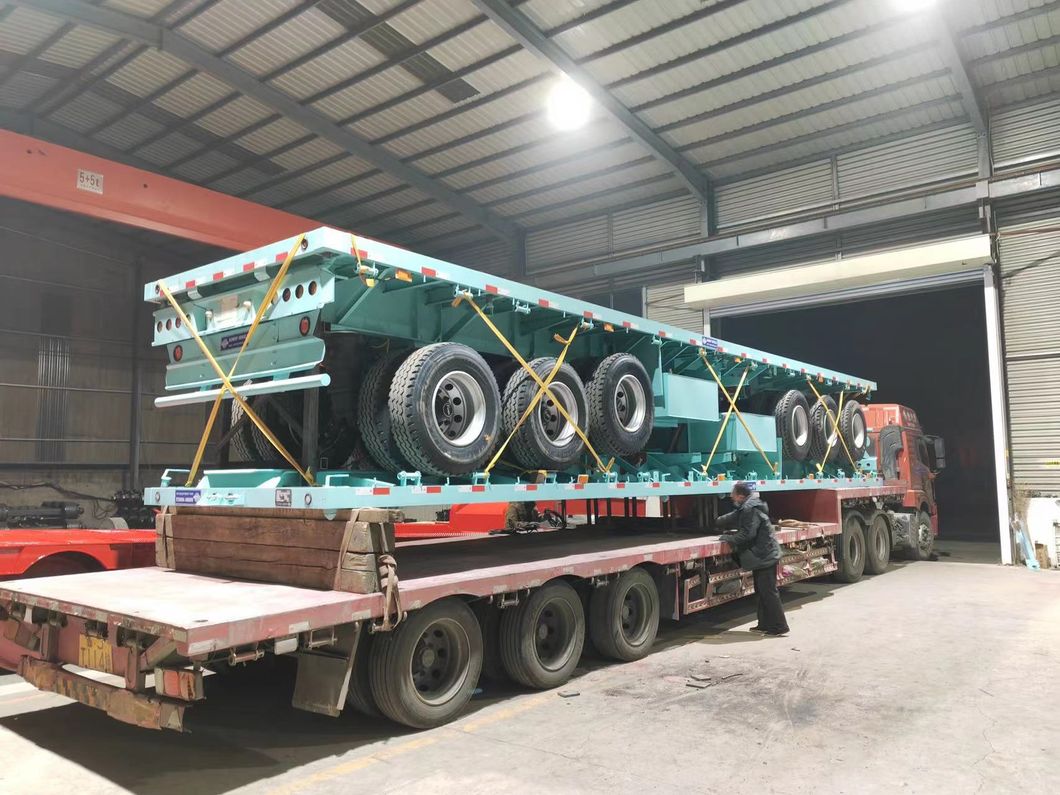

LUCKIN VEHCLE supply 3/4 Axles 40 Feet Flatbed Container Semi Trailers, which are very popular and competitive with their heavy capacity and durable quality. Except loading 20 inches and 40 inches containers, Flatbed Semi Trailer can also transport bulk goods, such like bagged cement, steel, wood, ect. In order to take care of the diversified uses, we equip with sufficient rope hooks and rope tighteners on both sides of our flatbed and drop side trailers.
With more than 15 years' exporting experiences, LUCKIN VEHCLE has exported more than 800 units flatbed trailers to Africa and Southeast Asia countries based on our rich design experiences and durable quality and reputations. We are always on the way to help your customers gain suitable trailers and reliable wealth accumulations.
| Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | |
| 20ft | 2 | 40000 | 8 | 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) | |
| 40ft 45ft 48ft 53ft | 3 | 60000 | 12 | ||
| 40ft 45ft 48ft 53ft | 4 | 75000 | 16 | ||
| Manufacture | Shandong ST Trailer Co.,Ltd. | ||||
| Leaf Spring | 10 pieces | ||||
| Axle | 13/16/18 T , Fuwa / BPW | ||||
| Suspension | Air Suspension or Mechanical Suspension | ||||
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded | ||||
| Brake System | Dual line braking system with automatic braking system/chambers | ||||
| Brake Air Chamber | Double Model | ||||
| Kingpin | 2' or 3.5' Interchangeable | ||||
| Landing gear | 28T loading capacity with 80T static lifting capacity. | ||||
| Platform | 4-6 mm diamond steel plate | ||||
| Electrical System | 24V, 7core socket, lights according to European standards. | ||||
| Mainbeam Size | Upper plate | 14mm | |||
| Lower plate | 16mm | ||||
| Middle plate | 8 mm | ||||
| Height | 500-520mm | ||||
| Tool Box | 1 box of standard tools | ||||
| Spare tire carrier | 2 sets | ||||
| Color | According to customer's requirement. | ||||
| Painting | Three coats painting; Any color will be available | ||||
| Other Specifications | The frame can be flat plate style and skeleton style.Twist lock settings installed 12 pics, 8pics, and 4pcs to satisfy the containers with different sizes for convince. | ||||
| Application | For 2x20ft or 1x40ft containers transport | ||||
1.Mature Welding Process: LUCKIN VEHCLE adopts automatic submerged arc welding method to weld the main beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.
2. Reliable Materials: We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. Besides, all the main parts, used in our trailers, must be processed with advanced equipment and have good reputations in the market.
3. Mature Design and Manufacture: We would like to design the trailer according to our customers' needs and special using conditions. Also, we would consider more than what them based on their final usage, and provide customers with reasonable suggestions when they are hesitating.
4. Rich Exporting Experience: More than 20 years of experiences in producing and exporting trailers and other goods, we have helped hundreds of customers in more than 35 countries in Africa and Southeast Asia.
5. Quality Assurance:We would offer 2 years' warranty for chassis frames of our trailers and also be responsible for the damage of parts during normal use.
6. Customized Service: We support customized designing and production according to customers' different needs and different road situations to match your usage in local.
1. Who are we?
Answer: LUCKIN VEHCLE is a group company; we have three trailer factories in Shandong and one trading company in Qingdao. We are focus on semi-trailers, trucks and parts.
2. Why choose us
Answer: 1) We have more than 15years experience in the trailer manufacturing. LUCKIN VEHCLE has got high reputations in China and oversea countries.
2) We have more than 20 engineers to design the kinds of trailers according to the detailed requirements and needs from customers.
3) We had exported thousands of trailers to Africa, Middle East, Asia, Australia, South America since 2005.
