Model NO.
LHY9403LB
Independent Suspension Type
Leaf Spring Suspension
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Use
Cargo/Container Transport
Axle
BPW/Fuwa/Hj Famouse Brand Optional
Tire
12r22.5/12.00r20 Optional
Kingpin
2"/3.5′′ Bolt-in Kingpin
Landing Gear
Jost Brand Two-Speed
Light
LED
Spare Tire
1PCS
Tool
1set
Payload
50-80t
Transport Package
Load by Container
Specification
13*2.0*2.1m
Trademark
HYD
Origin
China Shandong
HS Code
8716900000
Production Capacity
12000set/Year
Type:
Semi-Trailer
Load Capacity:
60t
Certification:
ISO9001, CCC, SGS/BV/TUV
Wheel Base:
1310
Tread:
1840mm
Grade:
Heavy Duty

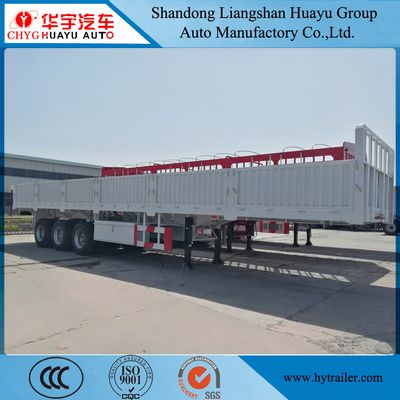

40 ton 3 axles Side Wall/Side Board/Side Drop High Bed Semi Trailer for Container and Cargo transport
Trailer Details show:
Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.chassis reversal
D.shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag
H.Dust-free painting
Specifacition
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray and one stack of 3 sets to reduce shipping fee.
Take apart , one 40HQ to load 2 sets
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Trailer Details show:
Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.chassis reversal
D.shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag
H.Dust-free painting
Specifacition
| Tare weight | 8000kg |
| Size | 12500mm*2500mm*270mm |
| Payload | 50T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | 16#/18# channel steel(Q235) |
| Cross member | 10#/w shape channel steel(Q235) |
| Floor | 3mm checkered plate |
| Side wall | height 600mm thickness 1.5-2.5mm |
| Front board | 1500mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 jingu brand 12pcs |
| Kingpin | 2" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Twist lock | 12pcs |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray and one stack of 3 sets to reduce shipping fee.
Take apart , one 40HQ to load 2 sets
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2. 40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Welcome your inquiry and visit our factory.
