40T 50 60tons Side Wall Semi Trailer for hot sale
Features:
Side Wall Semi Trailer
1.Side wall semi trailer is usually just called sidewall trailer or side wall semi trailer for short. The only difference between the side wall semi trailer and flatbed semi trailer is the side wall or side boards. Flatbed semi trailers don't have the side boards, while side wall semi trailers have them.
2.The side wall can be low or high depending on customer's needs. The side boards are usually disassembled prior shipping and stacked on top of each other to save space during transportation.
3.On the cargo side wall semi trailer, the frame is the main component used to support the load and install traction pins, suspension, landing gear and other devices.
4.The side beams are generally channel steel or bending parts. There will be more side beams for for light-body trailers because the requirements for strength are not too high. The support beam is the through beam, which are mostly W beams now.
We are manufacturer.The trailer model we show is standard product; meanwhile, all our trailers can be customized according to your unique request.
Specification of Side Wall Semi Trailer| 2 Axles | 3 Axles | 4 Axles |
| Brand: Vehicle Master | Brand: Vehicle Master | Brand: Vehicle Master |
| Loading Capacity: 30-60T | Loading Capacity: 30-80T | Loading Capacity: 40-100T |
| Gooseneck Type: Optional | Gooseneck Type: Optional | Gooseneck Type: Optional |
| Main Beam | ||
| Material: Q345/T700 | Main Beam Material: Q345/T700 | Main Beam Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 18mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 12mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 20mm |
| Main Beam Height: 500mm | Main Beam Height: 500mm | Main Beam Height: 500mm |
| Product Size | ||
| L*W: 13000mm*2550mm | L*W: 13000mm*2550mm | L*W: 13000mm*2550mm |
| Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm | Side Wall Height: 600mm-1700mm |
| Axle | ||
| 2 Axles *13 Ton VEHICLE MASTER/FUWA/BPW/Other | 3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other | 4 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other |
| Tire | ||
| 12R22.5 (8 Pieces) Linglong/Triangle/Double-Coin/ Other Brand | 12R22.5 (12 Pieces) Linglong/Triangle/Double Coin/ Other Brand | 12R22.5 (16 Pieces) Linglong/Triangle/Double-Coin/ Other Brand |
| Rim | ||
| 9.00*22.5 (8 Pieces) Steel/Aluminum | 9.0*22.5 (12 Pieces) Steel/Aluminum | 9.00*22.5 (16 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs |
| King Pin | ||
| #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand | #50(2")/#90(3.5"), JOST/Other Brand |
| Landing Gear | ||
| 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand | 28 Tons Two Speed JOST/Other Brand |
| Vehicle Painting | ||
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
1.You can choose different materials and shapes according to your requirements, which can be customized.
2.Steel frames are built with top-class hot rolled or rolled steel plate, which ensure Beam and frame's Toughness and strength. 3.Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding.
4.HYUAN Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.
Some customers are bulk freighter or ro-ro ships. TITAN sideboards trailer will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.
We always use the best packaging solution to decrease transportation cost.
Hengyuan Group Is an export qualification enterprise of the ministry of commerce of China.We specialize in producing all kinds of trailers, semi-trailers, tractors, dump trucks, engineering machinery and product parts.
Major markets:Central Asia (Kazakhstan, Uzbekistan, etc.) Southeast Asia (Philippines, Vietnam, etc.) Africa (Nigeria, Congo, etc.) South America (Peru, Chile, etc.)
Our vision: to be an excellent partner of a world-renowned company.
Our mission: to share benefits and happiness with all partners.
We are better because we are professional, focused and focused.
Industry advantage

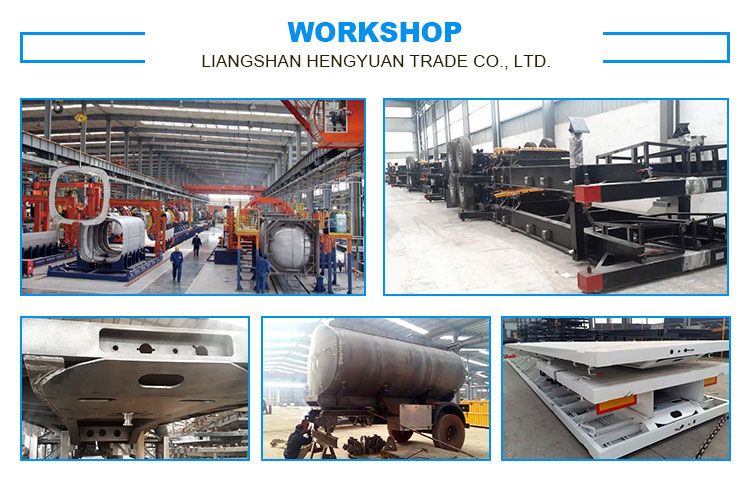

We have our own semi-trailer factory, tank trailer factory, and axle and suspension factory, and steel processing factory to ensure the best quality from the very beginning.
Our Advantages:
We have a high standard of mechanical equipment and automation equipment, strong r&d and service team, the company professional for customer demand to provide feasible Suggestions and solutions, dedicated to provide each customer with the best quality product transportation.
1. What kind of payment method can I choose?
(1) L/C 100% at sight
(2) T/T (30% as deposit before production and 70% as balance before shippment)
(3) Other payment methods can be negotiated
2. What is the shipping method and time?
Ro-ro, deck, frame, shipping time depends on shipping company
3. How long does it take to ship after the order is placed?
Within 40 working days
4. Are you a factory or a distributor?
We are a factory with 15 years of export experience
5. How to guarantee truck quality?
There is a one-year warranty, and all parts are inspected.
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
