Model NO.
LHY940874D
Independent Suspension Type
Multi-link Type
Shape
Flatbed
Axle Number
3
Tire Number
12PCS or 12+1PCS
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Suspension
Leaf Spring Suspension/Air Suspension
Axles
BPW/Fuwa Brand
Landing Legs
Jost
Brake System
Wabco Braking Valve
Other Design
OEM Customized Design
Transport Package
in Nude, by Bulk Ship/Roro Ship
Specification
By Customer Needs
Trademark
HYD
Origin
Liangshan Jining China
HS Code
87163990
Production Capacity
800 Units Per Month
Type:
Semi-Trailer
Load Capacity:
80-100tons
Certification:
CE, ISO9001, CCC, SGS/BV
Wheel Base:
8000-9000mm
Tread:
1840mm
Grade:
Heavy Duty

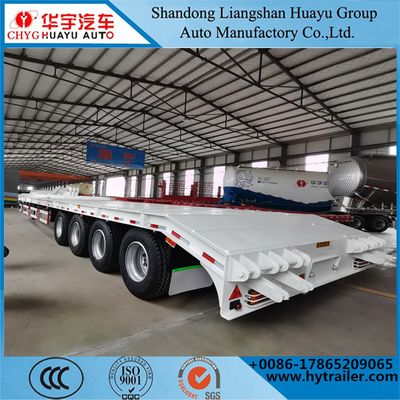

Manufactory 4 Axles 80-100 Tons Low Bed Lowbed Lowboy Loader Drop Deck Heavy Duty Dolly Semi Trailer For Sale
Specification:
More Detials of product Show:
Packing & Shipping:
Product Features
Our Advantage
.Sinotruk's Strategic Partner, Manufacturer direct sale,quality guaranteed, low price.
ShanDong Liangshan HuaYu Group Automobile Manufacture Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement.
The company engaged in designing, researching manufacturing and selling. The company covers above 800 acres, with total assets of RMB 560,000,000.00 Yuan and factory building areas of 236,000 square meters. Now there are more than 2000 staff, therein 180 senior technical engineers. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians. Our company is a special purpose motor vehicle manufacturing enterprise which has large scale of production, perfect Quality Management System in domestic.
As a trailer professional manufacturer for many years , we accepet meet any kinds of semi trailer customized requirement. The trailer payload from 20 ton up to 300 ton to meet different road transportation demand,and every one of them an innovative and efficient transport solution with an excellent price / quality ratio.
The most important thing to us is the trust of our customers and principals.
Specification:| 3 AXLE LOW BED SEMI TRAILER | |||||||||||||
| DIMENSIONS | |||||||||||||
| Tare weight | 12000kg | Payload | 80000 kg | ||||||||||
| Overall length | 13000mm | Overall width | 3000mm | Overall height | 1250mm | ||||||||
| SPECIFICATION | |||||||||||||
| Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.top plate 20mm.bottom plate 20mm.middle plate 14mm.height 500mm | ||||||||||||
| Axle | Number | 4 | Brand | Optional upon choice | Capacity | 16T | |||||||
| Suspension | Mechanical suspension Or air suspension | | |||||||||||
| Side Wall | With 500mm height | ||||||||||||
| Leaf spring | Leaf spring or air bag | ||||||||||||
| Floor | checkered plate | ||||||||||||
| Tire | 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional | ||||||||||||
| Wheel rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice | ||||||||||||
| Kingpin | 2''/3.5 ''bolt-in king pin | ||||||||||||
| Landing gear | JOST brand two-speed,manual operating ,heavy duty landing gear | ||||||||||||
| Ladder | Mechanical ladder or Hydraulic ladder | ||||||||||||
| Vehicular applications | Machine transport | ||||||||||||
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||||||||||||
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | ||||||||||||
| Accessories | One standard tool box | ||||||||||||

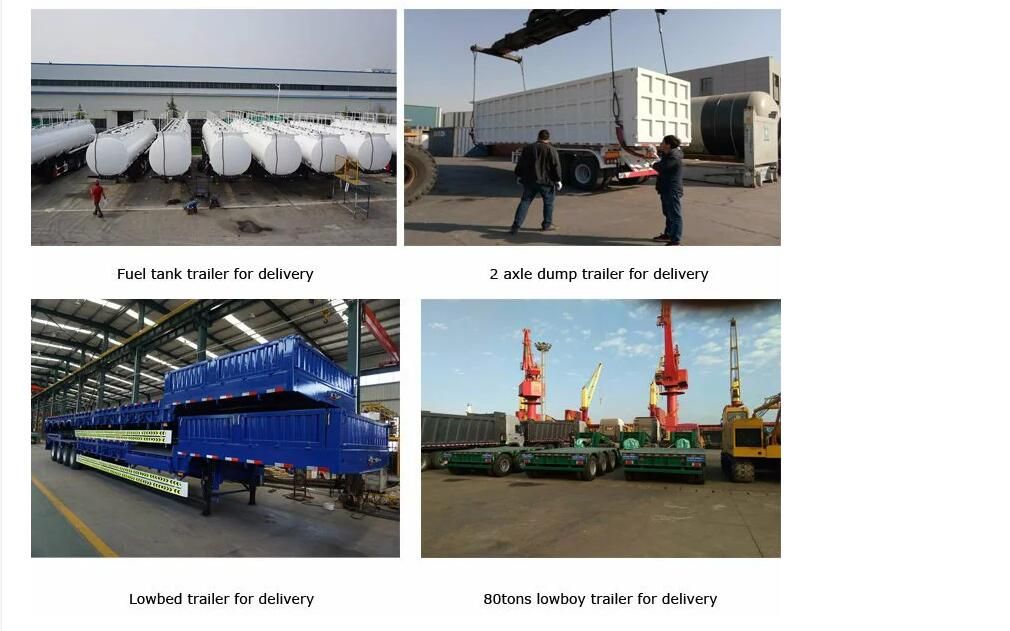

Packing & Shipping:
Product Features- Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
- Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
- Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
- Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
- Tool Box: Large capacity water-proof detachable tool box.
- Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
- Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.
- Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.
Our Advantage.Sinotruk's Strategic Partner, Manufacturer direct sale,quality guaranteed, low price.
ShanDong Liangshan HuaYu Group Automobile Manufacture Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement.
The company engaged in designing, researching manufacturing and selling. The company covers above 800 acres, with total assets of RMB 560,000,000.00 Yuan and factory building areas of 236,000 square meters. Now there are more than 2000 staff, therein 180 senior technical engineers. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians. Our company is a special purpose motor vehicle manufacturing enterprise which has large scale of production, perfect Quality Management System in domestic.
As a trailer professional manufacturer for many years , we accepet meet any kinds of semi trailer customized requirement. The trailer payload from 20 ton up to 300 ton to meet different road transportation demand,and every one of them an innovative and efficient transport solution with an excellent price / quality ratio.
The most important thing to us is the trust of our customers and principals.
