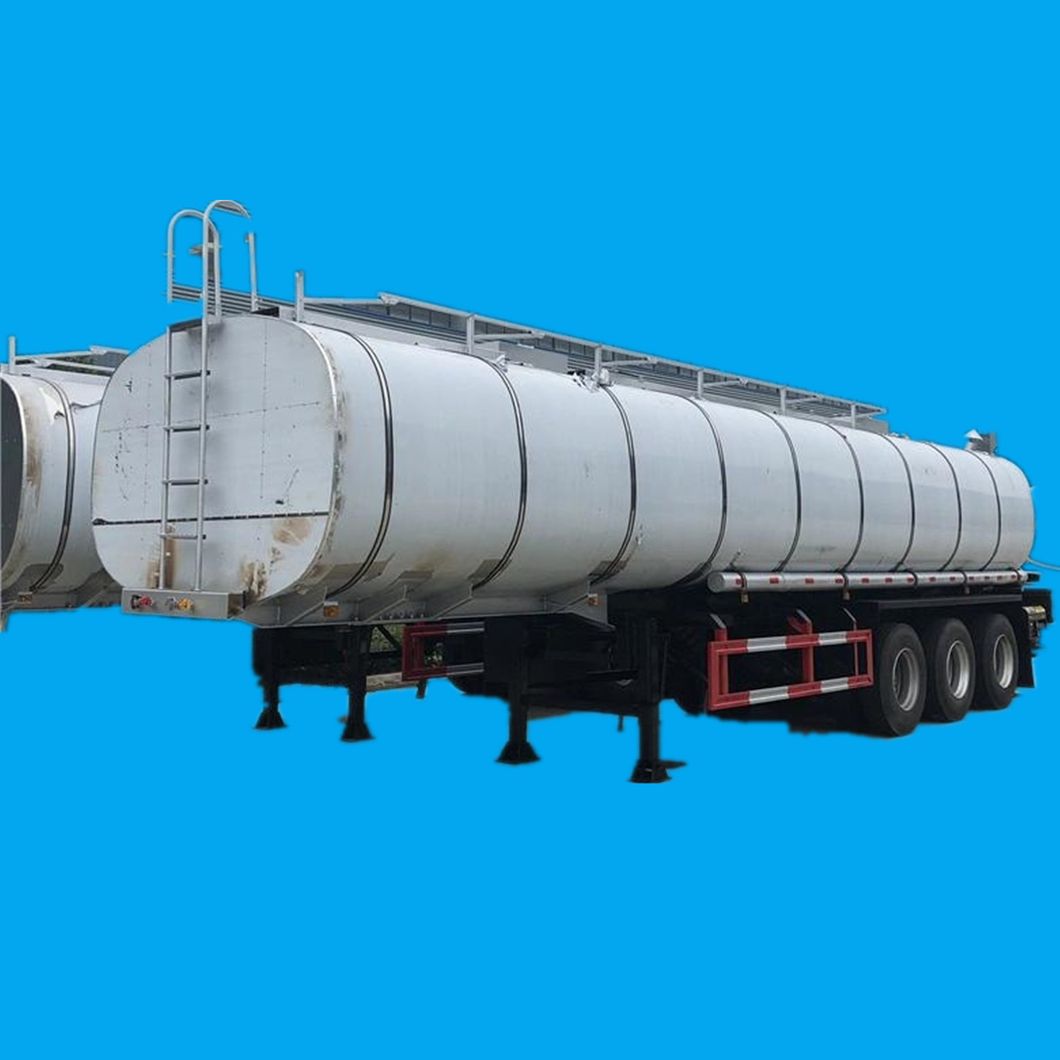

40 -50T 3Axles Heated Bitument Hot Crude Oil Tanker Asphalt Bitumen Tank Trailer with 2 Burners Stinaless Wrapped Insulation
45,000 liters 3 axle bitumen insulation tank semi-trailer
Tank volume: 45,000 liters
Tanker material: Carbon steel-Q235A
Tank medium: Bitumen,liquid asphalt,coal tar oil,crude oil
No.of axle: 3 axle BPW or FUWA
Heating system: burner heating
Insulation layer: Rock wool 80mm and outer stainless steel cold plate
40, 000-50, 000 Liters Heated Bitument Tanker Asphalt Bitumen Tank for Sale
TEM | UNIT | PARAMETER | |
Vehicle |
| Bitumen tank trailer | |
Overall dimensions | mm | 12000-13500x2500x3900 | |
Asphalt tank dimention |
| 10000-11000x2400x1900 /ellipse | |
Insulating layer |
| 80 | |
Tank Inside carbon steel thickness | mm | 5 | |
Tank outdise stainless steel thickness | mm | 1 | |
Asphalt tank capacity | m3 | 40 | |
GVW | kg | Appro×55000 | |
Curb weight |
| Appro×15000 | |
Payload |
| Appro×40000 | |
Wheel base | mm | 5200+1350+1350 | |
Rear track base |
| 1840/1840/1840 | |
F/R suspension |
| -/1560, -/1760 | |
Approach/departure angle | ° | -/18 | |
Max speed | km/h | 95 | |
Axle Load | kg | 13000/13000/13000 | |
Tire specification | 12.00-20 16PR | Number of axles | 3 |
Asphalt tank | Stainless steel scrub, with Insulating layer | ||
Spray medium | Hot asphalt, emulsified asphalt and residual oil,crude oil | ||
Asphalt transport truck, referred to as asphalt truck: consists of automobile chassis, asphalt tank, asphalt pumping and spraying system, heat transfer oil heating system, hydraulic system, combustion system, control system, pneumatic system and operating platform. It is covered with iron and is lined with high-tech insulation materials for a long time. The heating pipe is installed in the tank body, and there are three heating modes: steam type, coal heating type and diesel torch type.
3 Axle 35-60cbm Heating Asphalt Bitumen Truck Tank Semi Trailer
1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.
| item | unit | parameters | ||
| Products name | liquid asphalt tank trailer | |||
| volume | M3 | 40,45,50,55 | ||
| G.W | kg | 50300 | ||
| Net weight | 10300 | |||
| Rated loading | 40000 | |||
| Overall dimentions | mm | 12740×2500×3800 | ||
| Number of axles | 3 | |||
| Wheel base | 6800+1310+1310 | |||
| tread | Front wheel | - | ||
| Back wheel | 1840/1840/1840 | |||
| Front overhang/rear overhang | mm | -/1450 | ||
| Number of plate spring(front/back) | -7/7/7 | |||
| Semi-trailer saddle maximum permissible load mass | kg | 16000 | ||
| Specification of tire | 12R22.5 tubeless tire | |||
| material | Q345R | |||
| Standard configurations | 1.material: inside is 5-6mm carbon steel 2. middle layer: 50-100mm rock cotton insulation layer 3. outside 1mm steel 4.choose heating systems | |||
