Model NO.
HHZ9400TJZHJ
Independent Suspension Type
Multi-link Type
Shape
Stake,Van-Type
Axle Number
3
Tire Number
12
Self-dumping
Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Q345A Steel
Condition
New
Axle Brand
Fuwa or BPW
Suspension
Leaf Spring Suspension
Kingpin
Baohua or Jost 2"or 3.5"
Tire
11r20 Tubeless Tyre 12 PCS
Payload
50t
Cylinder
5PCS Lifting Cylinder,1PC Self-Saved Cylinder
Box Thickness
Baseboard 2mm/2.5mm
Painting Color
as Customer′s Request
Advantage
Direct From Factory
Transport Package
in Nude
Trademark
CHHGC
Origin
China
HS Code
871639900
Production Capacity
1500/Month
Type:
Tipper Semi-Trailer
Load Capacity:
40t
Certification:
ISO9001, CCC, ISO/TS16949
Wheel Base:
4950+1310+1310,5230+1310+1310,5130+1310+1310,5430+
Tread:
1840/1840/1840,1850/1850/1850
Grade:
Light Duty
---Product Description:

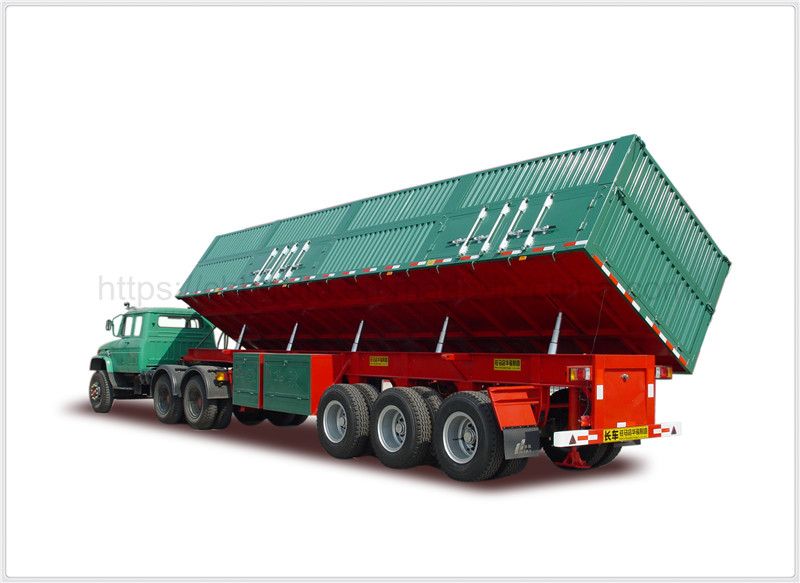

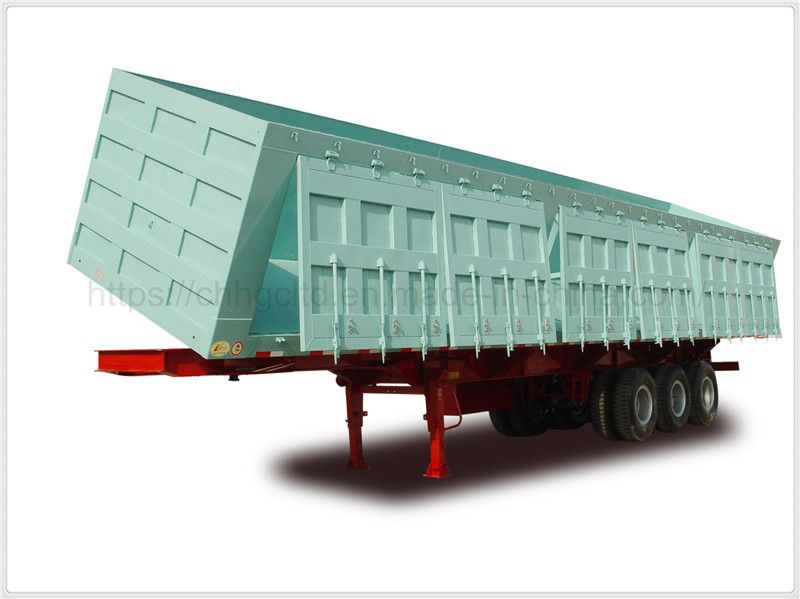

3-Axle Tipping Tipper Semi Trailer For Sale
| Dimension:L*W*H | 10500,11000 * 2500 * 2900(mm) |
| Axle Space | 4950+1310+1310,5230+1310+1310,5130+1310+1310,5430+1310+1310(mm) |
| Tare Weight | 7700kg,7900kg |
| Payload | 40t |
| Main beam | 500mm,wingboard:16/20mm,plateboard:6/8/10mm |
| Lights | led |
---Configration:
| Landing Gear | JOST D200 |
| King pin | 3.5" king pin, JOST |
| Brake system | Dual line pneumatic brake system. |
| ABS | yes |
| Brake Chamber | Type 30/30 spring brake chamber |
| Axle | FUWA square axle, 13 ton capacity/set,3pcs |
| Tire | 11.OOR20/12R22.5 12Pcs ,made in china |
| Rim | 8.0-20/9.0-20 12Pcs,made in china |
| Tool box | 1.5m/1 |
| Spare Tire Carrier | 2 units |
---Others:
| Cylinder | 5pcs lifting cylinder,1pc self-saved cylinder |
| Box Thickness | base board,2mm/2.5mm; |
| Painting | As customer's request |
---Packing and shipping
1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;
2. Cut the rear part which can load two sets in one 40ft container ;
3. Keep the trailer original but load two sets in one 45ft container
---FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3.The above trailer is just one product we producing according to customer's requirements.
we can supply customers with any type trailers they need .
---Company information
Henan Haiheng Import and Export Co., Ltd has been Established in 2004, We are able to supply
construction and mining equipment and various Semi-trailers ( Stake semi-trailer train , Skeletal
container trailer, Flatbed container semi trailer, Terminal trailer, Semi-trailer with side wall, Stake
semi-trailer, Stake semi-trailer with goose neck, Stake semi-trailer with long/short locks, special
semi-trailer for carrying coal, Curtain type semi-trailer ), tank trailer series ( Concrete mixer , Bulk
grain semi-trailer, Bulk cement truck , Bulk cement semi-trailer , Chemical liquid semi trailer , oil
tank semitrailer with heating heating device , stainless fuel tank semi-trailer Aluminum fuel tank
semitrailer,Oil transport trailer train),dump truck series,Special purpose semi-trailer(Stake tipper
trailer , side dumping semi trailer , Front-mounted dumping semi trailer , Tipper semi-trailer with
front mounted cylinder,Coiled sheet transportation semi trailer,farm tractor with farm implements,
dental products.
