Model NO.
LAT9390CLXY
Independent Suspension Type
Multi-link Type
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Brand
Aotong
Rated Load
10000 Kg
Tare Weight
9200 Kg
Tyre Specifications
8.25r20 12pr
Axle-Load
12640 Kg
Suspension
Air Suspension
Pieces of Leaf-Spring
10 (13)
Front/Rear Overhang
1670 mm
Outside Dimensions (Lxwxh)
17000X3000
Transport Package
in Nude
Specification
CCC ISO9001
Trademark
AOTONG
Origin
Shandong, China
HS Code
8716900000
Production Capacity
60PCS/Mpnth
Type:
Semi-Trailer
Load Capacity:
50T
Certification:
ISO, CCC
Wheel Base:
8480+1310 (mm)
Tread:
2240mm
Grade:
Heavy Duty

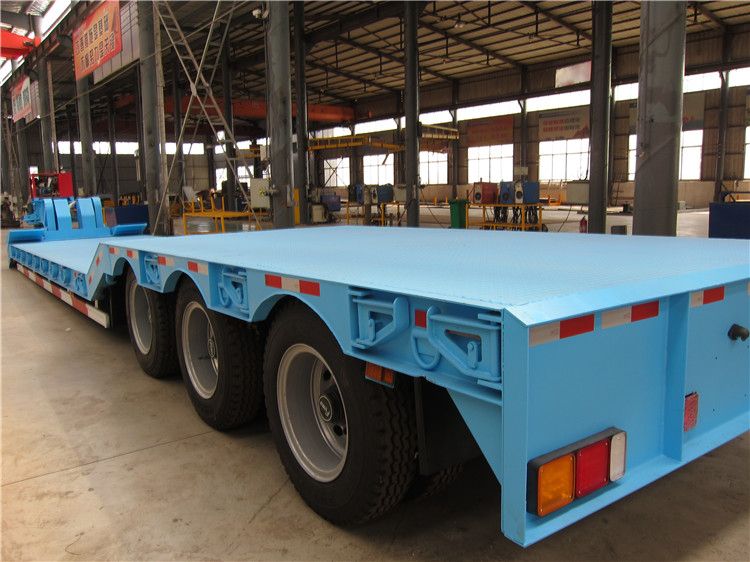

Detachable Heavy Duty Machine Transport Lowbed Goose Neck Semi Trailer
1.Usage:The height of the cargo's carrying platform is 1500mm, is suitable for the transportation of the large and non-dismantled objects.
2.Specifications:The max height of the rear guard from ground is 420mm
| Model Number | LAT9390TDP |
| Name | 3 axles lowbed semi trailer with detachable neck |
| Rated Load | 50000 kg |
| Size | Long 17 m ( 8.7 platform ), width 2.6 m to 3 m with extensions |
| Tyre | 12R22.5 12pcs |
| No. Of the Tyres | 12 |
| Axle | FUWA 13ton |
| No. Of the Axles | 3 |
| King Pin | 50#/90# |
| Pieces of leaf-spring | 10/10/10 |
| Suspension | Leaf spring suspension |
| Lamp | Mechanical ladder |
| Width extension | 200mm per side with rigs |
| platform | Thickness:5mm checkered plate Length:8700mm |
| Gooseneck | Hydraulic detachable neck |
| Power station | Pump and engine With the pipes to control the hydraulic system |
| Material of the Main Beam | Q345B manganese plates, automatic submerged arc welded,thickness: Upper plate 20mm Down plate 20mm Middle plate 14mm |
| Brake System | Dual line braking system |
| Brake Air Chamber | Six double chamber |
| Electrical | 24V 7 ways(7 wire harness) |
| Accessory | One tooling box with a set of standard trailer tool One spare tire carrier |
| Painting | Complete chassis sand blasting to clean rust , 1coat of anticorrosive prime, 2coats of final paint Color for option |
Design Drawing:
THE MAIN COMPONENTS OF THE WARRANTY PERIOD (SEE TABLE):
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||
MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | ||
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||||
KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | ||||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | ||
BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||||
AIR RESERVOIR | 6 MONTHS | ||||||
ITEM NAME | WARRANTY | ||||||
OTHERS | LEAF SPRING | 3 MONTHS | |||||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||||
EMERGENCY RELAY VALVE | 3 MONTHS | ||||||
BRAKE SHOE | 3 MONTHS | ||||||
RELAY VALVE | 3 MONTHS | ||||||
FAQ
1. How do you transport the semi trailers
We will transport the trailers by bulk or cotainer,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.
2. Can you satisfy my spacial requirement?
Sure! We are direct manufacturer with 20 years experience and we have strong producing capacity and R&D capacity.
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension,tyre are purchased centralized by ourselves,every part will be inspected strictly.Moreover,advanced equipment rather than only worker is been applied during the whole producing process to ensure the welding quality.
4.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
5 What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
6. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
7. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
