Features:
1. Different length available.
2. Gooseneck type: hydraulic gooseneck, detatchable gooseneck, radial gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle available.
3. Line lowbed available.
4. Platform extendable, super low platform availale.
5. Twist lock available.
6. Fence available.
| Rated load capcity(kgs) | 200,000kg |
| Max loading capcity(kgs) | 300,000kg |
| Dimension(mm) | platform length:7620mm, height is 635mm, traction height:1270mm |
| Material | high-strength steel AH60,40Cr |
| Main Beam | The height of the beam is 405 mm, upper flange 26 mm,down flange is 26 mm,middle flange is 14+14 mm, Material is Q 345B Steel |
| Cross member | 18#C type or AB type |
| Side rail | 380# "I" type, and equipped with the flip small ladder. |
| Platform | Q 235, checkered plate, 6 mm. |
| Gooseneck | engine system mounted inside gooseneck (easy to operate and waterproof). engine 10 hp electric starter, 2GPM pump, 6" bore w/22" stroke cylinder. detatchable hydraulic gooseneck, pneumatically controlled. |
| behind gyration radius of hydraulic gooseneck | 2550mm |
| the width and heigth of joint beam | 2990mm,1080±290mm |
| the height of tractor turnable | 1450mm |
| steering facilit | steering power takeoff |
| the max rotation angle of tractor(relative gooseneck) | ±55° |
| Leaf Spring | 120*16-10 , Funiu or Taiyue or other china brand |
| Axle | 15T steering axles *30pcs , BPW or FUWA or other china brand |
| Tyre &Wheel rim | tyre 8.25R20 *120pcs, wheel rim 6.5*20 *120pcs |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| King pin | 3.5" |
| Hole / lashing | 12 pcs per side,24pcs in total |
| Hook | 9 pcs per side,18 pcs in total |
| Landing legs | 28 T total Lifting capacity and 50 T static capacity,two speeds |
| main load bearing hydraulic ram | steering facility hydraulic ram,HSG-220/140×380, HSG-110/60×380 |
XINYA have been in truck trailer field for more than 20 years.
Our products are famous in aftermarket.
We've export to Europe, South America, South Africa and Southeast Asia
We've passed ISO9001:2000 & BV & SGS & CCC certificates
We've set up unified technical departments and testing standards.
We've invested in trailer parts (axle, suspension, fifth wheel, kingpin, landing gear, twist lock etc) .
We've take part in international exhibitions.

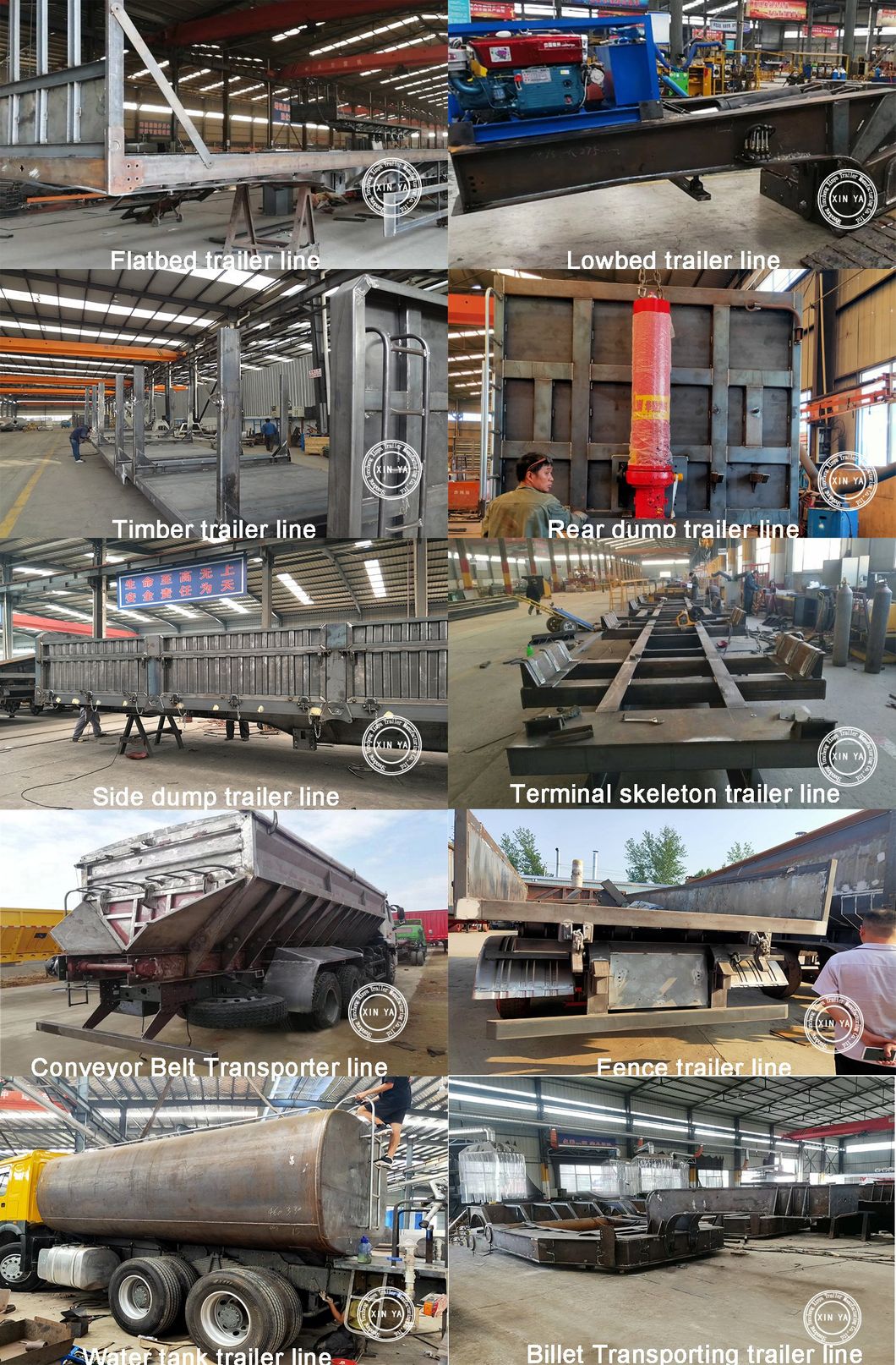

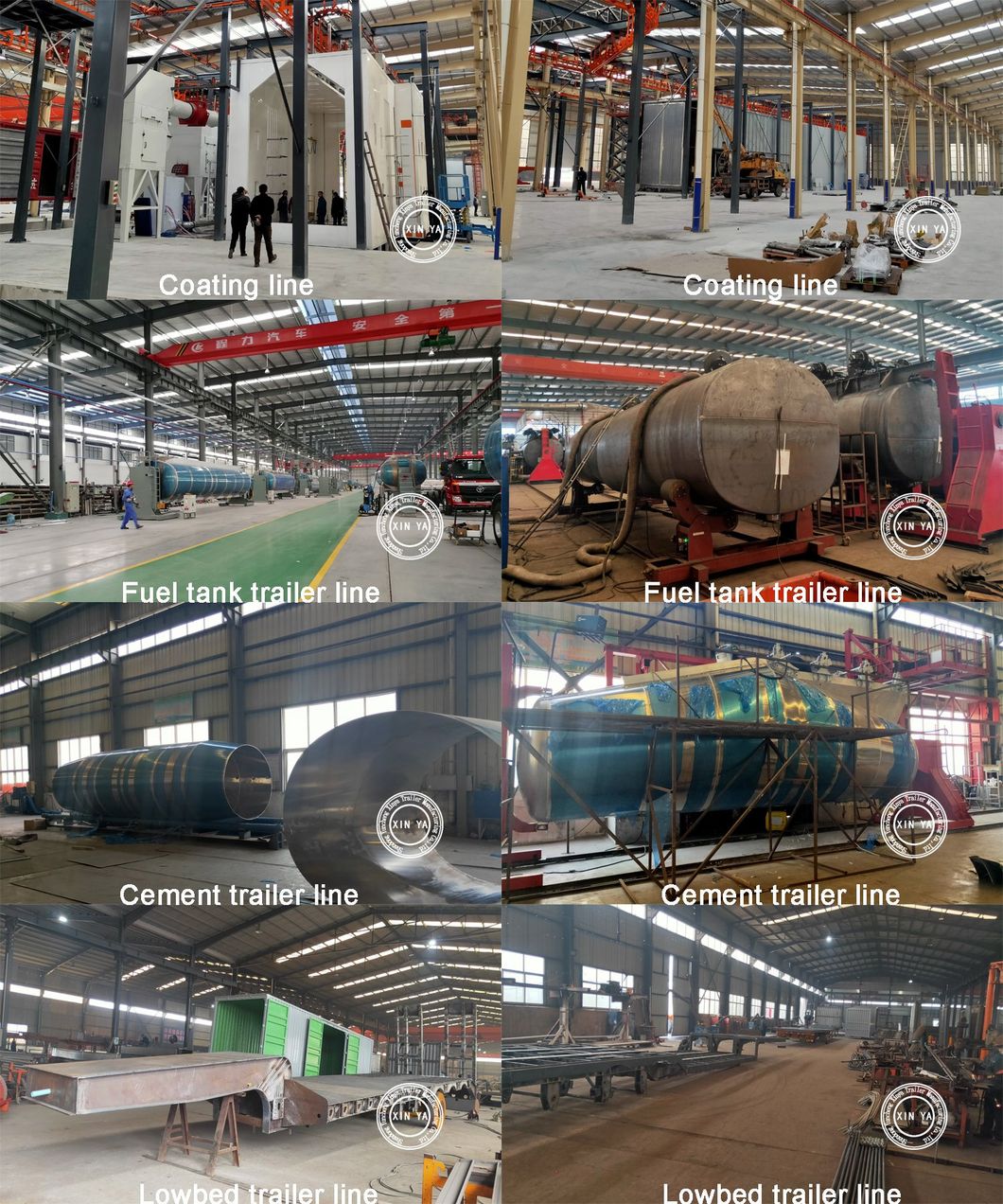

Multiple production lines, able produce multiple types truck trailers and spare parts.
XINYA IS THE SOLE COATING FACTORY IN TRUCK TRAILER FIELD IN CHINA!!!
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
We can produce goods according to customers' requests or drawings;
Short delivery & Safe packing;
Small order quantity is acceptable;
More details for these trucks, feel free to contact us please.
