Model NO.
LHY9408F
Independent Suspension Type
Mechanical Suspension
Shape
Circle
Axle Number
2/3/4
Tire Number
8/12/16
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Axle
BPW/Fuwa/Hj Famouse Brand Optional
Kingpin
2"/3.5′′ Bolt in Type
Colour and Making
Comply with Customer′s Requirement
Size
as Requirements
Trie
Double Star/Double Coin/Triangle
Use
Cargo Transport
Transport Package
Spray Wax or by Container
Specification
As optional
Trademark
HYD
Origin
China Shandong
HS Code
8716900000
Production Capacity
8000sets/Year
Type:
Full Trailer
Load Capacity:
40t
Certification:
ISO9001, CCC, SGS/BV/TUV
Wheel Base:
1310
Tread:
1840
Grade:
Medium Duty

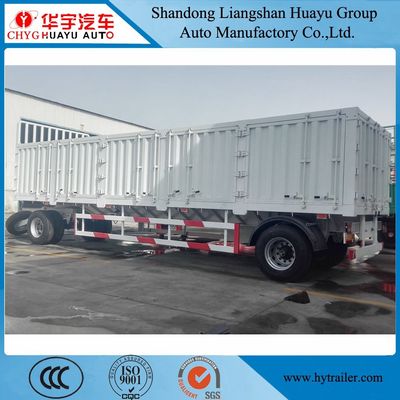

Trailer Details show:
Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line
Specifacition
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray.
Or load by container
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Welcome your inquiry and visit our factory.
Introduction of production process
A.Steel auto cutting
B.Main beam auto submerged arc welding
C.Chassis reversal ensure every part been welding well
D.Shot blasting for rust cleaning
E,F.Welding by experienced worker
G.Final cleaning welding slag by worker
H.Dust-free painting line
Specifacition
| Tare weight | 7000kg |
| Size | 10500mm*2500mm*1300mm |
| Payload | 45T |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | 16#/18# channel steel(Q235) |
| Cross member | 10#/w shape channel steel(Q235) |
| Floor | 5mm plate |
| Side wall | No |
| Front board | No |
| Axle | 3 axle FUWA brand 13T |
| Suspension | American type suspension |
| Leaf spring | 10pcs*13mm*90mm |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 jingu brand 12pcs |
| Kingpin | No |
| Turntable | Standard |
| Pull rod | standard |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | No |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Trailer advantages description
· More than 20 years professional design and production experience.
· Choose Regular manufacturers purchase materials,like Q235 baoshan.
· Use Domestic first-class production equipment.Main beam is useing Submerged arc welding process.
· Famouse brand trailer parts used,like bpw/fuwa axle,triangle/double star/double coin and so on tires.
· Strict quality control system ensure that each semi trailer is qualified.
Delivery
Wax spray.
Or load by container
Warranty period and after sale service
FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.
·Payment term:
1.30% contract value as the deposit by T/T,70% contract value payoff before delivery after production finish.
2.40% contract value as the deposit by T/T,60% contract value made by irrevocable L / C at sight.
Welcome your inquiry and visit our factory.
