Model NO.
SGZ
Tread
1820mm
Grade
Medium Duty
Independent Suspension Type
Cross Arm Type
Shape
Van-type
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
No ABS Anti-lock Braking System
Material
Steel
Condition
New
Color
Green or as Customers′ Option
Logo
Can Be Designed as Customers′ Option
Axle Brand
BPW/Fuwa/Hj
Loading Capacity
40000kg
Suspension
Mechanical Suspension
Transport Package
Nude Pack
Specification
ISO
Trademark
SINOTRUK Huawin
Origin
China
HS Code
8701
Production Capacity
2000unitsmonth
After-sales Service:
24 Hours After Sale Service
Warranty:
6 Months or 50000kms
Type:
Semi-Trailer
Load Capacity:
30T
Certification:
CE
Wheel Base:
7000-8000mm

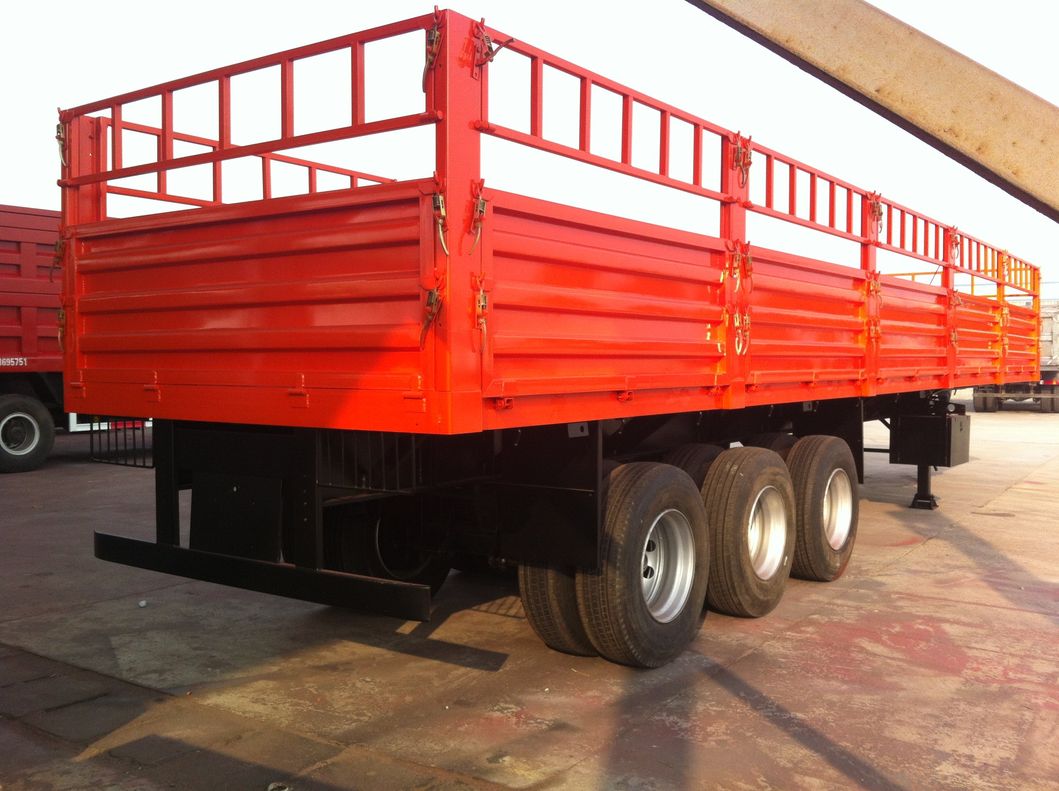

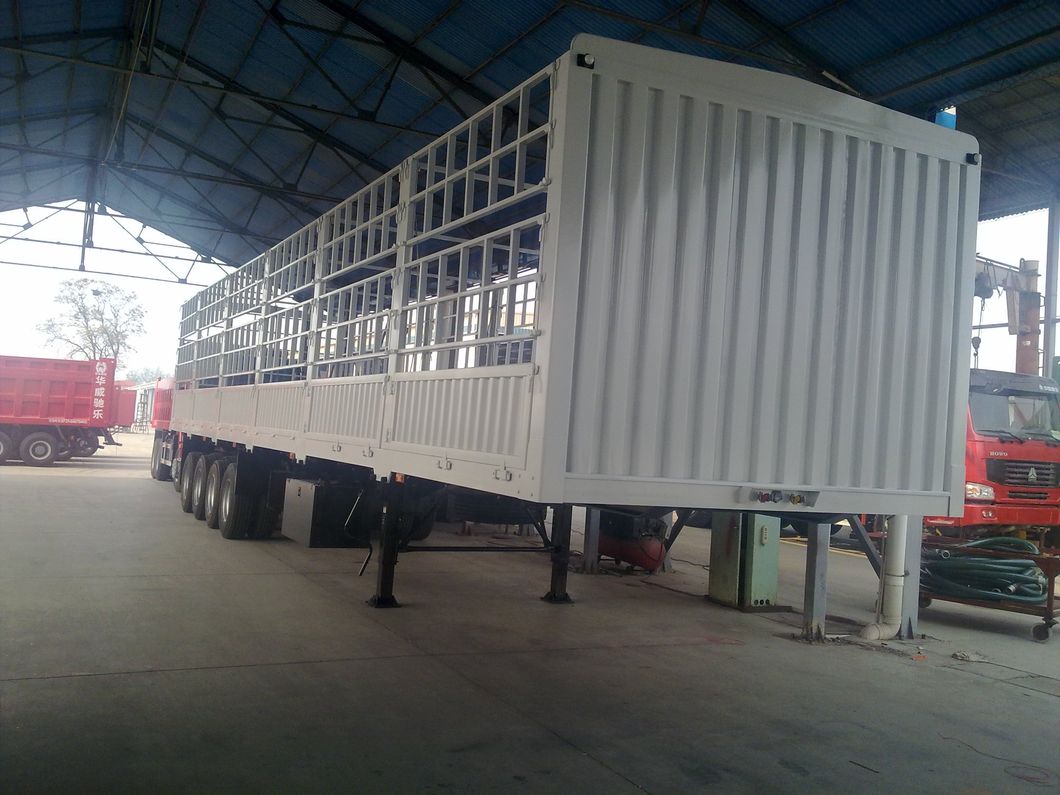

3 Axles Sinotruk 40 Ton Stake Bulk Fence Transport tractor truck Storehouse cargo Semi Trailer
Specifications
(1) Stake cargo semi trailer
(2) 2 Axle/3 Axle/4 Axle are optional
(3) Loading Capacity: 40000KG
(4) Optional twist locks Can be loaded one 40'' container or two 20'' containers
(5) King Pin: JOST
(6) Certification: ISO9001 CCC,SGS
Technical Parameters
Specifications
(1) Stake cargo semi trailer
(2) 2 Axle/3 Axle/4 Axle are optional
(3) Loading Capacity: 40000KG
(4) Optional twist locks Can be loaded one 40'' container or two 20'' containers
(5) King Pin: JOST
(6) Certification: ISO9001 CCC,SGS
Technical Parameters
| Gross Weight | About 40000KG | |
| Kerb Weight | About 7000KG | |
| Loading Capacity | 40000KG | |
| Dimensions | 13000x2500x3600mm, Exact size depends on the final design | |
| Main Beam | Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B steel | |
| Side Beam | 16mm or 18mm channel steel(Material is Q235 steel) | |
| Bottom Platform | 2.5mm Steel thickness of diamond plate or 3mm Steel thickness of flat plate | |
| Side Wall | Height:600mm or 800mm ,Stake height:1000-1600mm | |
| Axles | 13T/16T, BPW Brand | |
| Tire | 12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5 | |
| Rim | 8.5-20, 8.0-20, 9.0-22.5 | |
| Suspension | Mechanical suspension | |
| Spring Leaf | Width 90 mm, Thinckness 13/16mm, 10 Layer | |
| King Pin | JOST brand 2.0 or 3.5 inch bolts type or welding type | |
| Landing Gear | Jost brand, manual operation | |
| Brake Chamber | 4 double chamber | |
| Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |
