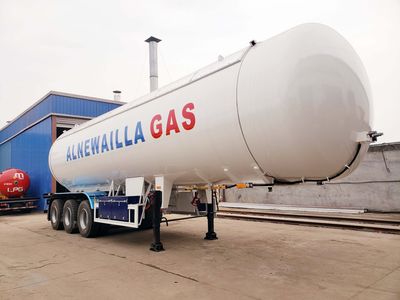

Tri-Axle 50m3 LPG Transport Semi-Trailer 50000L LPG Tanker Trailer
Product Description
1) LPG Transport Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity of LPG Transport Tanker Trailer: 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons
Product Specification
| Tank Essential Information | |
| Volume of Tank | 59.52 CBM (59520Liters / 30Tons) |
| Overall Dimensions(L*W*H) | 13000*2500*3990 mm |
| Filling Weight | 25000 kg |
| Tare Weight | 15000 kg |
| Total Weight | 40000 kg |
| Wheelbase | 7230+1310+1310 mm |
| Shell of tank | |
| Products | propene gas |
| Fluid Property | Flammable |
| Design Temperature | -20~50ºC |
| Design Pressure | 1.61 Mpa |
| Corrosion Allowance | 1 mm |
| Major Materials of Bearing Pressure | Tanker body:Q345, 11.5mm |
| End plate:Q345R, 11.5mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640ºC |
| Flaw Detection | 100% Flaw detection |
| Test Pressure | 1.61Mpa |
| Hydraulic Test | 2.1Mpa |
| Magnaflux inspection | Aim at welding place that flaw detection can not cover |
| Manhole(As customer's requirement) | 1, on top |
| Safety Valve(As customer's requirement) | 1, on top |
| Running system | |
| Axles | 3*13T BPW |
| Suspension | Mechanical suspension |
| Tire | 12R22.5 Tubeless tire,13 including one spare tire |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Landing leg | JOST brand, two-speed, manual operating |
| King Pin | #50 or #90 |
