Load Capacity
50-120 Ton
Certification
ISO9001
Wheel Base
8000-9000mm
Tread
1820mm
Grade
Heavy Duty
Independent Suspension Type
Mechanical Suspension
Shape
Flatbed
Axle Number
3 Axles
Tire Number
12 PCS
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Iron
Condition
New
Origin
Anhui, China
HS Code
8716391000
Production Capacity
100 Sets Per Month
After-sales Service:
Provide
Warranty:
1 Year
Type:
Semi-Trailer

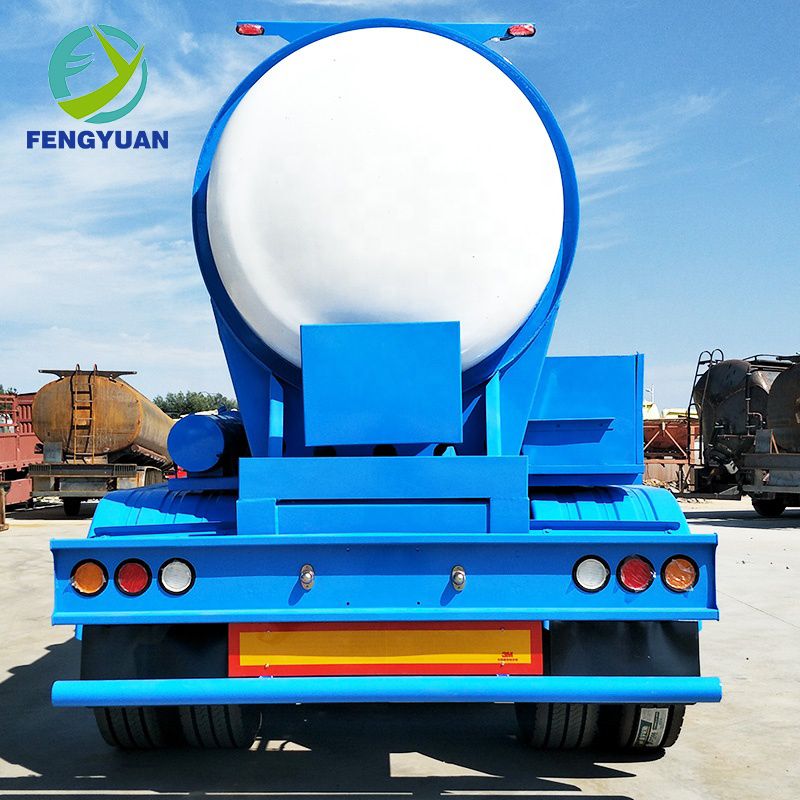

For the sulphuric acid tanker, we produce the most strong acid tank body to make sure the safety. We adop 5mm thick steel to weld the tankers, also use special design, like the 10 pcs strengthened steel ring to reinforce the Dilute Sulfuric Acid tanker trailer.
To keep the Acid tanker trailer safety, we use the stainless steel emergency bottom valve also the discharge valves, this type is anti-corrosion, so it can make the chemical tanker trailers to have long service life.we has strong technical force, and can design and manufacture products that satisfy customers
FengYuan sulphuric acid tanker trailer specifications:
Dimension: 10460mmx2500mm x3400mm (the exact size depends on the final design)Total volume(m³): 20m³ , Optional 19-42 m³
Axle: 3 axles
Bottom valve: aluminum API pneumatic bottom valve
Manhole cover: stainless steel manhole cover
Tank Body Material: Carbon steel Q235B
Discharging Valve: Diameter is 3 or 4 inch Stainless steel
Discharging Pipe: 4'' rubber pipe, 6m/piece, 2 pieces
King pin:2/3.5 inch
Landing gear:JOST
Tire:12 units
Suspension: Mechanical suspension/Air Suspension
Pneumatic Braking System: WABCO
ABS: Optional
Electrical system: Chinese standard 24V; 7 ways receptacle; LED lamps
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
