Model NO.
CLW54783
Independent Suspension Type
Mechanical
Shape
Tank
Axle Number
2
Tire Number
8
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Purpose
Long Distance Delivery
Axle Quantity
2 Axles
Tank Material
Q345r, Q420r
Tank Type
Horizontal
Head Type
Elliptical or Hemispherical
Design Pressure
1.61MPa
Axle Brand
BPW or Fuwa
Air-Tightness Pressure
16.1bar
Truck Engine
Sinotruk HOWO
Gearbox
10 Forward & 2 Reverse
Tire
12r22.5, 11r225, 315/80r22.5
Pump
2" Blackmer or Corken
Flowmeter
LC Flowmeter or Mass Flowmeter
Filling Hose
2" Discharging Hose or 15meter Hose Reel
Transport Package
Naked Package
Specification
45000Liter
Trademark
CLW
Origin
China
HS Code
8705909090
Production Capacity
100 Untis /Month
Type:
Semi-Trailer
Load Capacity:
20ton
Certification:
ISO9001, CCC, ISO/TS16949
Wheel Base:
9000-10000mm
Tread:
2240mm
Grade:
Heavy Duty
Product Description
LPG Propane Gas Delivery 30000L Dongfeng Gas Tanker Truck

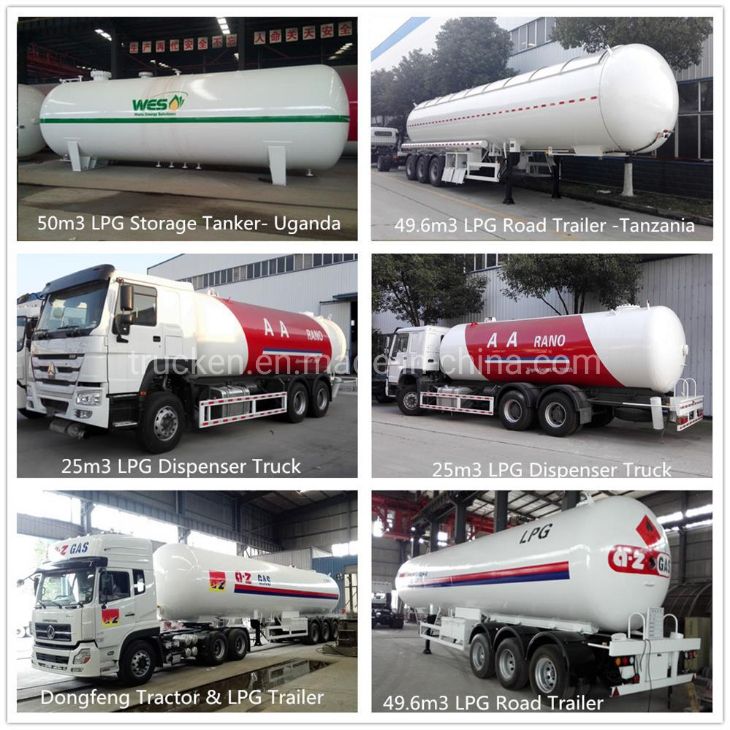

Product Photos:
Production Show:
Oversea Market Services:
LPG Propane Gas Delivery 30000L Dongfeng Gas Tanker Truck
- LPG Propane Tank Perfect Choice long Distance Bulk Delivery
- 2 Axles 20Ton capacity with light weight design, good for many asian country.
- German Brand BPW or Chinese Famous FUWA brand Axle with high quality for long use.
- Elliptically Tank Design with 16Bar Design Pressure for both hot and cold area.
- Level Gauge in different options: Rochester, MEC, REGO, Chiense Brand.
- Emergency Valve and Ball Valves in good Quality.
Specifications Detail of the truck
| 40 CBM LPG Tanker Trailer | ||||
| Volume of Tank | 40,000 Liter | |||
| Filling Weight | 18,000 kg | |||
| Tank Weight | 13,415 kg | |||
| Tank Diameter (mm) | 2200 mm | |||
| External Dimensions (mm) (length x width x height) | 13000 x 2500 x 3990 mm | |||
| Material of Tank and Main Pressure Parts | Q345R | |||
| Thickness of Shell (mm) | 12 mm | |||
| Thickness of Endplate (mm) | 12 mm | |||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||
| Corrosion Allowance | 1 mm | Filling Ratio | 500-560 kg / cbm | |
| Design Pressure | 1.61 MPa / 16.1 Bar | Hydraulic Test Pressure | 2.22 Mpa / 22.2 Bar | |
| Working Pressure | 1.61 Mpa / 16.1 Bar | Air Tightness Test Pressure | 1.71 Mpa / 17.1 Bar | |
| Chassis Specification | ||||
| Item | Specification | |||
| Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes | |||
| Axle | 2 pieces of 13Ton German Brand BPW Axle, | |||
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear | |||
| King Pin | JOST 2"standard bolt-in king pin | |||
| Suspension | German design mechanical suspension | |||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||
| Tire | 11.00R20 tire, 8 Pieces with 1 Spare | |||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
