Product description
3 or 4 axles Self Dump Trailer, Dump Semi Trailer, Dump Semi-Trailer, Dumper Semi Trailer
Dump tipping semi trailer, 2-3-4 axles, is specially designed for heavy good transportation, like stone and mining materials. It is strong enough to carry up 60T in long distance delivery, rough road situation.
1. Tare Weight: 8500-15500 Kg
2. Dimension (Lx W x H): 8.8/10.5/ 11.2x2.5x3.5m
3. Capacity: 18, 24, 32, 45 CBM
4. Payload: 40-70T
5. Side WWall: 6mm/8mm strengthened wall
6. Front Wall: 8mm strenthened
7. Floor: 8mm/10mm strenthened
8. Hydraulic: HYVA hydraulic cylinder
9. Chassis: Heavy Duty I Beam Chassis
10. Axle: BPW, FUWA, SAF-Optional
11. Suspension: Mechanical, Air Bags-Optional
12. King Pin: 2", 3.5"
13. Tire: 11R22.5, 12R22.5. 315/80R22/5
14. Braking System: WABCO Relay Valve
15. Accessories: One standard tool box.
product Specification
| Rear Dump Semi Trailer | |
| Overall dimensions | 11000*2500*3700mm |
| Tare weight | 14300kg |
| Payload | 60000kg |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 16mm,width140mm;Middle Flange 12mm;bottom flange18mm,width hight 500mm |
| Floor | 6mm |
| Side wall | 4mm height 2000mm |
| Cylinder | HYVA brand |
| Axle | 3 axle FUWA brand 16T |
| Suspension | Mechanical suspension |
| Leaf spring | 10pcs 16mm*90mm |
| Tire | 12R22.5 triangle brand 13pcs |
| Wheel rim | 9.0-22.5 13pcs |
| Kingpin | 2" or 3.5" bolt-in king pin |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S/2M |
| Drawing | with |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | 2 spare tire carrier, one rocker handle,one shaft wrench |

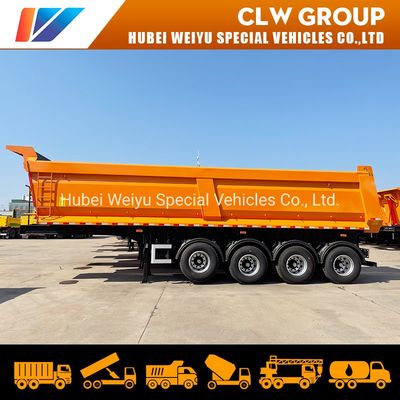

4 axle 50tons 60tons tipper trailer front axle liftable 50T 60T tipper dumper dump semi trailer with air bag suspension
3 axles Self Dump Trailer
Main Structure Diagram
