Model NO.
HHGC9400GHY
Independent Suspension Type
Multi-link Type
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Iron
Condition
New
Axle Brand
Fuwa or BPW Axle
Suspension
Leaf Spring Suspension
Kingpin
Optional for Jost 2" or 3.5"
Langing Gear
Jost Dual-Speed Landing Gear
Warranty
12 Month
Tank Material
Carbon Steel, 5mm Thickness
Bulkhead
Thickness Is 5mm
Baffle
Thickness Is 4mm Approx
Advantage
China Best Quality & Best Price
Transport Package
Nude
Trademark
CHHGC
Origin
China
HS Code
8716399000
Production Capacity
1000/Month
Type:
Semi-Trailer
Load Capacity:
30T
Certification:
CE, CCC, ISO/TS16949
Wheel Base:
7000-8000mm
Tread:
1820mm
Grade:
Heavy Duty

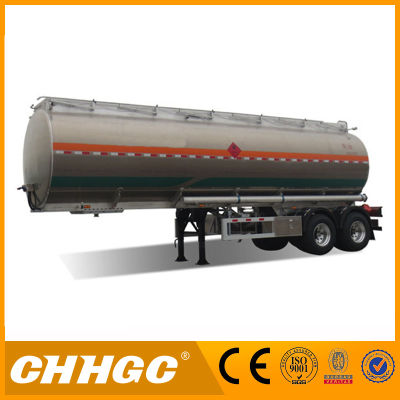

3 Axle 40cbm Oil/Fuel Tanker Semi Trailer
Product Description
| Dimension | 12950x2500x3950(mm) |
| Kingpin setting | 1350(mm) |
| Kingpin plate height | 1310(mm) |
| Axle Space | 6650mm+1310mm+1310mm |
| Tare weight | 9500kg |
| Loading capacity | 40000L |
| Lanidng Gear | Tfoc/Jost 28T One-Speed Landing Gear |
| Kingpin | Optional for Baohua/Jost 2.0"/3.5" |
| Brake system | Dual line pneumatic brake system |
| ABS | Yes |
| Brake Chamber | Type 30/30 spring brake system on all axles |
| Suspension | spring suspension |
| Axle | FUWA/BPW axle, 13 ton capacity/set,3pcs |
| Tire | 11.00R20, 12 pcs |
| Rim | 8.0-20 12 pcs |
| Tool box | 1pcs |
| Spare Tire Carrier | 2pcs |
TANK SPECIFICATION:
| Compartment | one |
| Tank Material | Carbon steel, thickness 5mm |
| Bulkhead | Thickness 5mm |
| Baffle | Thickness 4mm approx |
| Shape of Tank | Ellipse (double "d") |
| Test pressure designed | 36kpa |
| Fire extinguisher | 2pcs |
| Manhole | one |
| Discharge hose | 4x6mm |
| Hose carries | 2pcs |
Certificate

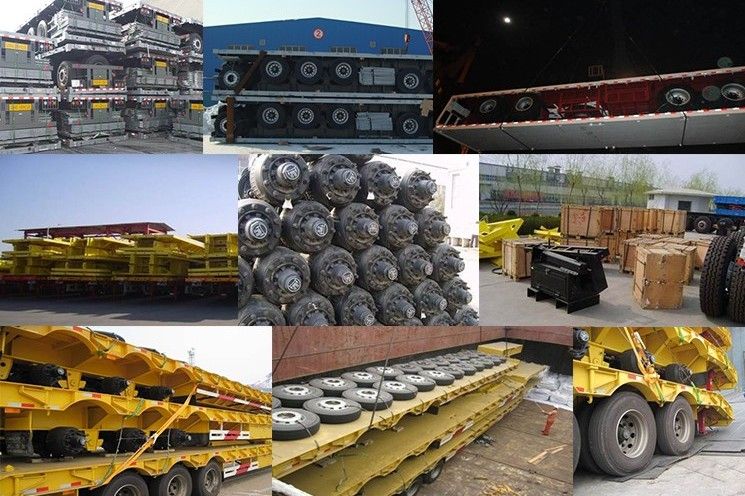

Workshop
Business Partners
FAQ:
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.
Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
