Model NO.
SN-KCB_R-IIIA
Speed
1.00-2.00m/s
Drive Mode
AC
Control Type
Microcomputer Frequency Control
Lift Mechanism
Telescoping Lift
Use of Occasions
Public Traffic
Guide Rail
T Guide
Power
100~120W
Voltage
250VAC/DC
Current
3.0A
Product Name
Bistable Switch
Transport Package
in Carton Box
Trademark
Sunny
Origin
China
Production Capacity
10000PCS/Month
100W ~ 120W Bistable Switch with Elevator Electrical Parts (SN-KCB_R-IIIA)
Product Shape
P/N:SN-KCB_R-IIIA/B C cable outlet in the left.
Application in elevator car level for position sensing.
Power:100~120W,voltage:250VAC/DC,current:3.0A;shock-resistance:50G
Testing distance:5mm~15mm;
Bi-stable door switch is with dustproof and explosion-proofplastic case,foreign-made reed switch with orginal package,high life;
Actuating magnet choice depends on actual environment conditions.
| Switching capacity | Max | 120W/VA | Switching time without bounce | Max | 3.5ms |
| Switching voltage | Max | 250V AC/DC | Bounch time | Max | 0.5ms |
| Switching current | Max | 3 A | Release time | Max | 0.2ms |
| Carrying current | Max | 5 A | Resonant frequency | typ | 900Hz |
| Dielectric strength | Max | 800 VDC | Operating frequency | Max | 100Hz |
| Insulation resistance M | Max | 10* Ohms | Shock 11ms | Max | 50g |
| Operating principle | Magnet | Magnetic | Testing distance | mm | 5~15 |
| Product choice | SN-KCB_R-IIIA Left outlet; KCB_R-IIIB Right outlet | ||||

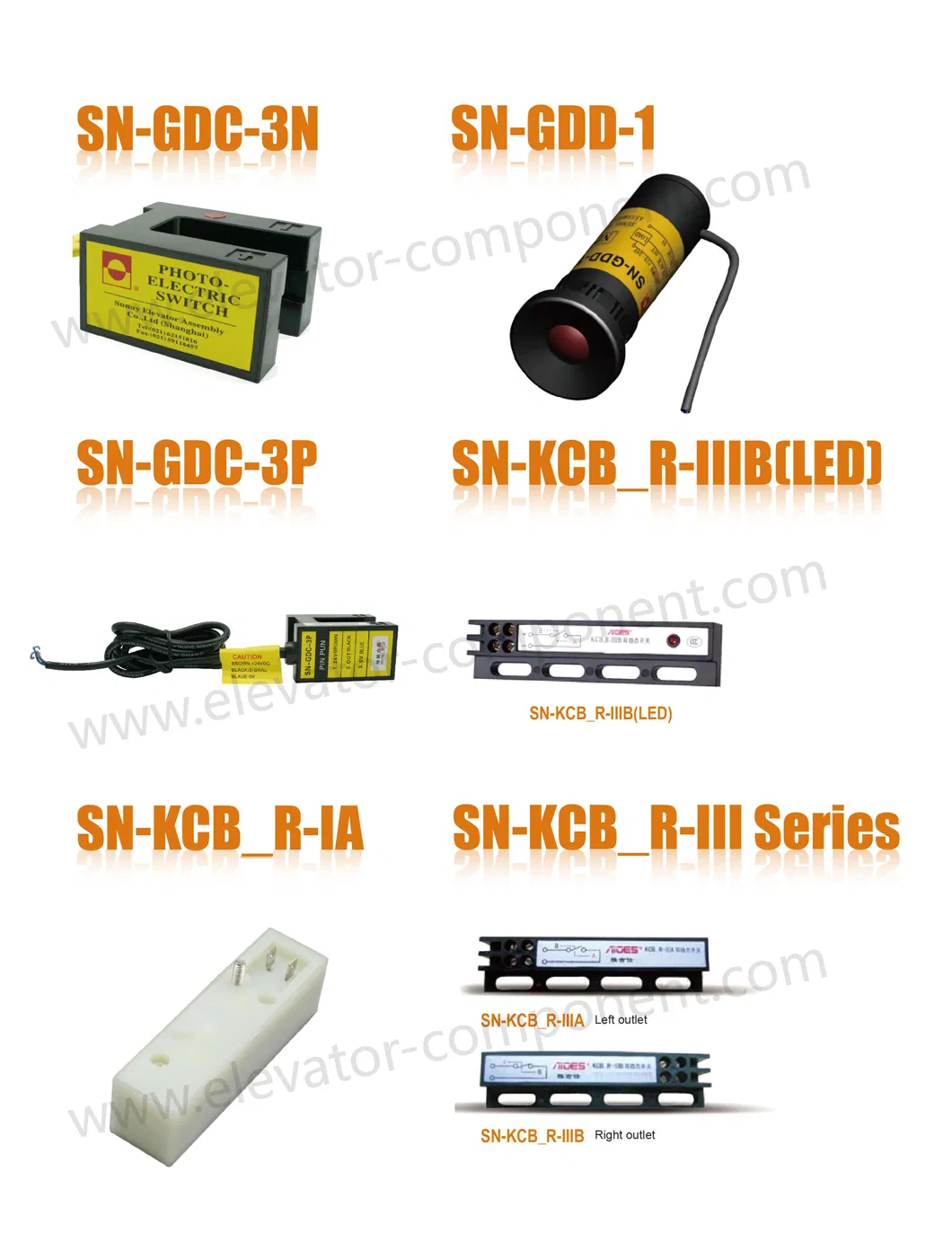

Our hot products:
About us:
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
