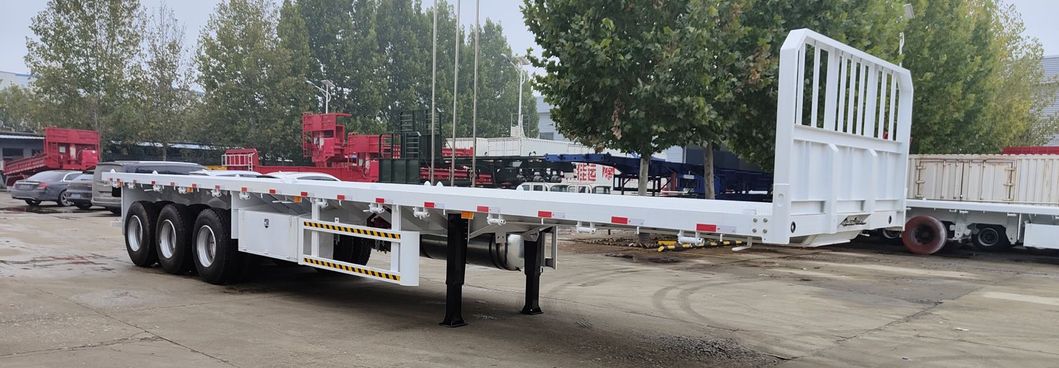

In order to take care of the diversified uses, we equip 3/4Axles Hot-selling 3 Axles Flatbed Container Trailers with Frontboad with sufficient rope hooks and rope tighteners on both sides of our flatbed and drop side trailers.
With more than 15 years' exporting experiences, LUCKIN VEHICLE has exported more than 800 units 3/4Axles Hot-selling 3 Axles Flatbed Container Trailers with Frontboad to Africa and Southeast Asia countries based on our rich design experiences and durable quality and reputations. We are always on the way to help your customers gain suitable trailers and reliable wealth accumulations.
| Tare Weight | 6000kg-9000kg |
| Loading Capacity (T) | ≤ 60 T(40FT) |
| Axle unit | 2/3/4 units |
| Axle | 13 T/16T, FUWA /Huajing/ Factory Brand or 12T/14T BPW Brand |
| Rim | 9.00-22.5 |
| Tire | 12.R22.5/ or 315/ 80R22.5 |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (FUWA or BPW brand ) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*16mm*10 |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand 25T or China brand FUWA 28Tons (Double speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 14mm ; Material is Q345B Steel . |
| Brake chamber | Emergency braking system,air damping,Dual line pneumatic brake system ;WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(FUWA brand); Two pieces of 45L air tanks |
| Brake Valve | WABCO valve |
| ABS | Optional |
| Twist Locks | Eight or Twelve pieces (Lifting type or Twist Screw Type) |
| Electrical System | 1. Voltage: 24v/12v 2. Receptacle: 7 ways (7 wire harness) |
| LED Light :Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
| One set 6-core standard Cable. | |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
1.Mature Welding Process: LUCKIN VEHCLE adopts automatic submerged arc welding method to weld the main beam. The longitudinal beam is completed by automatic tracking submerged arc welding machine. All components are shot peening to improve paint adhesion and are painted prior to assembly, making the main beam stronger and more durable.
2. Reliable Materials: We adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. Besides, all the main parts, used in our trailers, must be processed with advanced equipment and have good reputations in the market.
3. Mature Design and Manufacture: We would like to design the trailer according to our customers' needs and special using conditions. Also, we would consider more than what them based on their final usage, and provide customers with reasonable suggestions when they are hesitating.
4. Rich Exporting Experience: More than 20 years of experiences in producing and exporting trailers and other goods, we have helped hundreds of customers in more than 35 countries in Africa and Southeast Asia.
5. Quality Assurance:We would offer 2 years' warranty for chassis frames of our trailers and also be responsible for the damage of parts during normal use.
6. Customized Service: We support customized designing and production according to customers' different needs and different road situations to match your usage in local.
1. Who are we?
Answer: LUCKIN VEHCLE is a group company; we have three trailer factories in Shandong and one trading company in Qingdao. We are focus on semi-trailers, trucks and parts.
2. Why choose us
Answer: 1) We have more than 15years experience in the trailer manufacturing. LUCKIN VEHCLE has got high reputations in China and oversea countries.
2) We have more than 20 engineers to design the kinds of trailers according to the detailed requirements and needs from customers.
3) We had exported thousands of trailers to Africa, Middle East, Asia, Australia, South America since 2005.
