Independent Suspension Type
Cross Arm Type
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Tyre Specifications
1100r20-18/12r22.5-18
No. of The Tyres
12
Axle Brand
Fuwa (BPW Optional)
No. of The Axles
3
Axle-Load
24000 Kg
Outside Dimensions (Lxwxh)
13000X2500X2990 (mm)
Scale
Heavy Duty
Transport Package
in Nude
Specification
CCC ISO9001 SGS
Trademark
AOTONG
Origin
Shandong, China
HS Code
8701200000
Production Capacity
300 PCS/Month
Type:
Semi-Trailer
Load Capacity:
50T
Certification:
ISO9001, CCC, BV Wmi
Wheel Base:
9000-10000mm
Tread:
2240mm
Grade:
Heavy Duty
Customize the semi trailer according to your requiements. Professional semi trailer manufacturer with more than 30 years of production experience serve for you - AOTONG

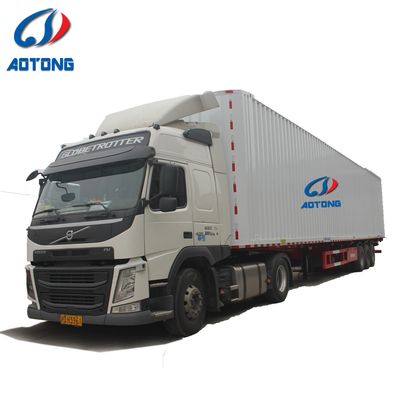

| Type: | Van Semi Trailer/Trailer van/Box Semi Trailer For Export Sale |
| Model: | LAT9450XXYC |
| Dimension: | 10000-13000*2550*3400 mm |
| Payload: | 60,000 kgs |
| Tare weight: | Approx. 9,500 kgs |
| Main beam: | Material Q345. Fabricated "H" beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm |
| Side beam: | 16# channel steel |
| Platform: | 3mm thick checkered plate. |
| Side walls: | 600-1800 mm height. |
| Kingpin: | JOST 2" Kingpin, bolted in type |
| Welding standard: | All welding are to be done by qualified welder per applicable national standard |
| Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive primer, twice coats of final paint |
| Suspension: | Leaf spring or Air suspension |
| Axle: | FUWA/BPW 13 tons axles |
| Brake system: | Dual line pneumatic brake, with hose and connector |
| Brake chamber: | 6 units T30/30 spring brake chambers |
| Air tank: | 40L, 2 pcs, China |
| Emergency relay valve: | WABCO/Shunanda relay valve |
| Tire: | 12R22.5, 12 pcs. |
| Landing gear: | Standard 28T two speed telescopic manual landing gear |
| Electrical | Voltage:24V Receptacle: 7 ways (7 wire harness) A full set of LED lights installed on the trailer, front rear side turning etc. |
| Spare wheel carrier | Two sets of spare wheel carrier |
| Accessory | One tooling box with a set of standard trailer tool |
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design!
Click for your own design!
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
★We are the direct factory for all kinds of good quality semi trailers with competitive price.We also have rich production experience in the following models.
Click to get the models that have been shipped to your country!
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
