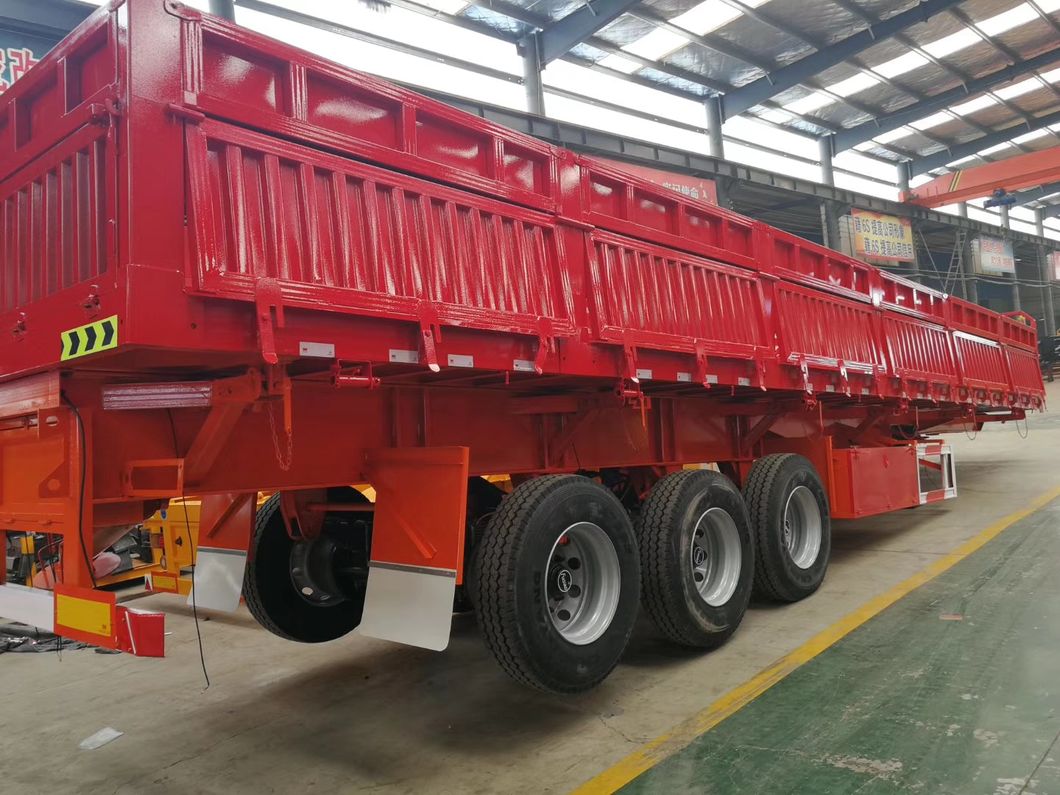

| 2/3/4 axles flatbed side wall optional cargo transport semi trailer | |
| Color | Any color available as client's need |
| Rated Load | 40-80 Tons |
| Tare Weight | 7-9 Tons |
| Tyre Specifications | 11.00R20/12R22.5 |
| No. Of the Tires | 8/12/16 |
| Axle | 13 Tons Fuwa / BPW |
| No. Of the Axles | 2/3/4 |
| Leaf-spring | 10 |
| Suspension | Leaf spring / Air suspension |
| Outside Dimensions | 10000-14000*2500*2590(mm) (L*W*H) |
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded Upper:16mm, Lower:16mm, Mid web:8mm The height of beam:500mm, "I" type beam |
| Brake Air Chamber | Double chambers |
| Floor | Steel sheet 4mm thickness or diamond plate |
| King Pin | 2 & 3.5 exchangeable king pin |
| Landing Gear | 28000 kg |
| Spare Wheel Carrier | One set of spare wheel carrier |
| Accessory | One tooling box with a set of standard trailer tool |
| Electrical System | 24V, 7core socket, lights according to European standards. |
AOTONG start from every detail, carefully craft to customize your high-quality semi trailer.
Excellent design ability!
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design!
We also have rich production experience in the following models.Our trailers can be designed according to customer's requirements.
Click to get the models that have been shipped to your country!
★We are the direct factory for all kinds of good quality semi trailers with competitive price.
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.
Welcome to visit our factory!
Our services and products are highly recognized by customers!
Welcome to send us your inquiry at any time to get efficiently feedback!
