Tent Type
N/a
Axle Number
1
Tire Number
N/a
Color
N/a
Condition
New
Axle Style
Torsional
Capacity
450 Kgs
Width at Hub Face
90 Inches
Mount Width
74 Inches Outside Brackets
Overall Width
100 Inches
Spindle Dimensions
1-3/8" X 1-1/16" Tapered
Replacement
Dexter Axles, Rockwell Axles
Manufacturer
Mastervim
Transport Package
Pallet
Specification
NA
Trademark
Mastervim
Origin
China
HS Code
87089900
Production Capacity
1000 Per Month
After-sales Service:
Yes
Warranty:
24 Month
Type:
Axle
Certification:
ISO/TS16949, CCC, DOT, ISO, CE
Loading Weight:
3500 Lb
ABS:
Without ABS
About torsion axle
Torsion axles have taken the trailer industry by storm in recent years. The boom in usage can be attributed to the many benefits that torsion axles offer over standard spring axles. Their innovative design provides an array of benefits and avoids many of the shortfalls that have commonly been found in traditional spring axles.
Torsion Axle Benefits
No Maintenance
Torsion axles have a very simple design, using rubber cords and an inner bar, rather than the large array of parts found in a spring axle. The simplicity of this design means that there is little to no maintenance that needs to be done. All you have to do is lube your wheel bearings.
Smooth, Quiet Ride
Torsion axles function using a simple design that utilizes the compression of rubber cords inside the axle to cushion the trailer. This twisting and compression motion is very smooth and it rides nicely even when there is no load. Furthermore, there is no metal-to-metal contact inside the axle making it quieter and less abrasive.
Reliable
Torsion axles have fewer moving parts than traditional forms of trailer suspension. As mentioned earlier, there is no metal-to-metal contact within the axles components. This means that there are no abrasive parts rubbing against each other, causing wear or corrosion. Likewise, the rubber construction means that the axles are more corrosion resistant.Versatility
Torsion axles can be used in an extensive range of applications, due to the ease of adjustment. To change the height of a torsion axle, the torsion bars just need to be adjusted. Additionally, half-torsion units can be used, meaning that the application does not need an axle that passes under the entire trailer. This opens up the opportunity for many custom applications and can provide benefits such as additional ground clearance.When is it better than a Spring Axle?
They are particularly advantageous over springs axles for applications like:- Marine/Boat trailers
- Rough/bumpy surfaces
- When much lower or higher ride height is needed
- High vibration applications (like wood chippers or generators)
- Custom applications
- Applications with limited mounting space
- Corrosive environments (like saltwater)
Application
Camper trailers, Boat trailers, Solar light trailers, Equipment trailers, Utility trailers, Horse trailers, Car dolly, Generator trailers, Snowmobile trailers, Motorcycle trailers, etc.
Other products
Torsion axle without brakeTorsion axle with disc brake
Torsion axle with drum brake
Torsion axle with electric brake
Torsion axle with hydraulic disc brake
| Intergral Torsion Axle | Weight Capacity | Beam Size | P.C.D. | Brake | Surface Finish |
| Torsion Axle Without Brake | 1650lbs | 55 x 55mm | 5 bolts on 4.5" | N/A | Painted or Galvanized |
| 2200lbs | 60 x 60mm | 5 bolts on 4.5" | N/A | Painted or Galvanized | |
| 3500lbs | 65 x 65mm | 5 bolts on 4.5" | N/A | Painted or Galvanized | |
| 5200lbs | 70 x 70mm | 6 bolts on 5.5'' | N/A | Painted or Galvanized | |
| Torsion Axle With Electric Brake | 1500lbs | 60 x 60mm | 5 bolts on 4.5'' | Electric Brake | Painted or galvanized |
| 2200lbs | 60 x 60mm | 5 bolts on 4.5'' | Electric Brake | Painted or galvanized | |
| 3500lbs | 65 x 65mm | 6 bolts on 5.5'' | Electric Brake | Painted or galvanized | |
| 5200lbs | 70 x 70mm | 6 bolts on 5.5'' | Electric Brake | Painted or galvanized | |
| Torsion Axle With Mechanic Drum Brake | 2000lbs | 60 x 60mm | 5 bolts on 4.5" | Mechanic Drum Brake | Painted or Galvanized |
| 3500lbs | 65 x 65mm | 5 bolts on 4.5" | Mechanic Drum Brake | Painted or Galvanized | |
| 5000lbs | 80 x 80mm | 6 bolts on 5.5'' | Mechanic Drum Brake | Painted or Galvanized | |
| Torsion Axle With Mechanic Disc Brake | 2000lbs | 60 x 60mm | 5 bolts on 4.5" | Mechanic disc brake | Painted or Galvanized |
| 3500lbs | 65 x 65mm | 5 bolts on 4.5" | Mechanic disc brake | Painted or Galvanized | |
| 5000lbs | 70 x 70mm | 6 bolts on 5.5'' | Mechanic disc brake | Painted or Galvanized | |
| Torsion Axle With Hydraulic Drum Brake | 2200lbs | 60 x 60mm | 5 bolts on 4.5" | Hydraulic Drum Brake | Painted or Galvanized |
| 3500lbs | 65 x 65mm | 6 bolts on 5.5'' | Hydraulic Drum Brake | Painted or Galvanized | |
| 7000lbs | 90 x 90mm | 8 bolts on 6.5'' | Hydraulic Drum Brake | Painted or Galvanized | |
| Torsion Axle With Hydraulic Disc Brake | 3500lbs | 65 x 65mm | 5 bolts on 4.5" | Hydraulic Disc brake | Painted or Galvanized |
| 5200lbs | 70 x 70mm | 6 bolts on 5.5'' | Hydraulic Disc brake | Painted or Galvanized | |
| 6000lbs | 80 x 80mm | 6 bolts on 5.5'' | Hydraulic Disc brake | Painted or Galvanized | |
| 7000lbs | 90 x 90mm | 8 bolts on 6.5'' | Hydraulic Disc brake | Painted or Galvanized | |
| 8000lbs | 90 x 90mm | 8 bolts on 6.5'' | Hydraulic Disc brake | Painted or Galvanized | |
| Half Torsion Axle Kits | 1500lbs | 60 x 60mm | 5 bolts on 4.5'' | Without/Electric/Hydraulic | Painted or Galvanized |
| 2200lbs | 60 x 60mm | 5 bolts on 4.5'' | Without/Electric/Hydraulic | Painted or Galvanized | |
| 3500lbs | 65 x 65mm | 6 bolts on 5.5'' | Without/Electric/Hydraulic | Painted or Galvanized | |
| 5200lbs | 70 x 70mm | 6 bolts on 5.5'' | Without/Electric/Hydraulic | Painted or Galvanized |

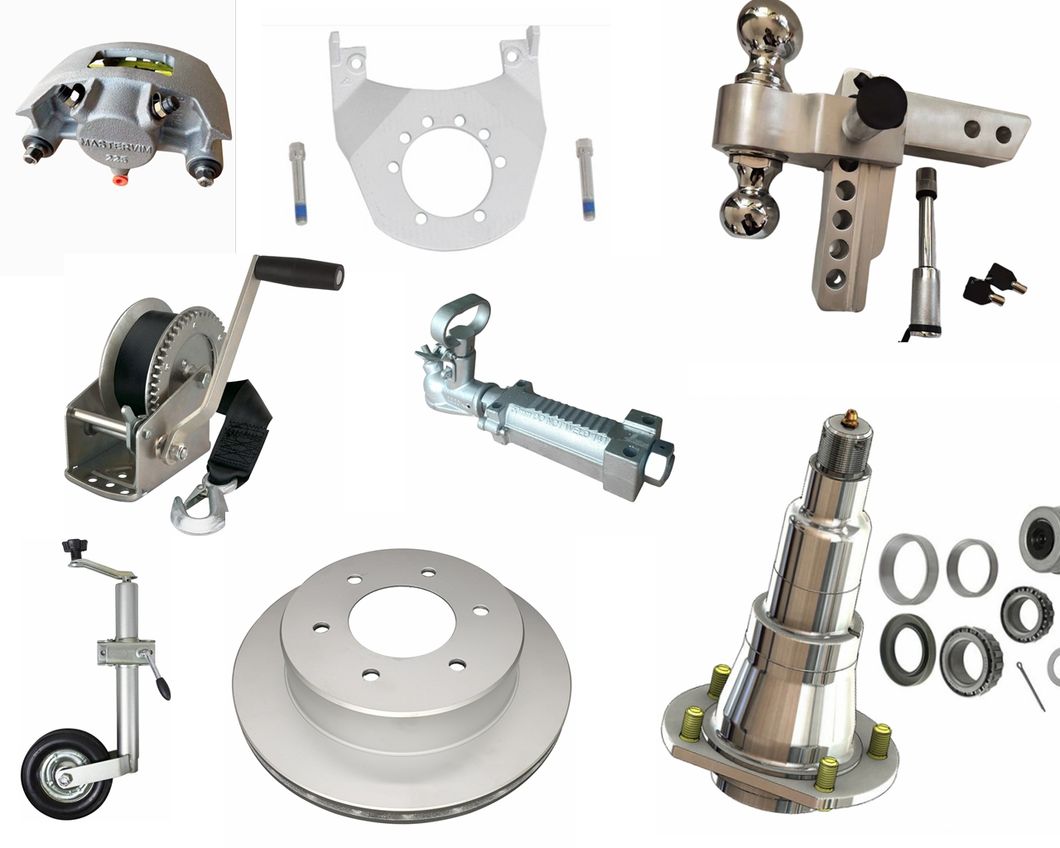

Related Product
Capacity Range
450kg/750kg/1000kg/1250kg/1500kg/1750kg/2000kgs/2500kg/3000kgs/3500kg/4000kg1,650lb/1,750lb/2,500lb/3,500lb/5,200lb/6,000lb/7,000lb /8,000lb
Product Process

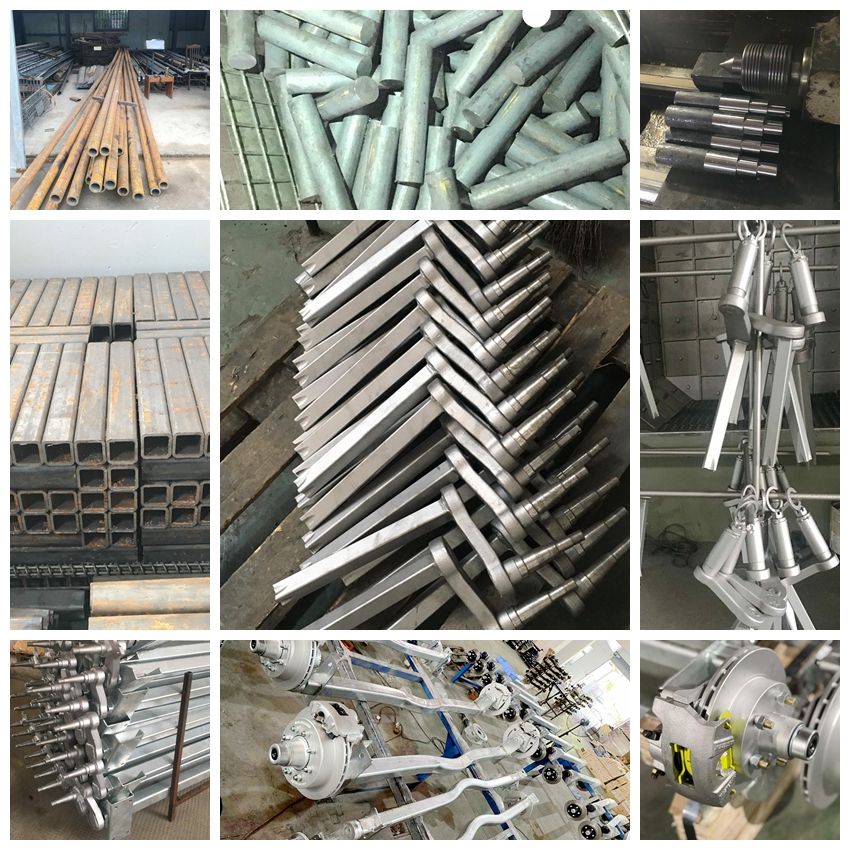

Cutting axle tube>welding bracket>welding torsion arm with torsion bar>surface treatment>press rubber
Why choose Mastervim?
Mastervim was established in 2004, as a manufacturer of products for trailers. The product range has varied greatly during our evolution, currently, Mastervim is focusing on developing axles, suspensions, brake parts and other components for the trailer industry.
Our customers represent all types of trailer manufacturers including marine, RV, horse, commercial/industrial, cargo, etc.
Over the past several years, Mastervim has built 5 plants in China, designed several production lines of fully customed parts, involving casting, forging, machining, welding, painting and assembling.
Mastervim is grateful to our OEM customers and suppliers for their trust and support. Please bring your suggestions for improvement to us in our efforts to make a better company. We look forward to serving you in the future.
- Instant Response: 7 x 24 hours online, reply within 3 hours
- Quick Shipping: Big 3 broker partner -MSC COSCO shipping lines, familiar with America AU EU
- OEM Advantages: Unique R&D capability/3D printer Virtua modeling/20 years experience
- Quality Control: Word famous QC system/TUV SGS DOT/Quality guarantee
