Model NO.
HML-M4
Mobility
Adjustable
Height
0-5m
Weight
1500kg
Closed
Open
Development
New Type
Serviceability
Common Use
Company Type
China Professional Manufacturer
Product Warranty
1 Year
M4-Base
1545L*1050W*310 mm
M4-Post
1510L*60W*2.5 mm
Load in 40hq
247 Sets
Loading Capacity
1500kg
Stackability
4 High
Finish
Hot DIP Galvanized
Remark
Customized and OEM Support
Available Accessories
Forklift Guide, Bag, Wheels, etc.
Product Shelf Life
up to 3 or 5 Years Against Proper Handling
Posts
Detachable
Color
Optional
Stackable
Yes
Sample
Offered
Transport Package
Plastic Banding+Stretch Film Wrapped.
Specification
Mild steel Q235
Trademark
HML
Origin
Liaoning, China
HS Code
7326909000
Production Capacity
6000 Sets Per Month
After-sales Service:
1 Year
Warranty:
1 Year
Usage:
Tool Rack, Tools, Industrial, Warehouse Rack
Material:
Steel
Structure:
Rack
Type:
Pallet Racking
Similar products of steel rack

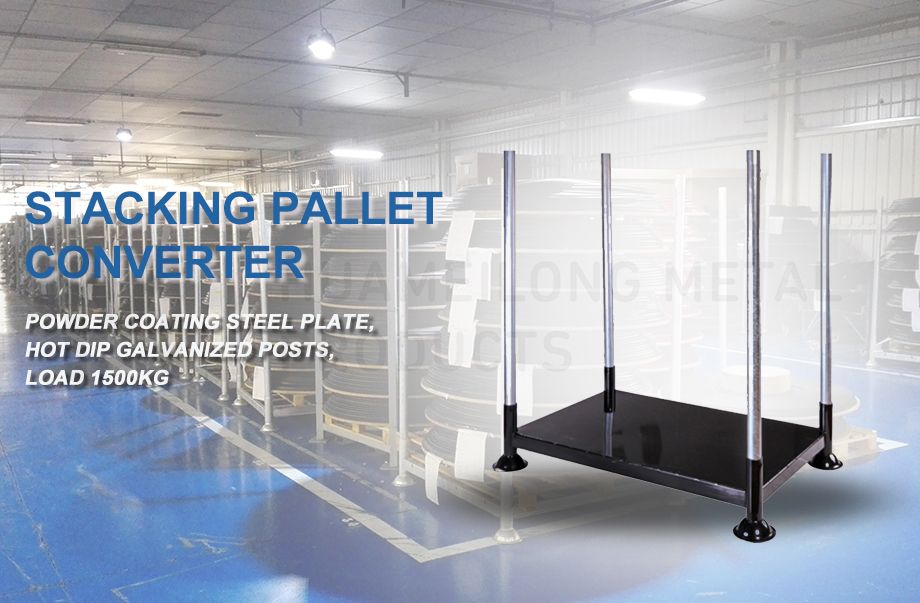

Warehouse industrial storage portable movable stacking heavy duty steel rack
Added powder coating steel plate, hot dip galvanized posts, load 1500kg
Specification of heavy duty steel rack
Customized of stacking steel rack
Application, packaging & loading of movable steel rack
Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized).
Warehouse industrial storage portable movable stacking heavy duty steel rack
Added powder coating steel plate, hot dip galvanized posts, load 1500kg
Specification of heavy duty steel rack
| Similar design, different sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 250 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 1000 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 150 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 600 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 250 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1000 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 640 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key features | 1.Strong tubular steel - stack up to 4 high 2.Removable arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use | ||||
Customized of stacking steel rack
Application, packaging & loading of movable steel rack
Other kinds of metal products for your choice, OEM, ODM, Customized are all welcomed!
FAQ1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized).
