Model NO.
SL-R19
Weight
500kg
Closed
Open
Development
New Type
Serviceability
for Special Purpose
Upright
3000mm
Arm Length
600mm
Thickness of Steel
0.8-2.5mm
Fast Delivery
21 Days
Sureface Treatment
Power Coating
Warranty
5 Years
Scale
Double Side Medium Duty Cantilever Rack
Other Details
Adjustable by 75mm
Features
Corrosion Protection
Certifications
SGS/Ce/ISO9001/As4084
Transport Package
Film Foam
Specification
Depends on goods specification
Trademark
SunLi
Origin
China
HS Code
7308900000
Production Capacity
20000tons/Year
Usage:
Tool Rack, Beverage, Clothing, Food, Industrial, Warehouse Rack
Material:
Steel
Structure:
Cantilever Rack
Type:
Multi-Level Racking
Mobility:
Adjustable
Height:
0-5m

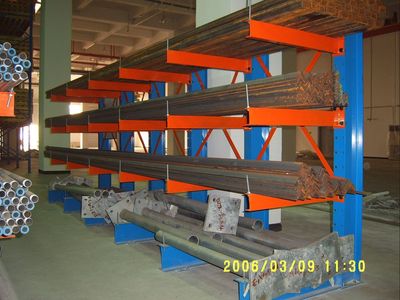

I-Beam Storage Double Side Medium Duty Cantilever Rack
Main Feature&Components for Sunli Cantilever rack
The "Christmas tree" theory behind cantilever rack is what makes it so appealing.
There are four main parts to the cantilever rack concept:
Uprights: vertical columns in the back that are bolted to a base
Bases: To maintain the balance during weight-laden from cantilever arms
Arms: strong "limbs" extending out from the uprights
Braces: the hardware holding the arms, uprights, and base together
Technical Description for cantilever storage rack
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
Main Feature&Components for Sunli Cantilever rack
The "Christmas tree" theory behind cantilever rack is what makes it so appealing.
There are four main parts to the cantilever rack concept:
Uprights: vertical columns in the back that are bolted to a base
Bases: To maintain the balance during weight-laden from cantilever arms
Arms: strong "limbs" extending out from the uprights
Braces: the hardware holding the arms, uprights, and base together
Technical Description for cantilever storage rack
| Style | long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage |
| Thickness | Column/bases/cantilever arms: 2.0mm~4.0mm Connectors/braces: 1.5~1.8MM |
| Cantilever arm length | Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm) |
Column length | Cantilever arm length + extra 400~500MM |
MOQ | 2 units |
| The width between columns | 800MM ( narrow space will make stronger loading on cantilever ) |
Material | Made of Q235B steel |
Lead time | 25~30days( regardless of purchase quantities) |
Stock | We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed) |
Colour | RAL 5015( blue) + RAL 2004(Orange) |
Load | Load capacity is 500kg to 1TON per arm |
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
