Model NO.
Pressure Guide(Flat and T-shaped)
Speed
1.00-2.00m/s
Drive Mode
Manual
Control Type
Microcomputer Frequency Control
Lift Mechanism
Telescoping Lift
Use of Occasions
Public Traffic
Guide Rail
Hollow Guide
Used
Elevator Parts
Characteristics
Reliable and Safety
Model
Solid/Hollow Guide Rail
Guide Rail Type
T Guide
Transport Package
in Carton Box
Specification
CE, ISO9001, CCC
Trademark
Sunny
Origin
Shanghai China
Production Capacity
20000PCS/Month

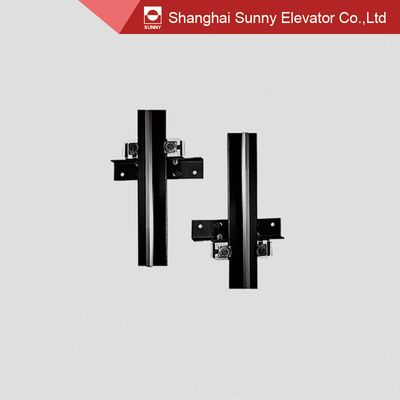

Elevator Guide Rail Accessories for Passenger Elevator
About us
| Connector dimensions and tolerances | ||||||||||||||
| b2 | h3 | k1 | u | p | b3 | r2 | d | L1 | L2 | L3 | Standard | |||
| Type | Tolerance (mm) | JG/T 5072.3-1996 | ||||||||||||
| ±0.2 | ±0.4 | |||||||||||||
| LK3 | 87 | 50 | 12 | 3 | 50 | 3 | 14 | 400 | 180 | 20 | ||||
| LK5 | 58 | 10 | 4.5 | 5.5 | ||||||||||
| LK8 | 102 | 76 | 12.6 | 4.5 | 64 | 6 | 450 | 200 | 25 | |||||
| LK3A | 78 | 50 | 12 | 3 | 44 | 3 | 400 | 180 | 20 | |||||
| LK5A | 58 | 10 | 4.5 | 5.5 | ||||||||||
| Type | Tolerance (mm) | GB/T 30977-2014 | ||||||||||||
| ±0.2 | ±0.5 | ±1.5 | ±0.5 | ±0.3 | ||||||||||
| LK3 | 87 | 50 | 12 | 3 | 50 | 4 | 14 | 400 | 180 | 20 | ||||
| LK5 | 58 | 10 | 4.5 | 4.5 | 5 | |||||||||
| LK8 | 102 | 76 | 12.6 | 4.5 | 64 | 5 | 450 | 200 | 25 | |||||
| LK3A | 78 | 50 | 12 | 3 | 44 | 4 | 11.5 | 200 | 180 | 20 | ||||
| LK5A-1 | 58 | 10.4 | 4.5 | 4.5 | 5 | |||||||||
| LK5A | 58 | 10 | 4.5 | 4.5 | 5 | |||||||||
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 30-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
