Model NO.
HTC9401JZV
Tread
1820mm
Grade
Heavy Duty
Independent Suspension Type
Multi-link Type
Shape
Flatbed
Axle Number
2,3,4
Tire Number
8,12,16
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
No ABS Anti-lock Braking System
Material
Steel
Condition
New
Scale
Heavy Duty
Trailer Type
Flatbed Container Trailer
Trailer Condition
Brand New
Sidewall
Option, 600,800,1000mm
Axle Brand
Fuwa, BPW, Yuek
Capacity
50/60 Tons
Transport Package
Nude Packing
Specification
CCC
Trademark
CIMC
Origin
China
HS Code
8701200000
Production Capacity
1000 PCS/Month
After-sales Service:
1
Warranty:
1
Type:
Semi-Trailer
Load Capacity:
50T
Certification:
ISO9001, CCC, ISO/TS16949
Wheel Base:
7000-8000mm

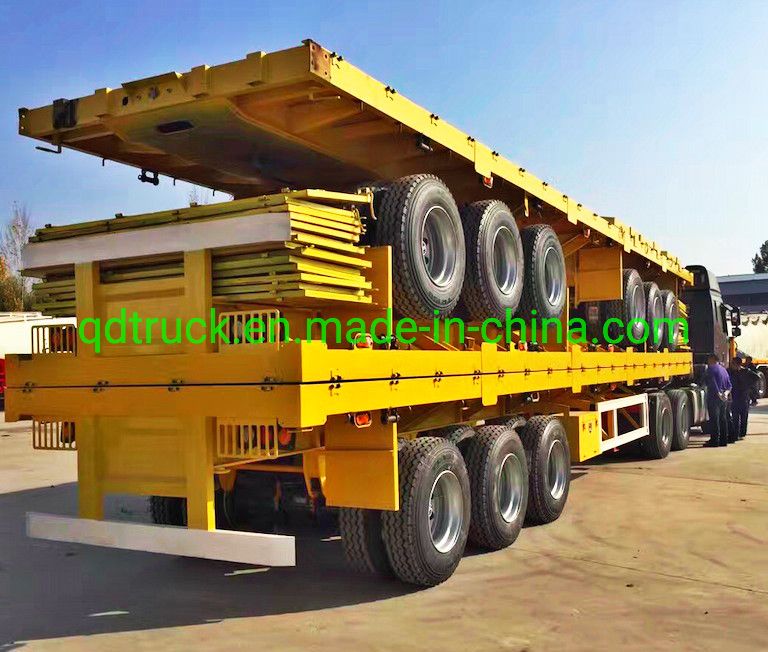

40feet cargo trailers 3 axles semi trailer/ 50 60 tons Utility Flat Bed Container Trailer
40ft carry container semi truck
1. Iso 40', 20' container carrier
2. Double or three axle
3. FUWA 13T axle
4.11.00R20/12.00R20
Flatbed bed container semi-Trailer, Flatbed Semi Trailer, Container Semi Trailer, Semi Trailer, Semi-Trailer, Trailer and etc.
1. Tare Weight 7200kg
2. Payload 50000kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier
12. Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
13. Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
14. Accessories One standard tool box
all types trucks, semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
40ft carry container semi truck
1. Iso 40', 20' container carrier
2. Double or three axle
3. FUWA 13T axle
4.11.00R20/12.00R20
Flatbed bed container semi-Trailer, Flatbed Semi Trailer, Container Semi Trailer, Semi Trailer, Semi-Trailer, Trailer and etc.
1. Tare Weight 7200kg
2. Payload 50000kg
3. Chassis: Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm, width 140mm; Middle Flange 6mm, height 500mm; Bottom Flange 16mm, width 140mm.
4. Axle: 2/3 axles of Germany design 12ton, 13 ton, 16 ton axle optional upon choice
5. Brand Name: FUWA -optional BPW
6. Suspension: Germany design heavy duty mechanical suspension or air suspension optional upon choice
7. Floor: 3mm checker plate Leaf Spring Doll type Leaf spring
8. King Pin: JOST brand 2" Bolt-in King Pin
9. Landing Gear: JOST brand Two-speed, manual operating, heavy duty Wheel Rim 8.25-20, 9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice
10. Tyre: 11.00R20, 12.00R20, 11R22.5, 12R22.5 tire with one spare tire optional upon choice
11. Twist Lock: 12 nos. Of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. Spare Tire One set of spare tire including a carrier
12. Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
13. Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
14. Accessories One standard tool box
| Technical Specifications | |
| Dimensions (L*W*H) mm: | 12375*2480*1510 |
| Fifth Wheel Coupling Height (mm): | 1200 |
| Loading Plate Height (mm): | 1430 |
| Front overhand (mm): | 900 |
| Number of wheel: | 3 |
| Wheel space (mm): | 7000+1356+1356 |
| TyreSpecification: | 10.00-20 |
| Steel rim: | 7.5-20 |
| Number of Tyre (pcs): | 12 |
| Tare Weight (kg): | 6000 |
| Rated Payload (kg): | 40000 |
| Total Mass (kg): | 48000 |
all types trucks, semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
