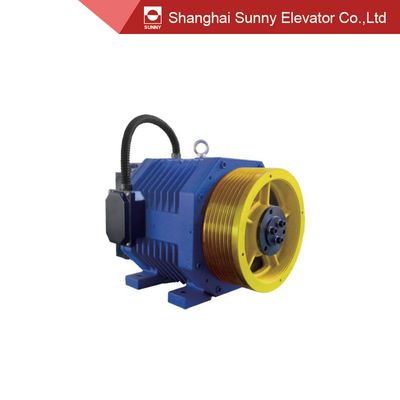

Belt Drive Villa Elevator PMS Machine
Features
1. Machine is made of aluminum alloy material, with good heat dissipation, small size and light weight;
2. Configured with shaft brake of low noise and compact structure;
3. Adopt two blance full sealed bears, free maintain;
4. Smooth running, excellent performance at low speed
Specifications
Model: SN-WYT-F PM Traction Machine | |||
Traction Machine Parameter | Brake Parameter | ||
Voltage | AC380V/ AC220V | Brake Model | BLS |
Roping | 2:1 | Ins. Class | F |
Wrap | Single | Voltage | DC110VDC |
Capacity | 400kg | Current | 1.1A |
Speed | 0.4m/s | ||
Protection Grade | IP41 | ||
Ins. Class | F | ||
Traction machine pole | 8 | ||
Starts per hour | 150 times per hour | ||
Rating | S5-25% | ||
Elevator Height | ≤20m | ||

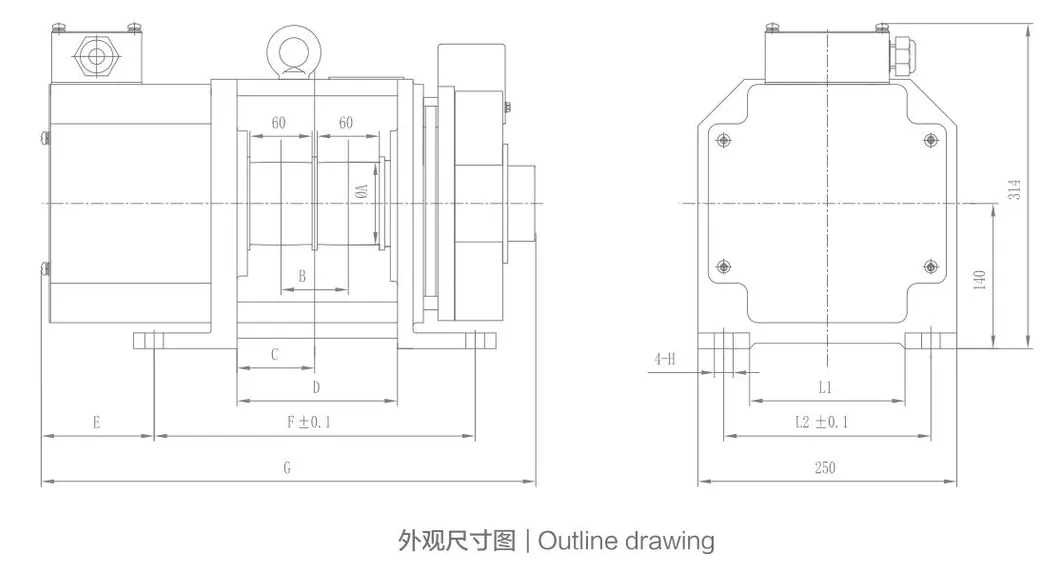

Outline drawing
