Model NO.
EPT20-13ET2
Production Capacity
3000units/Year
Name:
Electric Pallet Jack
Transport Package:
Seaworthy Packing
Specification:
CE, SGS, ISO
Trademark:
HYTGER
Origin:
Shanghai, China
Electric Pallet Jack Semi Electric Pallet Truck 1.0-1.5Ton
Technical Specification Of Pallet Jack:
Actual Photoes Of Pallet Jack:
Shipment & Payment:
1.T/T(100% T/T,30% deposit for production and 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.
FAQ:
1.Does the forklift battery can be changed?
Yes,as your request
2.Does the color can be customized?
Yes,all color are available.
3.Any kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
Contact Way:
Sales Name:Ken
SHANGHAI HYTGER INDUSTRY & TRADE CO.,LTD
Characteristics of Pallet Jack:
1.Load Capacity: 1000-1500kg
2.Lifting motor:0.78kw
3.SME/ZAPI/CURTIS AC power controller
4.ZAPI/CURTIS Controller
5.Long Life Rechargeable Batteries
6. Flexible car body, small turning radius.
Technical Specification Of Pallet Jack:
| Character | ||||||
| 1.1 | Manufacturer | HYTGER | HYTGER | |||
| 1.2 | Model designation | EPT20-13ET2 | EPT20-15ET2 | |||
| 1.3 | Drive unit | Full Electrics | Full Electrics | |||
| 1.4 | Operator type | pedestrian | pedestrian | |||
| 1.5 | rated capacity | Q | lb. | kg | 1300 | 1500 |
| 1.6 | Load center distance | c | in. | mm | 600 | 600 |
| 1.8 | Load distance | x | in. | mm | 889/946 | 889/946 |
| 1.9 | Wheelbase | y | in. | mm | 1261/1205 | 1261/1205 |
| Weight | ||||||
| 2.1 | Service weight (include battery) | lb. | kg | 195 | 195 | |
| 2.2 | Axle loading, laden driving side/loading side | lb. | kg | 505/990 | 565/1130 | |
| 2.3 | Axle loading, unladen driving side/loading side | lb. | kg | 155/40 | 155/40 | |
| Types,Chassis | ||||||
| 3.1 | Tyre type driving wheels/loading wheels | PU/ PU | PU/ PU | |||
| 3.2 | Tyre size, driving wheels(diameter×width) | in. | mm | 210x70 | 210x70 | |
| 3.3 | Tyre size, loading wheels(diameter×width) | in. | mm | 2x 78x60(78x88) | 2x 78x60(78x88) | |
| 3.4 | Tyre size, caster wheels(diameter×width) | in. | mm | / | ||
| 3.5 | Wheels, number driving,caster/loading (x=drive wheels) | in. | mm | 1x /4(1x /2) | 1x /4(1x /2) | |
| 3.6 | Track width, front,driving side | b10 | in. | mm | / | |
| 3.7 | Track width,rear,loading side | b11 | in. | mm | 410(535) | 410(535) |
| Dimensions | ||||||
| 4.4 | Lift height | h3 | in. | mm | 115 | 115 |
| 4.9 | Height drawbar in driving position min./max. | h14 | in. | mm | 790/1225 | 790/1225 |
| 4.15 | Lowered height | h13 | in. | mm | 80 | 80 |
| 4.19 | Overall length | l1 | in. | mm | 1638 | 1638 |
| 4.20 | Length to face of forks | l2 | in. | mm | 488 | 488 |
| 4.21 | Overall width | b1/ b2 | in. | mm | 568(685) | 568(685) |
| 4.22 | Fork dimensions | s/ e/ l | in. | mm | 50/150/1150 | 50/150/1150 |
| 4.25 | Distance between fork-arms | b5 | in. | mm | 560(685) | 560(685) |
| 4.32 | Ground clearance, center of wheelbase | m2 | in. | mm | 30 | 30 |
| 4.34.1 | Aisle width for pallets 1000 × 1200 crossways | Ast | in. | mm | 1739 | 1739 |
| 4.34.2 | Aisle width for pallets 800 × 1200 lengthways | Ast | in. | mm | 1939 | 1939 |
| 4.35 | Turning radius | Wa | in. | mm | 1485 | 1485 |
| Performance data | ||||||
| 5.1 | Travel speed, laden/ unladen | km/ h | mph | km/h | 4/4.5 | 4/4.5 |
| 5.2 | Lifting speed, laden/ unladen | fpm | m/ s | 0.029/0.038 | 0.029/0.038 | |
| 5.3 | Lowering speed, laden/ unladen | fpm | m/ s | 0.046/0.033 | 0.046/0.033 | |
| 5.8 | Max. gradeability, laden/unladen | % | 2/6 | 2/6 | ||
| 5.10 | Service brake type | Electromagnetic | Electromagnetic | |||
| Electric-engine | ||||||
| 6.1 | Drive motor rating S2 60 min | hp | kW | 0.6 | 0.65 | |
| 6.2 | Lift motor rating at S3 15% | hp | kW | 0.78 | 0.84 | |
| 6.3 | The maximum allowed size battery | in. | mm | |||
| 6.4 | Battery voltage/nominal capacity K20 | V/ Ah | 24/65 | 24/65 | ||
| 6.5 | Battery weight | lb. | kg | 22.5x2 | 22.5x2 | |
| Addition data | ||||||
| 8.1 | Type of drive control | DC | DC | |||
| 10.5 | Steering type | Mechanical | Mechanical | |||
| 10.7 | Sound pressure level at the driver's ear | dB (A) | 74 | 74 | ||

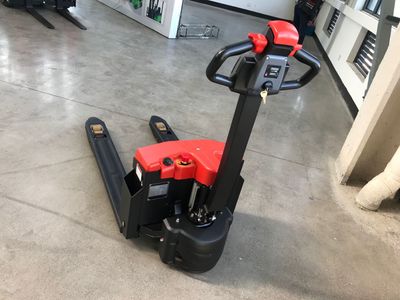

Actual Photoes Of Pallet Jack:
Shipment & Payment:
1.T/T(100% T/T,30% deposit for production and 70% balance of settlement for shipment)
2.L/C(100% L/C)
3.Shipment time:15-20 days after received the 70% balance.
FAQ:
1.Does the forklift battery can be changed?
Yes,as your request
2.Does the color can be customized?
Yes,all color are available.
3.Any kinds of forklift you can supply?
Diesel,gasoline,LPG dual fuel,electric power are available.
Contact Way:
Sales Name:Ken
SHANGHAI HYTGER INDUSTRY & TRADE CO.,LTD
