Model NO.
YDCQ
Operation Method
Manually or electrical drive
Shipping
40 Hq
Warranty
12 Months
Working area
dock, wahouse, etc.
Transport Package
Standard Export Packing
Specification
CE
Trademark
MORAL/OEM
Origin
Shandong, China
HS Code
842890
Production Capacity
500PCS/Year
Load Capacity:
5000kg-15000kg
Working Range:
1.0-1.7m
Overall Dimension:
11*2.08*1.3m
Support leg:
2 PCS, Manual
Main body frame:
Steel tube
Color:
Blue, red, etc

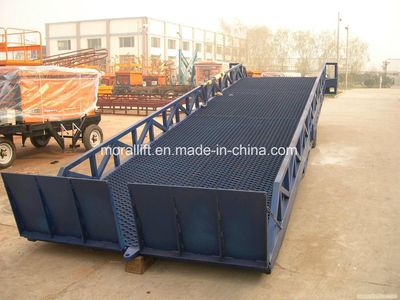

CE Approval Warehouse Hydraulic Container Loading Dock Ramp
Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
Main features:
1)Hydraulic system
With handle pump, screw the return valve clockwise. Move the handle stick, to lift the ramp slowly. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles.
4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must exteral electric power can be easily realized cllimbing height adjustment.
5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
6)Hinge transition
Adjustable length of cable chains used to hook vehicles, make cllimbing and vehicles, even shift, always close together joint.
7)Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure: Compound high strength, the characteristics of large carrying capacity.
8)Antiskid steel nets
Laying a layer above the bridge body slippery anilox steel plates. Mesh is distorted and hollow out, not only improved the reliability and work can prevent grease, dirt and ice accumulation.
9)Safety crack-proof valve
In addition to the relief valve, in order to prevent the tubing rupture, occur because of the accident, hydraulic systems of decline set in pipeline rupture types. The valve, when oil will automatically lock.
Safe operation:
1. While the ramp is under using, the table should be kept in level and be stable. Move speed: 3km/h
2. While the ramp falls down, the person climbing is forbidden.
3. Overloading is forbidden.
4. Keeping the hydraulic oil clean, without the mixture of water or other impurity. The oil changing is normally half year. The model of oil is N32# in winter, and N46# in summer.
5. When the emergency occurs, the operation must be stopped immediately to repair troubles.
Note: The tyre of yard ramp is only used to move the machine, after you land the legs, let out the hydraulic oil of the cylinders, or the heavy loading will break the cylinders and the tyres. For the tyre and cylinders of ramp don't carry the load. The tyre is for move, and the cylinder is used for change the working height.
Parameter:
Pictures:
Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
Main features:
1)Hydraulic system
With handle pump, screw the return valve clockwise. Move the handle stick, to lift the ramp slowly. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
2)Heavy-duty mobile chakra
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
3)Spin adjustable a leg
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles.
4)Manual hydraulic elevator system
Using artificial hydraulic power, don't must exteral electric power can be easily realized cllimbing height adjustment.
5)Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
6)Hinge transition
Adjustable length of cable chains used to hook vehicles, make cllimbing and vehicles, even shift, always close together joint.
7)Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure: Compound high strength, the characteristics of large carrying capacity.
8)Antiskid steel nets
Laying a layer above the bridge body slippery anilox steel plates. Mesh is distorted and hollow out, not only improved the reliability and work can prevent grease, dirt and ice accumulation.
9)Safety crack-proof valve
In addition to the relief valve, in order to prevent the tubing rupture, occur because of the accident, hydraulic systems of decline set in pipeline rupture types. The valve, when oil will automatically lock.
Safe operation:
1. While the ramp is under using, the table should be kept in level and be stable. Move speed: 3km/h
2. While the ramp falls down, the person climbing is forbidden.
3. Overloading is forbidden.
4. Keeping the hydraulic oil clean, without the mixture of water or other impurity. The oil changing is normally half year. The model of oil is N32# in winter, and N46# in summer.
5. When the emergency occurs, the operation must be stopped immediately to repair troubles.
Note: The tyre of yard ramp is only used to move the machine, after you land the legs, let out the hydraulic oil of the cylinders, or the heavy loading will break the cylinders and the tyres. For the tyre and cylinders of ramp don't carry the load. The tyre is for move, and the cylinder is used for change the working height.
Parameter:
| Model | Load Capacity | Working height Range(m) | Maximum elevations | Overall Dimensions(m) | Operation Method |
| YDCQ-5 | 5 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electrical drive |
| YDCQ-6 | 6 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electri cal drive |
| YDCQ-8 | 8 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electri cal drive |
| YDCQ-10 | 10 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electri cal drive |
| YDCQ-12 | 12 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electri cal drive |
| YDCQ-15 | 15 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manually or electri cal drive |
Pictures:
