Model NO.
JCW
Starting Carburation System
Choke Valve
Gear Position
Forward-Neutral-Reverse
Type
Four Stroke Outboard Motor Engine
Material
Alloy
Transport Package
CTN, Standard Export Package; Carton
Specification
CE, SGS, ISO9001
Trademark
EARROW
Origin
Ningbo Zhejiang China
HS Code
84072100
Production Capacity
20000units/Year
Recommended Fuel:
Unleaded Gasoline
Colour:
Jewelry Blue, Pearl White, Dark Grey
Ignition System:
Cdi
Control System:
Tiller Handle
Starting System:
Manual
Displacement:
139cc
Our advantage:
1, Most die casting parts and plastic parts are made by our own factory, assure the quality control
2, We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;
3, Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;
4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;
5, Besides the gasoline outboards, we can also supply propane outboards;
6, Different color available: Pearl white, Dark grey, Jewelry blue
Our future:
Our company will insist on producting and researching in outboard motors, now Our propane motor is available!
We are looking for the best chance to cooperate with friend all over the world.
If you have interest, please do not hesitate to contact with us!
About Us

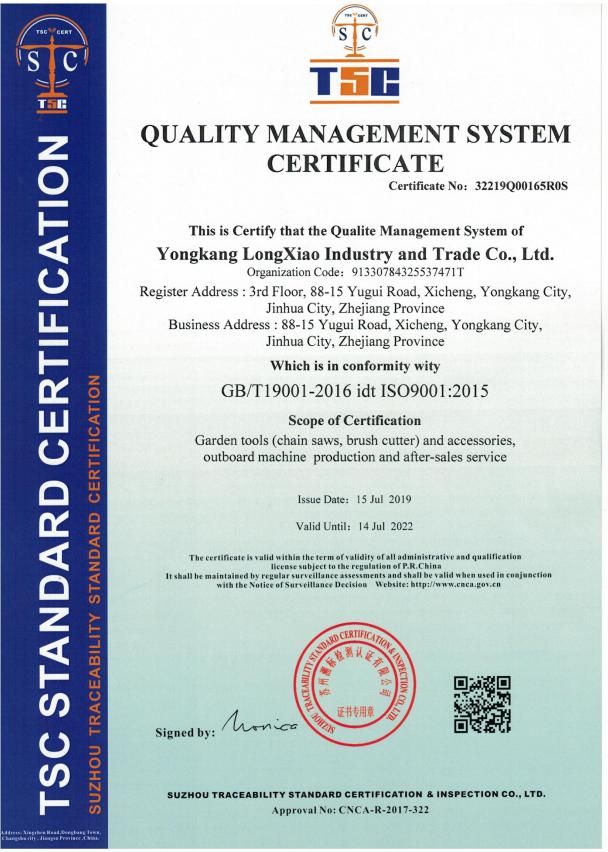

We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.
Our product range is from 2.5hp to 30hp, both two and four stroke are available.
Product real shot
1, Most die casting parts and plastic parts are made by our own factory, assure the quality control
2, We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;
3, Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;
4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;
5, Besides the gasoline outboards, we can also supply propane outboards;
6, Different color available: Pearl white, Dark grey, Jewelry blue
Our future:
Our company will insist on producting and researching in outboard motors, now Our propane motor is available!
We are looking for the best chance to cooperate with friend all over the world.
If you have interest, please do not hesitate to contact with us!
| Model | F2.5A | F4B | F5C | F6C | |||||||||||||||||
| Dimension | Overall length | 623mm (24.5in) | 750mm (29.5in) | 750mm (29.5in) | 750mm (29.5in) | ||||||||||||||||
| Overall width | 345mm (13.6 in) | 333mm (13.1in) | 333mm (13.1in) | 333mm (13.1in) | |||||||||||||||||
| Overall height S | 1021mm (40.2in) | 1040mm (40.29in) | 1040mm (40.29in) | 1040mm (40.29in) | |||||||||||||||||
| Overall height L | 1150mm (45.3in) | 1168mm (46in) | 1168mm (46in) | 1168mm (46in) | |||||||||||||||||
| Net weight (S/L) | 17KG | 27kg/ 28kg | 27kg/ 28kg | 27kg/ 28kg | |||||||||||||||||
| Gross weight (S/L) | 24KG | 35kg/ 36kg | 35kg/ 36kg | 35kg/ 36kg | |||||||||||||||||
| Package Size (S/L) | 111*44.5*49 cm³/ 124*44.5*49 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ | 115*45*57.5 cm³ / 128*45*57.5 cm³ | |||||||||||||||||
| Full Throttle Operating Range | 5250-5750 r/m | 4000-5000 r/m | 4500-5500 r/m | 4500-5500 r/m | |||||||||||||||||
| Maximum Output | 1.8kw/2.5hp | 2.9kw/4hp | 3.6kw/5hp | 4.4kw/6hp | |||||||||||||||||
| Idling Speed | 1900±100r/m | 1500±50r/m | 1500±50r/m | 1500±50r/m | |||||||||||||||||
| Type | Four Stroke | Four Stroke | Four Stroke | Four Stroke | |||||||||||||||||
| Displacement | 72cc | 139cc | 139cc | 139cc | |||||||||||||||||
| Bore×Stroke | 54.0×31.5 mm | 62×46mm | 62×46mm | 62×46mm | |||||||||||||||||
| Ignition System | TCI | CDI | CDI | CDI | |||||||||||||||||
| Spark Plug | NGK BR7HS-10 | NGK BR7HS-10 | NGK BR7HS-10 | NGK BR7HS-10 | |||||||||||||||||
| Spark Plug Gap | 0.6-0.7mm | 0.6-0.7mm | 0.6-0.7mm | 0.6-0.7mm | |||||||||||||||||
| Control System | Tiller Handle | Tiller Handle | Tiller Handle | Tiller Handle | |||||||||||||||||
| Starting System | Manual | Manual | Manual | Manual | |||||||||||||||||
| Starting Carburation System | Choke Valve | Choke Valve | Choke Valve | Choke Valve | |||||||||||||||||
| Gear Position | Forward-Neutral | Forward-Neutral-Reverse | Forward-Neutral-Reverse | Forward-Neutral-Reverse | |||||||||||||||||
| Gear Ratio | 2.08 (27:13) | 2.08 (27:13) | 2.08 (27:13) | 2.08 (27:13) | |||||||||||||||||
| Trim and Tilt System | Manual Tilt | Manual Tilt | Manual Tilt | Manual Tilt | |||||||||||||||||
| Recommended Fuel | Unleaded Gasoline | Unleaded Gasoline | Unleaded Gasoline | Unleaded Gasoline | |||||||||||||||||
| Gear Oil | 0.075L | 0.1L | 0.1L | 0.1L | |||||||||||||||||
| Fuel Tank Capacity | 0.9 L | 1.1L | 1.1L | 1.1L | |||||||||||||||||
About Us
We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.
Our product range is from 2.5hp to 30hp, both two and four stroke are available.
