Material
Cast Steel/ Iron
Type
Bollard
Certificate
CCS, Gl, Dnv, BV, ABS, Rina, Kr, RS etc
Stype
Single/Double/Cross Type
Size
as Per Request
Color
as Per Your Requirement
Capacity
5-200t
Transport Package
Export Standard Packing or as Required
Specification
As per request
Trademark
WEITONG MARINE/OEM
Origin
China
HS Code
73160000
Production Capacity
10000/Piece/Per Year
After-sales Service:
Guarantee Repair
Warranty:
Three Years
Application:
Boat, Yacht
Standard:
GB, DIN, JIS, ISO
Customized:
Customized
Surface Treatment:
Polished/ Galvanized

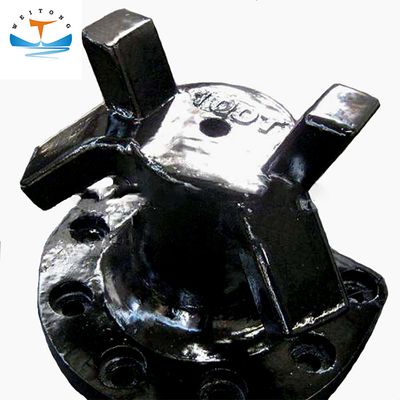

Custom Cast Iron Marine T Head Type Mooring Bollard For Boat
DIN Double Bollard is designed according to the DIN82607 standard. We offers kinds of dock bollard for your option, such as Single Cross Bollard, Double Cross Bollard, Weld inclined bollard, double Bitt Ventilation Bollard, Double Cross Ventilation Bollard, etc.
Material: Cast iron, Cast Steel,Ductile Iron
Surface: Polished, galvanized, bitumen painted or as your requirement
Application: Built on the side of a river or harbour. Boats are tied to them.
DIN Double Bollard Certificate: ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any question or inquiry, please feel free to contact us for more details.
Ms Kate
Website: findtextile.com/store/weitongmarine
Certificate:
Workshop:
DIN Double Bollard is designed according to the DIN82607 standard. We offers kinds of dock bollard for your option, such as Single Cross Bollard, Double Cross Bollard, Weld inclined bollard, double Bitt Ventilation Bollard, Double Cross Ventilation Bollard, etc.
Material: Cast iron, Cast Steel,Ductile Iron
Surface: Polished, galvanized, bitumen painted or as your requirement
Application: Built on the side of a river or harbour. Boats are tied to them.
DIN Double Bollard Certificate: ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification
Bolts Qty | Capacity(Tonnes) | Dimensions(mm) | |||||||
A | B | C | D | E | F | G | H | ||
4 | 10 | 200 | 216 | 236 | 160 | 106 | 218 | 120 | 32 |
4 | 25 | 245 | 350 | 305 | 250 | 150 | 285 | 127 | 45 |
5 | 30 | 290 | 430 | 410 | 360 | 190 | 360 | 150 | 45 |
5 | 50 | 365 | 550 | 540 | 430 | 250 | 475 | 200 | 50 |
5 | 75 | 430 | 650 | 650 | 520 | 300 | 570 | 235 | 70 |
5 | 80 | 415 | 518 | 540 | 430 | 250 | 430 | 245 | 55 |
7 | 120 | 490 | 678 | 642 | 600 | 330 | 584 | 290 | 65 |
7 | 200 | 520 | 950 | 780 | 680 | 360 | 670 | 306 | 80 |
7 | 200 | 600 | 950 | 780 | 680 | 360 | 670 | 386 | 80 |
8 | 200 | 656 | 1020 | 930 | 800 | 460 | 830 | 349 | 100 |
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
If you have any question or inquiry, please feel free to contact us for more details.
Ms Kate
Website: findtextile.com/store/weitongmarine
Certificate:
Workshop:
