Model NO.
2534K
Seats
≤5
Horsepower
251-350hp
Tire Certification
ISO
Tire Design
Radial
Dumping Type
Front Lifting Style
Condition
New
Cabin
Ng80
Engine
Wp10.340e32
Gearbox
9js150A
Axles
Benz
Certificates
ISO, CCC
Tyre
Radial 12.00r20
Transport Package
Nude
Specification
EuroIII
Trademark
BEIBEN
Origin
China
HS Code
8704230090
Production Capacity
10000 Units/Year

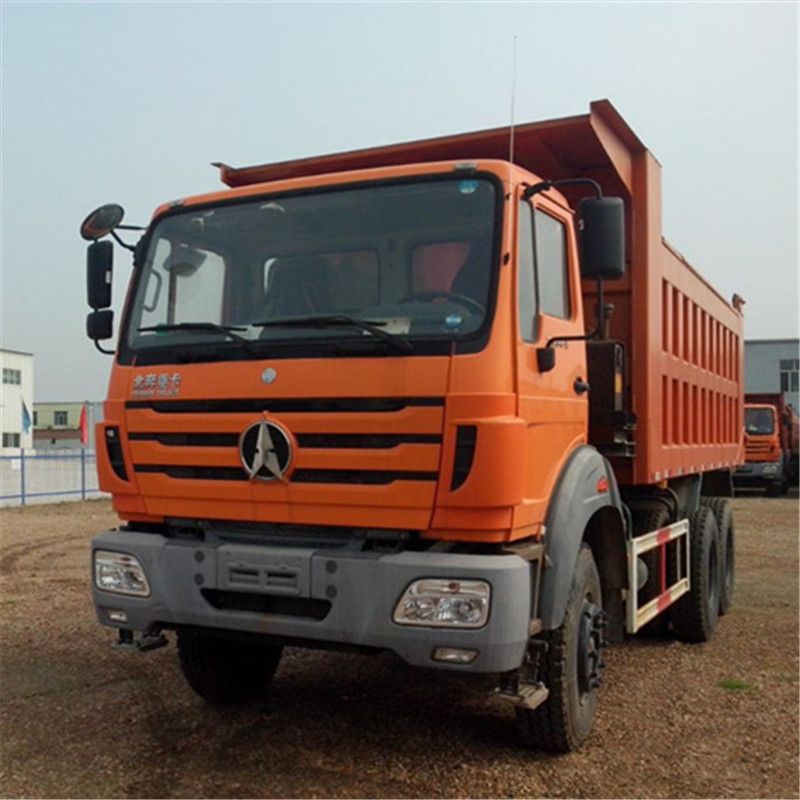

1. BEIBEN dump truck 6X4
2. Based on Mercedes Benz technology
3. European technology 336HP WEICHAI engine
4. FAST (Fuller technology) gearbox
5. Suitable for tough road condition
6. Emission standard Euro II
7. RHD is optional
8. Timely delivery
2. Based on Mercedes Benz technology
3. European technology 336HP WEICHAI engine
4. FAST (Fuller technology) gearbox
5. Suitable for tough road condition
6. Emission standard Euro II
7. RHD is optional
8. Timely delivery
| Model | 6x4 dump truck | ||
| Cabin | Full steel skeleton structure, overall interior and instrumental platform, radio player, adjustable steering wheel ; Can be tipped forwardly | ||
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | ||
| MAX Horse power: | 336HP/247KW | ||
| Displacement(L): | 9.726liter | ||
| Max torque: | 1500NM@1100-1600rpm | ||
| Bore/stoke: | 126mm/130mm | ||
| Fuel consumption | 198g/kW.h | ||
| Gear box | Max torque:1500NM | ||
| Model: | FAST 9JS150A, mechanism, manual | ||
| Speed: | 9speed,1reverse | ||
| Axle(front/rear) | |||
| Front axle | BENZ 7.5 ton double-shoe pneumatic brake, non-driving steering axle | ||
| Tandem | BENZ double-shoe pneumatic brake, casting, double reduction driving axle | ||
| Clutch | Single dry frictional disc, Hydraulic boosting | ||
| Brake | Service brake: double circulation air brake system | ||
| Parking brake: Potential springs pressing on middle and rear wheels | |||
| Engine brake: Engine exhaust brake(EVB) | |||
| Steering | ZJ120D, driver sit at the left hand side | ||
| Electric Equipment | |||
| Operating voltage: | 24Vnegative grounded | ||
| Starter: | 24V,5.4KW | ||
| Alternator | 28V,758W | ||
| Battery voltage | 12V/135Ah,cigar lighter | ||
| Frame | Fish belly shape, variable width, variable sections strengthen frame design as tough road | ||
| Tyre | 10+1 spare tire with rim | ||
| 12.00R20 radial tire | |||
| Suspension system: strengthen heavy duty Leaf spring type | |||
| Front/Rear | 10/13 | ||
| Dump body: type of body : | |||
| Inside size of Body(mm): 5200x2300x1000,8x6mm, made of high intensity steel | |||
| Lifting type: Middle lifter "T" type hydraulic system. | |||
| Overall dimension(mm): 8530x2500x3310(Length x width x height) | |||
| Wheelbase | 3800+1450mm | ||
| Track: | |||
| Front/Rear | 1995/1800 | ||
| Approach/Departure angle | 26/32 | ||
| Front /Rear overhang | 1410/1870 | ||
| Max speed | 90km/h | ||
| Curb weight: | 12200kg | ||
| Oil tank | 300L fuel tank | ||
