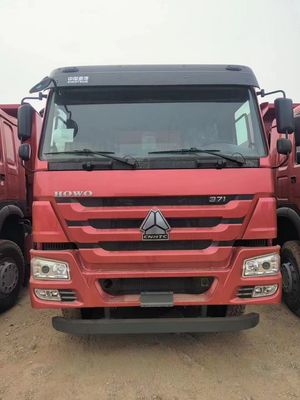

SINOTRUK HOWO 6X4 Tipper Truck
Model 25/30 ton payload capacity dump truck
Traction 6X4
Power 371HP
Weight Parameter
Complete Vehicle Kerb Mass(kg) 12250
Maximum authorized total mass (kg) 30000
Dimension Parameter
External Dimensions(mm) 8545X2496X 3170
wheelbase(mm) 3625+1350
Internal cargo Sizes 5800X2300X1500
Performance Parameter
Maximum Speed(km/h) 101
Turning diameter(m) 16
Recommended Configuration
Engine Type WD615.47
Rated power(kW)/Rev(r/min) 247/2200
Transmission Manual operation,10 forward & 2reverse with
no synchronizer
Front Axle Payload(kg) 9000
Rear Axle Payload(kg) 16000x2
Fuel Tank(L) 300
Track(mm) 2022+1830
Front overhang/rear overhang(mm) 1500/2295
Tire 12.00-20
Cabin
Standard cab with One sleeper, with 4-point support fully floating suspension and shock absorbers,
with air conditioner
OTHER
ABS optional
COLOR optional
