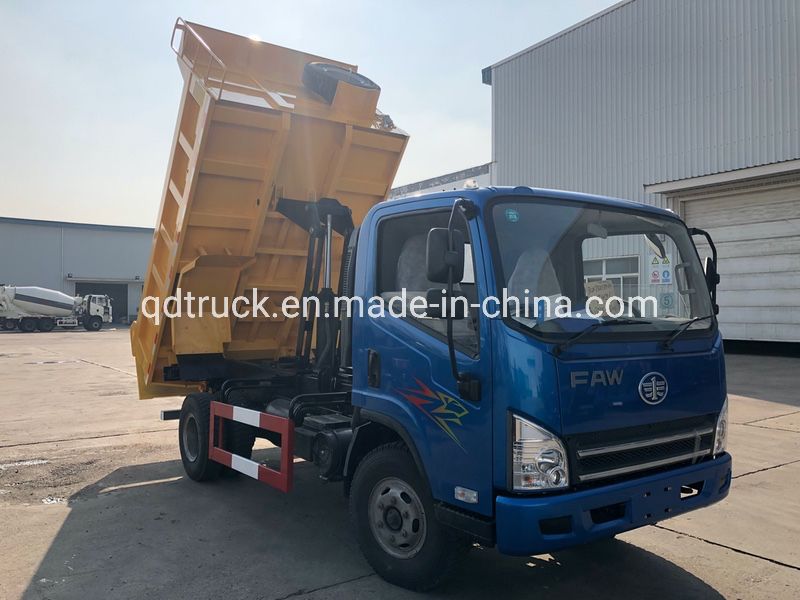

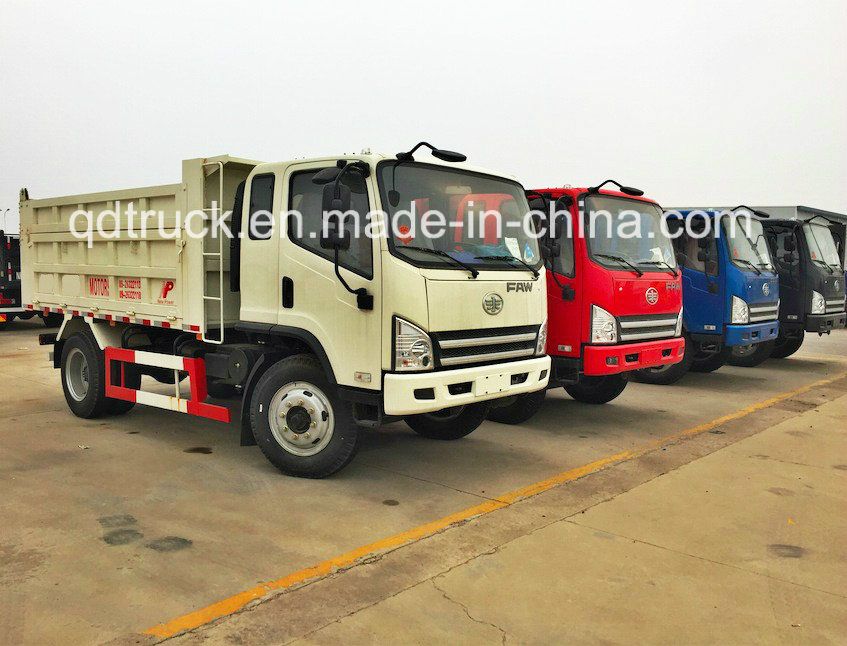

3-5 Tons Dump truck / Tipper truck , small dump truck , light dump truck , dump truck FAW
Company information
We're one specialist truck refitting and semi trailer manufacturer in China, we could supply various special purpose trucks and semi trailers. Our products are always popular in China several years.
From 2005, China allow exporting completed truck and semitrailer. We established overseas department that year and exported more than 30 counties promptly. Our products got almost clients' love and admiration. We appreciate our clients' fully trust to us, and remember the responsibility every moment.
There're too much processes need to do during producing, we never dare to reduce anyone. And we never dare to reduce any material although it's expensive. All of these only for ensure the high quality and excellent performance.
Respectful , Faithful , Studious , Innovative . Our progress never could leave your supporting. Warmly welcome your coming!
Specifications:
TRUCK SPECS | Overall dimension: | 5998x2296x2510mm | |
| Cabin | Cabin size: | standard cabin(2 seats) | |
| Seats and sleeper Bed: | 2 seats/ | ||
| Air conditioner: | standard | ||
| Engine | Horsepower(hp): |
130 | |
| Tech: | FAW/ YUCHAI/ CUMMINS tech | ||
| Engine Type: | 4-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled | ||
| Emission Standard: | EUR 2,3,4,5 | ||
| Fuel Type: | Diesel | ||
| Engine Capacity(ml): | 3186/ 3826 | ||
| Gear Box/Transmission | 5 /6 speeds and 1 reverse speed | ||
| Clutch | Φ350 | ||
| Axles | Front Axles: | 3.5T | |
| Driving Axles: | 7T | ||
| Tyre: | 7.00R20,6 Radial tires with one spare tire | ||
| Max speed: | 75km/h | ||
| Tare weight(MT): | 8MT | ||
BODY SPECS | Body Dimensions (LengthXWidthXHeight): | 3800X2300X400mm 4000x2300x600mm | |
| Material: | Q235 | ||
| Body steel (mm): | floor 4mm,side 3mm | ||
| Cpacibility(M3): | 6CBM | ||
| Lift System: | hydraulic system with power assistance | ||
| Wheel base: | 3250/3850mm(12.55x4.43ft) | ||
| Track Width(front/rear): | 2041/1830mm(7.91x6ft) | ||
| Overhang(front/rear): | 1500/1870mm(7.55x6.14ft) | ||
| Approach/Departure Angle: | 19°/23° | ||
Contact Information:
Product Description:
1) FAW or CUMMINS engine, 100-140HP
2) Euro 2/3 emission standard
3) Middle & Front lift
4) 7.50R20
5)Frame 200*70*7
6)Axle Base 3850
7)Fuel Tank 150
8)Carriage 3800*2000*800
(1)Competitive Factory Price and Excellent Quality
(2)More than 40 years' experience as a manufacturer, more than 12 years exporting experience.
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 30 countries and regions
(7) One year quality guarantee or within 100000km, which comes first.
(8) Other spare part could be supplied by OEM at cost prices.
(9) Regularly callback to know the vehicle's working status.
(10) The overseas engineers are always ready to deal with unexpected needs.
FAQ
Q: What can we do?
A: We can supply you the trailers manufactured with brand parts and competitive price. Also we provide you the proposal for you need.
Q: How can you transport the trailer?
A:We can deliver the trailers via 40FT container (flatbed, drop-side trailers) or RO-RO ship.
Q: How can you ensure your quanlity?
A:Before put into any production, we confirm you the final drawing first and our technicians and QC will stick to the whole process. You are welcomed to check before delivery.
Q: How can you ensure the trailer in good condition when I receive it?
A:Any product will be polished with wax before leave factory yard in case seawater corrosion
during shipping time
Q: Can I have my own logo and painting?
A:Sure, your products will be designed as you need.
Welcome you to visit our factory !
1.We can pick up you in the airport port;
2.Book the hotel for you;
3.Show you around the workshop and production line;
4. We can supply the truck parts;
5. We can supply the stock trucks if you need the trucks urgently.
Contact Information:
Brand New FAW 3 Ton Light Tipper Truck
Type: CA3075
Cabin: Tiger V with A/C
Engine: CA498E3-12 120HP
Transmission: 6-35
Rear Axle model: CA1082 (5.833)
Tire: 7.00R20 16PR
Overall dimensions Length: 6100mm
Width: 2190mm
Height: 2700mm
Axle base (full load): 3850mm
Front overhang(loaded): 1330mm
Rear overhang(loaded): 1680mm
Passing angle(loaded) Approach angle: 28
Departure angle: 32
Parameter Curb weight (kg): 6640
Gross truck weight(kg): 11835
Payload weight(kg): 8000
Dimension cargo box(H X W X H): 3600/4000X2080X400mm.
Color: RED/ YELLOW/ WHITE/ BLUE
| Chassis model | CA3058P40K2EA81 | Overall dimension(L*W*H)(mm) | 6067*2290*2440 |
| Gross weight | 7165 (kg) | Approach angle/ Departure angle | 18/15 (°) |
| Rated payload | 3990(kg) | Front/rear suspension | 1330/ 1587(mm) |
| Kerb weight | 3130 (kg) | Max speed | 90 (km/h) |
| Engine | CA4DC2-12E3F | ||
| Displacement | 3682 (ml) | Power | 85 (kw) |
| Emission standard | GB3847-2005,GB17691-2005 Euro 3 | ||
| Axle No. | 2 | Front tread | 1914 (mm) |
| Wheelbase | 3750 (mm) | Rear tread | 1847(mm) |
| Tyre No. | 6+1 | Tyre specification | 7.50-20 |
| Fuel type | Diesel | Leaf spring No. | 12/14+9 |
| Axle load | 2365/4800 | Passenger No. | 3 |
all types trucks,semi trailers, low bed semi trailer, container transport semi trailer, side wall semi trailer, store house bar series, van series, car carrier semi trailer ,dump trailer, tanker trailer series, concrete mixer truck series etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for tires. Our products are mainly exported to Philippine, Tunisia, Vietnam, Tanzania, Angola, Mongolia, Venezuela, UAE, Kenya, ect
1) Manufacturer, more than 14yrs professional experience.
2) CCC,SGS and ISO9001 certificate, one year guarantee term provided.
3) Small order can be accepted.
4) Any color and logo will be available.
5) Products can be custom-made according to your design, or diversified needs.
