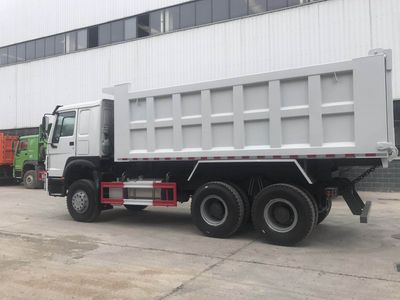

HOWO 6*4 Dump Truck Zz3257n4647
HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
SPECIFICATION | ||||
Dimension(Lx W xH)(unloaded)(mm) | 9470×2496×3450 | |||
Cargo body size (LxWxH) (mm) | 6500x2300x1500 Sand body,Front lifting,Bottom 8 mm, Side 6 mm | |||
Approaching angle/Departure angle(°) | 19/20 | |||
Overhang(front/rear) (mm) | 1500/2295 | |||
Wheel base (mm) | 4625+1350 | |||
Max speed(km/h) | 78 | |||
Curb weight(kg) | 12500 | |||
Engine(Steyr technology, made in China) | Model | WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | ||
Fuel type | Diesel | |||
|
| |||
Emission | EUROII III IV | |||
Fuel tanker capacity(L) | 300L aluminum oil tank | |||
Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Model | ZF8118 | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Tire | 12.00R20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | |||
