Model NO.
SX3254JS384
Seats
≤5
Horsepower
251-350hp
Tire Certification
GCC
Tire Design
Bias
Dumping Type
Front Lifting Style
Condition
New
Axle
Man Axle
Color
Red, White, Yellow
Engine
Weichai Engine
Loading Capacity
30t-50t
Gear Box
Fast Fuller
Truck Type
Dump Truck
Type
Dump Truck
Transport Package
Nude Packing
Specification
Euro Ii
Trademark
Shacman
Origin
China
HS Code
8708309300
Production Capacity
60000units/Year

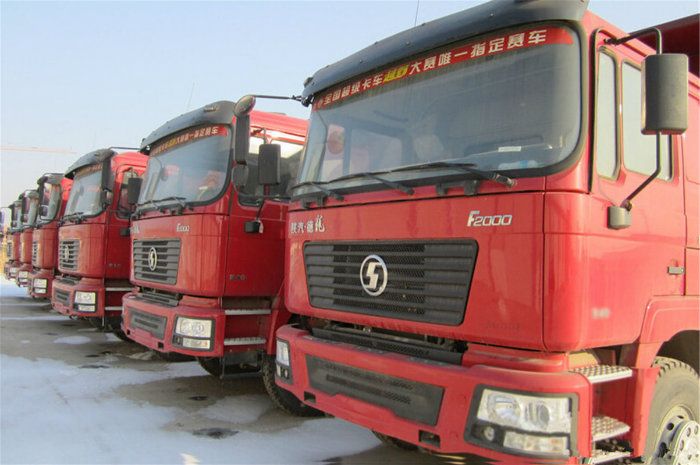

Shacman D'long 6x4 375HP heavy duty Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: MAN cab(normal lengthen series extra widthen with flat head, single sleeping
Engine
Engine brand: Steyr (Weichai)
Engine model: WD12.375 375HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 420HP@2200rpm
Max torque: 1760NM@1300-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh
Gear box
Gear box: Fuller 9JS180-B
Clutch: Φ 430 pull-type diaphragm clutch
Steering: Z F technology
Tyre
Tyre: 12.00R24
No. Of tyre: 10+1spare
Front axle: Steyr 6.5 ton front axle
Rear axle: MAN technology 16 ton double reduction driving axle
Body:
Capacity: 20.01CBM
Thickness of body steel(mm): Floor 8 mm side & back 4mm
Tipping type: Front tipping type
Contact us:
Bella
Senior sales manager
Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: MAN cab(normal lengthen series extra widthen with flat head, single sleeping
Engine
Engine brand: Steyr (Weichai)
Engine model: WD12.375 375HP Euro II
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 420HP@2200rpm
Max torque: 1760NM@1300-1600rpm
Bore/Stroke(mm): 126/155
Specific fuel consumption: 198g/Kwh
Gear box
Gear box: Fuller 9JS180-B
Clutch: Φ 430 pull-type diaphragm clutch
Steering: Z F technology
Tyre
Tyre: 12.00R24
No. Of tyre: 10+1spare
Front axle: Steyr 6.5 ton front axle
Rear axle: MAN technology 16 ton double reduction driving axle
Body:
Capacity: 20.01CBM
Thickness of body steel(mm): Floor 8 mm side & back 4mm
Tipping type: Front tipping type
Contact us:
Bella
Senior sales manager
| Type | Dump Truck | |||
| Traction Type | 6x4 | |||
| Model | SX3254JS384 | |||
| Brand | SHACMAN | |||
| Driving type | RHD | |||
| Cabin | F2000 lengthen flat roof cabin,one sleeper, air heater | |||
| Engine | Brand | WEICHAI | ||
| Model | WD615.44 EUR2 | |||
| Power | 320hp | |||
| Type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling | |||
| Displacement | 9.726liters | |||
| Max Output | 243kw | |||
| Max torque | 1250NM@1400-1600rpm | |||
| Gear box | 9JS135 | |||
| Clutch | 430 diaphragm type | |||
| Steering | Z F technology | |||
| Axle | front | 7.5t MAN | ||
| rear | 13t STR, double reduction drive axle ration:5.73 | |||
| Tyre | 11.00-20 | |||
| Frame(mm) | 850×300×(8+7) | |||
| Fuel tank capacity (L) | 380 | |||
| Max. Speed (km/h) | 77 | |||
| Kerb Mass | 11200kg | |||
| Total mass | 25000kg | |||
| Wheel base(mm) | 3800+1350 | |||
| Front overhang (mm) | 1525 | |||
| Rear overhang (mm) | 1600 | |||
| Front track (mm) | 1939 | |||
| Rear track(mm) | 1800 | |||
| Approach angle | 16degree | |||
| Departure angle | 66degree | |||
| Dimension of box(mm) | 5200x2300x1500 | |||
| Size of truck | 8275x2490x3300 | |||
