Model NO.
XGA3250D2WC
Seats
≤5
Horsepower
251-350hp
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Dumping Type
Front Lifting Style
Condition
New
Transport Package
Nude Package
Specification
8638*2500*3307mm
Trademark
Top Brand
Origin
China
HS Code
8701901190
Production Capacity
50units/Month
Transmission Type:
Automatic
Power:
Diesel
Load Capacity:
41-50t
Emission Standard:
Euro 2
Drive Wheel:
6×4
Engine Capacity:
＞8L

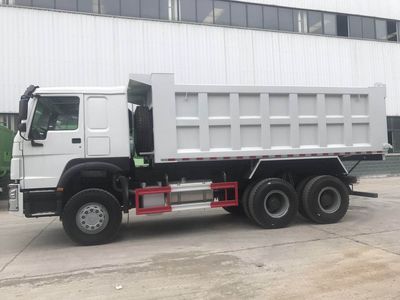

6X4 Mine Dump Truck RC Dump Truck Price Xga3250d2wc
Dimensions(mm) | Overall size (length×width×height) | 8638×2500×3307 |
Cargobody size (length×width×height) | 5800×2300×1300 | |
Wheelbase | 3800+1400 | |
Wheel tread (Front/Rear) | 2060/1860 | |
Min. ground clearance | 281mm | |
Weight(kg) | Kerb mass | 15620kg |
Gross vehicle weight | 55620kg | |
Rated loading capacity | 40000kg | |
Performance | Max. travel speed | 79km/h |
Min. turning diameter | 17m | |
Max. gradeability(%) | 20% | |
Approach angle | 23° | |
Departure angle | 25° | |
Engine | Brand | SINOTRUK engine |
WD615.47, water-cooling, turbocharging and intercooling, Euro emission standard, direct injection diesel | ||
Rated output at 2,200rpm | HP(371kw) | |
Max. torque at 1400r/pm | 1460N.m | |
Transmission | Brand | FAST |
Type | 9JSD150A | |
Wheels rim& Tyres | Rims | 8.50V-20 |
Tyres | 12.00R20 | |
Electric System | Negative grounded | |
Operating voltage | 24V | |
Alternator | 70A/28V | |
Batteries | 6-QAW-165 | |
Fuel tank | Capacity | 400L |
-------------------
