Model NO.
XDA45
Drive Wheel
6×4
Engine Capacity
＞8L
Seats
≤5
Horsepower
451-500hp
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Dumping Type
Front Lifting Style
Condition
New
Max.Weight
40000kg
Max.Speed
85km/H
Horse-Power
350kw
Cargo Tank Dimension
5600*2300*1500mm
Transport Package
Nude Package
Specification
10690*3370*3793mm
Trademark
SINOMADA
Origin
China
HS Code
8704230090
Production Capacity
250nits/Month
After-sales Service:
Free Spare Parts
Warranty:
1 Year
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
31-40t
Emission Standard:
Euro 3

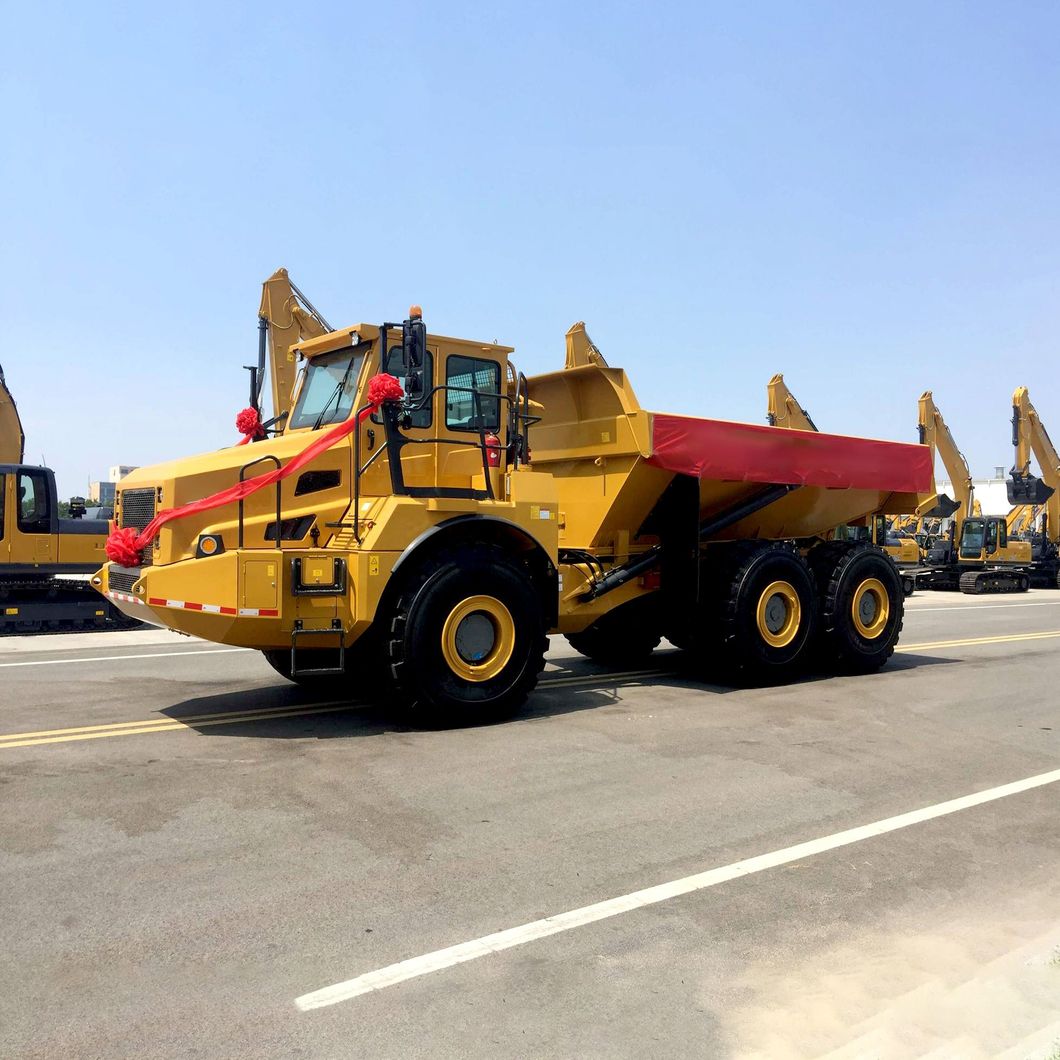

Famous Brand Articulated Dump Truck XDA45 Mining Truck with 45ton Rated Load Capacity
* High Performance Engine The combination of strong power and outstanding vehicle performance provides higher productivity with less cost.
*Reliable Brake System XDA40 adopts self oil cooled disc brakes system, ensure this Vehicle highly reliable and long lifetime.Even in the muddy road, XDA40 also function as a highly responsive. The large-capacity, continuously cooled, wet-multiple disc brakes also function as a highly responsive retarder which gives the operator greater confidence at higher speeds when travelling downhill.
Item | Unit | Parameter | ||
Dimension | Overall Length | mm | 10690 | |
Overall Width | mm | 3370 | ||
Overall Height | mm | 3793 | ||
Wheelbase front-mid | mm | 4450 | ||
Wheelbase mid-rear | mm | 1940 | ||
Tire center distance | Front | mm | 2600 | |
Mid & Rear | mm | 2600 | ||
Weight | Total Weight | kg | 73000 | |
Payload | kg | 39000 | ||
Curb Weight | kg | 34000 | ||
Weight Distribution | Unload | Front | kg | 17000 (50%) |
Mid & Rear | kg | 17000 (50%) | ||
Loaded | Front | kg | 21600 (29.6 %) | |
Mid & Rear | kg | 51400 (70.4%) | ||
Power Train | Engine | / | / | |
Rated Power | kW/HP/rpm | 350/1800 | ||
Max Torque | Nm/rpm | 2300/1300 | ||
Drive | / | 6×6 | ||
Tires | / | 29.5R25 | ||
Driving Performance | Max speed | km/h | 60 | |
Min Turning Clearance | mm | 8865 | ||
Max Grade ability | % | 45 | ||
Max Steering Angle | ° | ±45 | ||
Minimum Ground Clearance | mm | 565 | ||
Working Parameter | Loading Height | mm | 3180 | |
Hoist Time | s | 12 | ||
Hoist Angle | ° | 70 | ||
Service Capacities | Fuel | L | 550 | |
Hydraulic Oil | L | 300 | ||
Engine Oil | L | 60 | ||
Cooling system | L | 240 | ||
Axles-Wheel Gear Oil (Each) | L | 11.5 | ||
Axles-differential (Each) | L | 33 | ||
Body | Struck | m3 | 17.5/18.5 | |
2:1Heaped | m3 | 22.9/24 | ||
