Model NO.
ZZ3257N3847A
Seats
≤5
Horsepower
351-450hp
Tire Certification
ECE, GCC, ISO
Tire Design
Radial
Dumping Type
Side Dumping Style
Condition
New
Overall Dimension
8500*2500*3450mm
Body Volume
16cbm
Carriage Type
Option
Wheelbase (mm)
3800+1350
Max. Speed (Km/H)
90
Max. Grade Ability
35%
Kurb Weight (Kg)
12500
Rated Load (Kg)
30000-40000
Engine
Wd615.47
Suspension
Leaf Spring Suspension
Drive Brake
Drum
Nominal Voltage
24V
Transport Package
Wax Before Shipping
Specification
In nude
Trademark
Sinotruk
Origin
Shandong, China
HS Code
8704230090
Production Capacity
500 Units Per Year

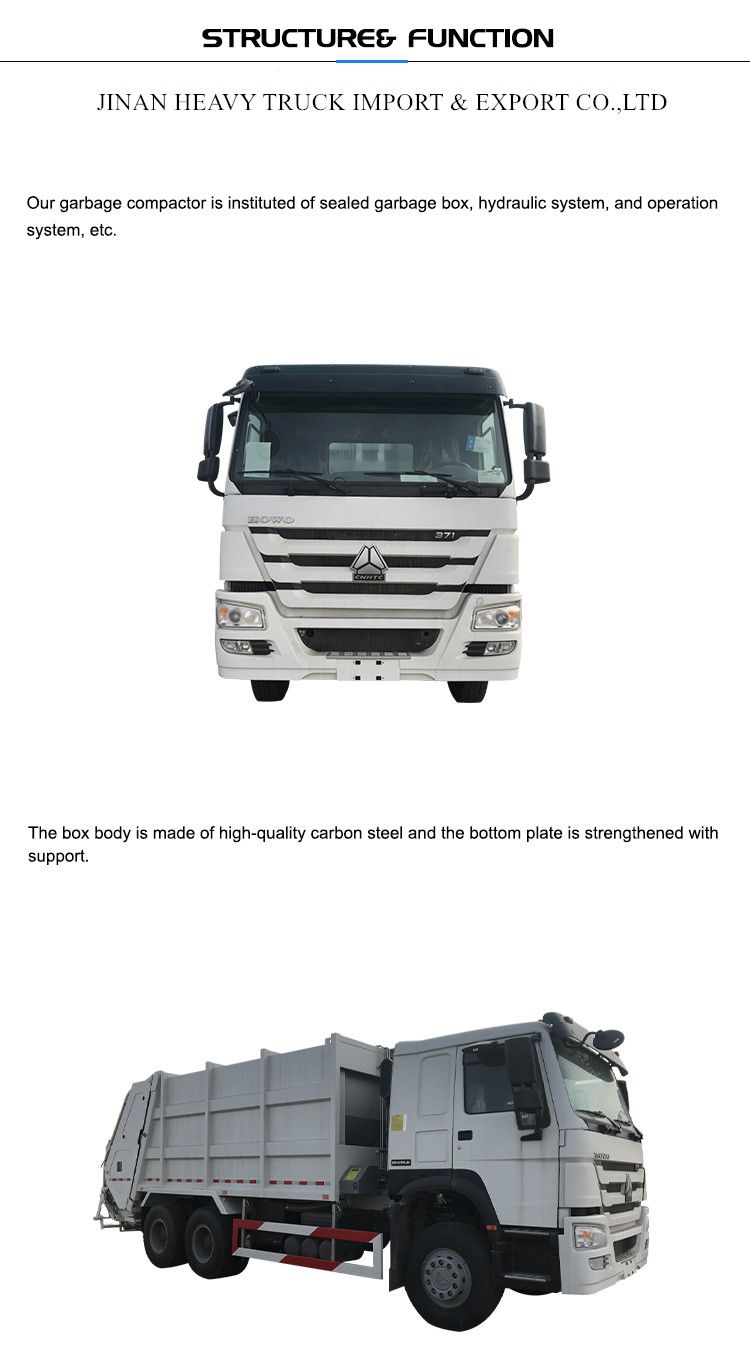

ZZ3257N3847A The garbage truck has the characteristics of high degree of automation such as loading and unloading garbage, reliable working, good sealing, large loading capacity, simple operation, closed operation process, no leakage of sewage and odor distribution, good environmental protection and so on. ZZ3257N3847A howo tipper truck is equiped with WD615 series engine,The engine power is from 336HP to 371Hp,The compartment length is 5.6 meters,Width is 2.3 meters,Max. Driving Speed is 75 km/h, Gearbox is HW19710.| Howo 6x4 garbage truck | |||||
| No. | Model | Driving type | Engine output | Body volume(m3) | |
| 1 | ZZ3257N3847A | 6×4 | 371hp | 16 | |
| MAIN SPECIFICATIONS | |||||
| Chassis Model | ZZ3257N3847A | Gross Vehicle Weight | 16000kg | ||
| Engine | Brand SINOTRUK | Dead Weight | 9840kg | ||
| WD615.47 Euro II | Tyres | 12.00R20 Radial tyre | |||
| Maximum Output | 371HP | Cab | HW76 1 sleeper Air-condition | ||
| Rated engine power | 196/2200 | Rated loading capacity | 15000kg | ||
| Transmission | HW19710 10forward & 2reverse | Volume of filler(m3) | 2.5 | ||
| Front Axle | SINOTRUK Model:HF9 | Time of one loading cycle | ≤30s | ||
| Max.loading:9000kg | Time of one disloading | ≤60s | |||
| Rear Axle | SINOTRUK Model: HC16 | Pressure of fluid system | 20Mpa | ||
| Max.loading:32000kg | Max compression force | >25000 | |||
| Steering | ZF8118 | Front,rear capacity of drain tank | 200L+150L | ||
| Overall Dimension(mm) | 8500×2500×3290 | ||||
