Seats
≤5
Horsepower
95HP
Tire Certification
ISO, DOT
Tire Design
Radial
Dumping Type
Middle Lifting
Condition
New
Gvw
5000kg
Clutch
430 Diaphragm Spring
Front Axle
1.8ton
Warranty
1 Year
Steering
400L
Cargo Thickness
Side Plate 3mm; Floor 4mm
Cab
One Row Cab, Tilted
Kerb Mass
2600kg
Wheel Base
3300mm
Gearbox
5 Forward & 1 Reverse, Manual
Rear Axle
3.5ton
Tyre
7.00r16, 6+1PC
Cargo Box
4000*2200*800mm
Lifting Style
200 Hydraulic Front Lifting Cylinder
Transport Package
Naked, Waxed, Bulk Ship, RO-RO
Specification
5995*2400*2750mm
Trademark
CLW
Origin
Suizhou, China
HS Code
8705909090
Production Capacity
500 Unit/Month
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
1-10t
Emission Standard:
Euro 3, Euro 4, Euro 5
Drive Wheel:
4×4
Engine Capacity:
3.856L

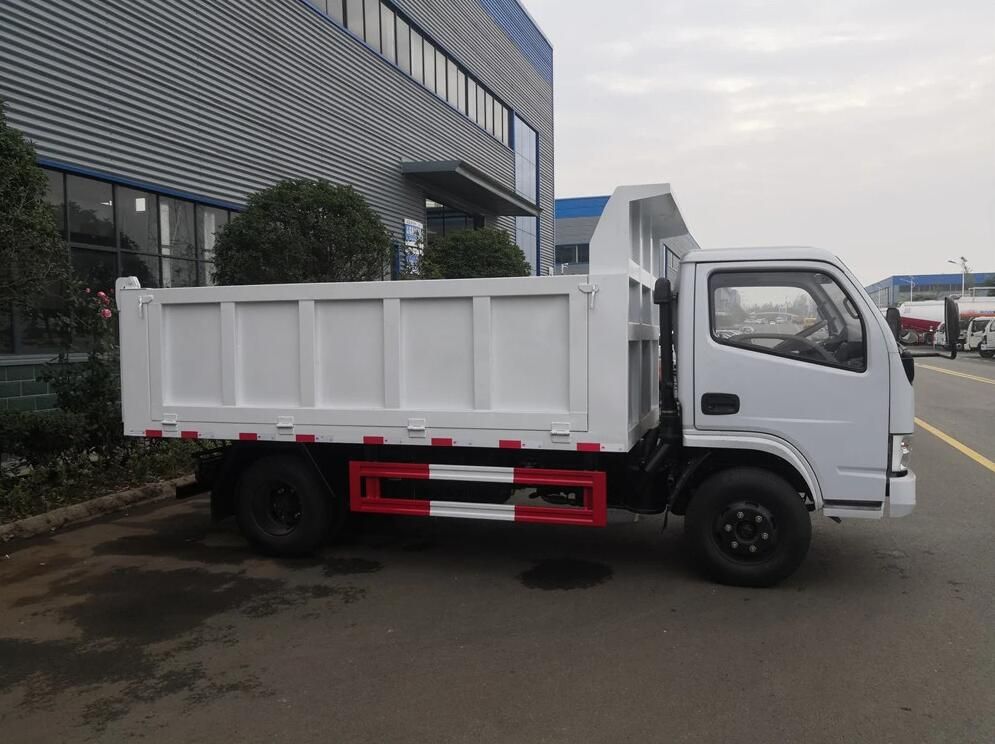

Dongfeng Kingrun 4X2 160HP Euro 4 Mini Dump Truck Cheap Diesel Cargo Lorry Tipper Trucks for Sales
Product Description
1) Truck chassis brand dump truck: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Modeldump truckk: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand dump truck: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia dump truck: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.
Specification dump truck
| Dongfeng RHD 4x4 3tons 4tons 5tons mini dump truck tipper truck with cheap price | ||
| GVW 7360kg Driving Type 4x4 | ||
| Model | CLW5060 | |
| Cab | One row cab, tilted | |
| Engine(Hp) | 95 | |
| Power(Kw) | 70 | |
| Wheelbase | 3300 | |
| Front/Rear Suspension | 1040/1152 | |
| Steering | Power steering | |
| Approach/departure angle | 20/26 | |
| Wheels & tire | 7.0R16 | |
| Tire number | 6+1 | |
| Tank Dimensions(mm) | 3600×1800×600,800 | |
| Cubage (m3) | 4/5 | |
| Steel thickness | Side 3 ,Bottom 4 | |
| RHD or LHD | RHD | |
| Overall Dimensions(mm) | 5500×2000×2300 | |
| Curb weight (Kg) | 4000 | |
| Engine | Model | CY4102-C3F |
| Horsepower | 95 | |
| Maximum output Kw | 70 | |
| Maximum torque N.m | ||
| Type | 4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | |
| Displacement | 3.856L | |
| Chaoyang brand, Euro 3 | ||
| Driving passenger | 2,3 | |
| Transmission | 5 speed forward and one reverse, manual | |
| Front Axle | 1.8T | |
| Rear Axle | 3.5T | |
| Brake System | air brake | |
| exhaust brake | ||
| Color and LOGO | customized | |
| Electric system | 24V | |
| Standard configuration | The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm. | |
| Delivery date | Within 20 days after receipt advance | |
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |
