Model NO.
CQ3314HTG336
Seats
≤5
Horsepower
351-450hp
Tire Certification
ECE, GCC, ISO
Tire Design
Radial
Dumping Type
Front Lifting Style
Condition
New
Loading Capacity
25-40 T
Brand
Iveco Tipper Truck
Engine
Cusor
Transport Package
Nude
Specification
8X4 TIPPER
Trademark
IVECO
Origin
China
HS Code
8704230090

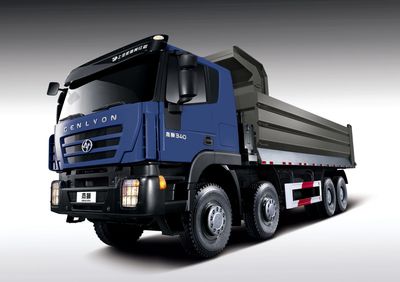

SAIC-IVECO tipper truck with 30-40 ton loading capacity
| Specification | IVECO GENLYON 8X4 DUMP TRUCK | |
| Chassis Model | CQ3314HTG306 | |
| Drive | 8X4, left hand drive | |
| Engine | Model | C9 340 |
| Maximum output | 340 Hp | |
| Emission | Euro III | |
| Torque | 1300 N.m | |
| Displacement | 8.7 L | |
| Make | IVECO CURSOR | |
| Gearbox | Model | FULLER 12JSD180T |
| Gear | 12 Forward & 2 Reverse | |
| Speed ratio | 15.53, 12.08, 9.39, 7.33, 5.73, 4.46, 3.48 2.71, 2.1, 1.64, 1.28,1.00, 14.86(R1) 3.33(R2) | |
| Rear/Driving Axle | Model | SHI hub reduction axle,16000KG/Unit |
| Speed ratio | 5.73 | |
| Tire | 12.00R20 | 12+1 pcs |
| Cabin | M3 Cab, flat ceiling,2 seat standard cabin | |
| Dump box dimension | 6500X2300X1500MM,bottom 8MM,side 6MM | |
| Fuel tank volume | 400 L | |
| Whole vehicle parameter | Overall dimension | 9185X2500X3510 MM |
| Wheelbase | 1800+2975+1350 MM | |
| Curb weight | 14920 KG | |
| Rated loading weight | 25000 KG | |
| Gross vehicle weight | 39920 KG | |
| Maximum speed | 80 KM/h | |
