Model NO.
20m3 Oil Tank Truck
Seats
≤5
Horsepower
251-350hp
Engine Capacity
＞8L
Storage
Oil
Tire Certification
ISO
Tire Design
Radial
Condition
New
Cab
Hw76
Gearbox
Hw19710
Axle
Front : Hr9 Rear: Hc16
Tank Body Thickness
5mm
Oil Tank Dimension
8500*1800*1470mm
Steering
Zf8118
Tyre
12.00r20 Radial Tyre 12+1 Spare
Fuel Tank
400L
Overall Dimension (Lxwxh)
9800*2496*3215mm
Max Speed (Km/H)
102
Transport Package
Nude Packaging
Specification
20000L
Trademark
SINOTRUK
Origin
Shandong, China
HS Code
8716311000
Production Capacity
5000units /Month
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
11-20t
Emission Standard:
Euro 2
Tank Volume:
15001-30000L
Drive Wheel:
6×4

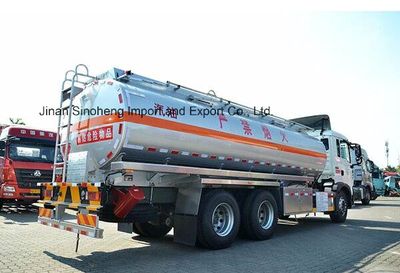

New SINOTRUK HOWO 6X4 Heavy Duty Oil Tank Truck 20000L
SINOTRUK is China Top brand heavy duty truck manufacturer , exporting trucks to Africa , Asia , Europe , South America , Mid-East countries and also get very good feedbacks from our clients . SINOTRUK has HOWO , HOHAN , GOLD PRINCE etc series , but HOWO series is our best selling products . including howo dump trucks , howo tractor trucks , howo mixer truck and howo oil tank trucks etc .
| Sinotruk | 6X4 | ||
| Cab | Sinotruk HW76 cab (single sleeper); 4-point hydraulic suspension and shock absorption hydraulic high back seat; Germany VDO dash board,4 way adjustable wheel; air conditioner; sun visor; electronic controlled window; cup carrier,etc | ||
| Engine | Model | WD615.87 | |
| Feature | Diesel, 4-stroke direct injection, 6 cylinder in line, inter cooling, turbo-charging. | ||
| Displacement (L) | 9.726 | ||
| Power | 290hp/213kw | ||
| Rated speed (rpm) | 1100~1600rpm | ||
| Torque (N.m) | 1160 | ||
| Emission | Euro 2 | ||
| Gearbox | Model | HW19710 | |
| Shift mode | 10 forwards,2 reverses , manual operation | ||
| Axle | Front | HR9.,9 tons | |
| Rear | HC16,16 ton | ||
| Oil tank main Frame (with bottom valve) | Tank body thickness: | 5mm, | |
| Fore &back side Head thickness | 5mm steel plate | ||
| Cubage (m³) | 20 | ||
| Dimension | 8500×1800×1470 | ||
| Flow meter | 2 sets | ||
| Oil bunker | 4pcs | ||
| self-priming pump | 2 sets | ||
| Steering | ZF 8118. Left hand driving | ||
| Tyre | 12.00R20 radial tyre 12+1 spare | ||
| Clutch | 430 Diaphragm type, single dry frictional disc, hydraulic boosting | ||
| Fuel tank | 400L | ||
| Overall Dimension (LxWxH) | 9800x2496x3215 | ||
| Wheel base (mm) | 4325+1350 | ||
| Curb weight (kg) | 10870 | ||
| Chassis (mm) | 8+8/300 | ||
| Front overhang/Rear overhang (mm) | 1500/2625 | ||
| Front wheel track (mm) | 2022 | ||
| Rear wheel track (mm) | 1830/1830 | ||
| Approach angle/Departure angle (°) | 16/15 | ||
| Max speed (km/h) | 102 | ||
Shipping Way : By RO-RO or Bulk Cargo Ship , Special Container, will according to client's requirements .
Delivery Time : 20 days of working after the supplier receive the buyer's deposits .
Payment Terms : LC or TT . 100% LC at sight or 30% TT as deposits and 70% TT before shipment .
Warranty : 12 Months .
Advantages:
1. Independen separated compartments, can load materils, pump-in , Pump- Out with oil meter or without. Downgrade flow with oil meter or without. Thermal heating device is optional.
2. Lingt weight design, high-quality tank material, capacious, high transport effciency , high safety.
3. Alumunum alloy tube, no pollution to oil .
4. Bottom-mount options: oil vapor recycle system, anti-overflow system.
5. Reasonable matching, stable quality, reliable prefromance, high performance cost ratio .
