Seats
≤5
Horsepower
＜150hp
Engine Capacity
＜4L
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Condition
New
Brand
Taga, D-Max
Function
Pick up
Transport Package
Nakes
Trademark
ISUZU TAGA
Origin
China
Production Capacity
50000/Year
Type:
Flatbed Style
Transmission Type:
Manual
Emission Standard:
Euro 5
Load Capacity:
1-10t
Power:
Diesel and gasoline
Drive Wheel:
4×4

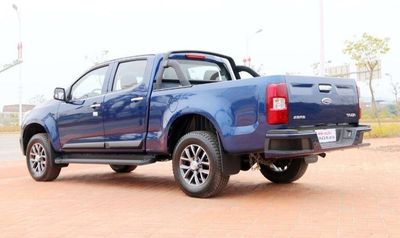

NEW SERIES CHINA ISUZU TAGA PICK UP TRUCK WITH 4X4 DRIVE,DIESEL AND GASOLINE VERSION;
1. PIC
2. ISUZU TAGA NEW DIESEL PICK UP 4X4 DRIVE
Technical Data
1. PIC
2. ISUZU TAGA NEW DIESEL PICK UP 4X4 DRIVE
Technical Data
| 1 | Model Series | TAGA | |
| 2 | Model Number | QL1030CDHW2 | |
| 3 | Application | Pick up | |
| 4 | Drive type | 4 x4 | |
| 5 | Kerb Weight(kg) | 2050 | |
| 6 | Gross Vehicle Weight(kg) | 3175 | |
| 7 | Rated weight(kg) | 800 | |
| 8 | Overall Dimension(mm) | 5660x1885x1825 | |
| 9 | Body inner length(mm) | 1800×1540×480 | |
| 10 | Wheelbase(mm) | 3406 | |
| 11 | Minimum ground clearance(mm) | 215 | |
| 12 | Cabine | Double row cabin, Left-Hand drive, with air conditioner, power steering, 2+3 passengers(with driver) | |
| 13 | Engine Type | 4 cylinder in line, Turbo intercooler, common rail direct injection, Diesel engine | |
| 14 | Engine Model | 4KH1CT5H1 | |
| 15 | Engine Output (HP/KW) | 130hp/96kw | |
| 16 | Max.Torque(N.m/rpm) | 280/1800 | |
| 17 | Max Speed(km/h) | 140 | |
| 18 | Gearbox | 5 forward gears and 1 reverse, manual control | |
| 19 | Brake(Front/rear) | Front disc brake, Rear drum brake, hydraulic-type booster,with ABS | |
| 20 | Front/Rear suspension(mm) | 945/1309 | |
| 21 | Displacement(L) | 2.999 | |
| 22 | Emission STD | Euro 5 | |
| 23 | Tyre | 245/70R17 | |
| 24 | Fuel tank | 76L | |
