Model NO.
CLW5160GYY-5
Seats
≤5
Horsepower
251-350hp
Engine Capacity
4-6L
Storage
Light Fuel Such as Gasoline, Diesel or Kerosene
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Tubeless
Condition
New
Product Name
Fuel Tank Truck, Tanker Truck, Fuel Tanker
Engine
Wp10.270e32
Exhaust(Ml)
7780
Volume of Tank
15m3
Material of Tanker
Carbon Steel, Stainless Steel, Aluminum Alloy
Tire
12.00r20
Overall Dimension
8500*2480*3100
Chassis Brand
HOWO, DFAC, Isuzu, Foton, Shacman
Max Torque(N.M)
1100
Horse Power(HP)
270
Transport Package
by Bulk Ship, RO-RO Ship, Container
Specification
8015x2450x2980
Trademark
CLW
Origin
China, Hubei
HS Code
8705909990
Production Capacity
5000 Units/Year
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
3-30ton
Emission Standard:
Euro 2, Euro 3, Euro 4
Tank Volume:
3-30m3
Drive Wheel:
4*2, 4*4, 6*4, 8*4

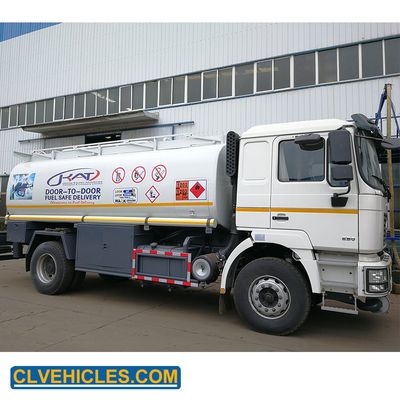

Shacman 15m3 Fuel Tanker Delivery Truck Fuel Tank Truck Fuel Tanker
| Truck Specification | |||
| Chassis model | CL0160YGC | ||
| Cab | single row cab, with power steering. | ||
| Driving Type | 4*2 Left hand driving | ||
| Max Speed (km/h) | 99 | ||
| Overall dimension(mm) | 880*2480*3100 | ||
| GVW( kg) | 16000 | ||
| Mass in working order ( kg) | 7805 | ||
| Tank Capacity (L) | 12000 | ||
| Wheelbase(mm) | 4600 | ||
| F/R track base (mm) | 1900/1800 | ||
| F/R overhang (mm) | 1205/2905 | ||
| Approach/Departure Angel | 25/14 | ||
| Tire | 12.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Gear box | 6-speed | ||
| Bridge | Front axle | MAN 7.5T | |
| Rear axle | MAN 13T | ||
| Enging | Model | WP10.270E32 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 9726 | ||
| Max output power/rotate speed (hp /rpm ) | 270 | ||
| Max torque/rotate speed(N.m/rpm) | 1100 | ||
| Braking system | Service Brake | Compressed air brake | |
| Park Brake | Spring energy | ||
| Auxiliary brake | engine exhaust brake | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Volume of tank | 15m3 | ||
| Tank shape | Quadrate | ||
| Material of tanker | 5mm carbon steel | ||
| Color of the tanker | According your demands | ||
| Equipment | Oil pump | ||
| Transport medium | Diesel oil, gasoil or others | ||
| Fittings | PTO oil pump | ||
| An aluminum alloy European standard manhole | |||
| Fuel hose box fitted on both side of tank | |||
| An aluminum alloy sea valves | |||
| Two Fire extinguisher | |||
| One spare tyre | |||
| Ladder: For access to top of tank complete with cat walk on top of tank | |||
| Heavy-duty rear bumper | |||
