Model NO.
fuel tanker truck
Tank Volume
5001-10000L
Drive Wheel
6×4
Seats
≤5
Horsepower
251-350hp
Engine Capacity
4-6L
Storage
Oil
Tire Certification
ISO
Tire Design
Tubeless
Condition
New
Transport Package
Nude
Specification
10350*2496*3048 mm
Trademark
SINOMADA
Origin
Hunan, China
Production Capacity
100 Sets Per Month
After-sales Service:
1 Year
Warranty:
1 Year
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
1-10t
Emission Standard:
Euro 2

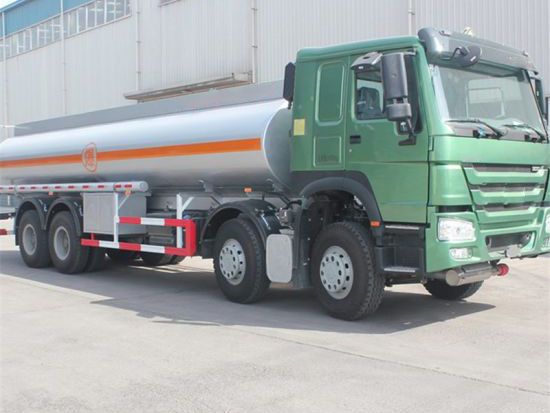

Fuel Truck 6x4 16CBM Oil tanker truck 20CBM fuel tanker with 5 compartment
HOWO76 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Dimension(Lx W xH)(unloaded)(mm) | 10350×2496×3048 | |||
Tanker size(Lx W xH) (mm) | 20CBM oil tanker, with 5 compartment, with pump,fuel pump nozzle,Filling machine(PTO,front Exhaust pipe) | |||
Max speed(km/h)(km/h) | 90 | |||
Engine (Steyr technology, made in China) | Model | WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | ||
Fuel type | Diesel | |||
Power, max(kw/rpm) | 290hp | |||
Emission | Euro II | |||
Fuel tanker capacity (L) | 400 | |||
Transmission | Model | HW13710,10 forward&2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Z F | |||
Front axle | HF7 | |||
Rear axle | ST16 | |||
Tire | 295/80R22.5 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
