Model NO.
CLW
Seats
≤5
Horsepower
＜150hp
Engine Capacity
＜4L
Storage
Fresh Milk
Tire Certification
ECE, GCC, ISO, DOT
Tire Design
Bias
Condition
New
Product Name
Dongfeng 8cbm Milk Tank Truck
Dimensions(L x W x H)(mm)
6900X2320X2450
Horse Power(HP)
120
Engine Displacement(Ml)
3856
Transmission
5 Forwards & 1 Reverse
Tank Material
304-2b Stainless Steel
Tank Dimension
3800X1850X1100
Tank Value
8cbm
Thickness of Inner Layer of Tank
4mm
Thickness of Outer Layer of Tank
2mm
Transport Package
Waxed Before Shipment
Specification
CCC, ISO9001
Trademark
CLW
Origin
Hubei, China
HS Code
8705909990
Production Capacity
100units/Month
Transmission Type:
Manual
Power:
Diesel
Load Capacity:
1-10t
Emission Standard:
Euro 3
Tank Volume:
5001-10000L
Drive Wheel:
4×2

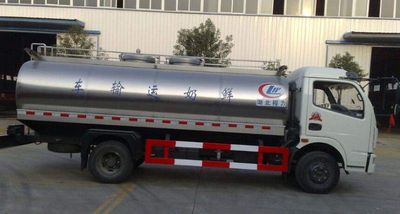

4X2 5m3 Fresh Milk Transport Stainless Steel Tank Mini Truck with Insulation
A potable liquid tank vehicle, including tanker and semi-trailer, is designed to carry fresh water, milk, beer, wine, etc. on the roads for transporting. We provide all sizes of potable liquid truck, semi-trailer, full trailer, etc, with capacities ranging from 2cbm to 60cbm.
Our Service:
1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, ASME, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, including Engine, Gearbox, Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenance in customer's Country.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Important Figures of ChengLi Truck:
3000 Acres(2 million SQM) Factory Premises with New factory Under construction
8000 Workers with Professional Training
300 Different Types of Trucks Available for Choice
300 Million Total Sales Volume for 2014
More Than 10 Years Manufacturing Experience
If you get interested in this milk tank truck or similar products, please keep me posted and offer sheet will be sent to you at once!
A potable liquid tank vehicle, including tanker and semi-trailer, is designed to carry fresh water, milk, beer, wine, etc. on the roads for transporting. We provide all sizes of potable liquid truck, semi-trailer, full trailer, etc, with capacities ranging from 2cbm to 60cbm.
| The Parameters of 5000 Liters Milk Tank Truck | |
| Overview | |
| Name | 5000 Liters Milk Tank Truck |
| Dimension(LxWxH) | 7000x2300x2650 (mm) |
| Total Mass | 8495Kg |
| Rated Payload | 5000Kg |
| Curb Weight | 3495Kg |
| Passenger | 3 |
| Approach/Departure Angle | 24/13 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng/EQ1070TJ9AD3 |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Seven speed lever with six speed forward and one reverse, manual |
| Front/Rear Track | 1835/1640(mm) |
| Tyre | 8.25 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1180/1715(mm) |
| Leaf Spring Number | 11/9+7 |
| The Parameters of Engine | |
| Manufacturer/Model | Chaocai/CY4102-E3C |
| Rated Power | 95hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3856ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 450N.m |
| Velocity | 2500rpm |
| The Parameters of Tank | |
| Color/LOGO | Customizable |
| Material | 5mm Stainless steel 304-2B |
| Function | Transporting potable liquid such as fresh milk, fresh water, beer, wine,edible oil, etc. |
| Tank | 5m3 |
| Baffle | 2 |
| Ports | 2 (Optional) |
| Thermal Insulation within 24 hours | ≤1ºC |
